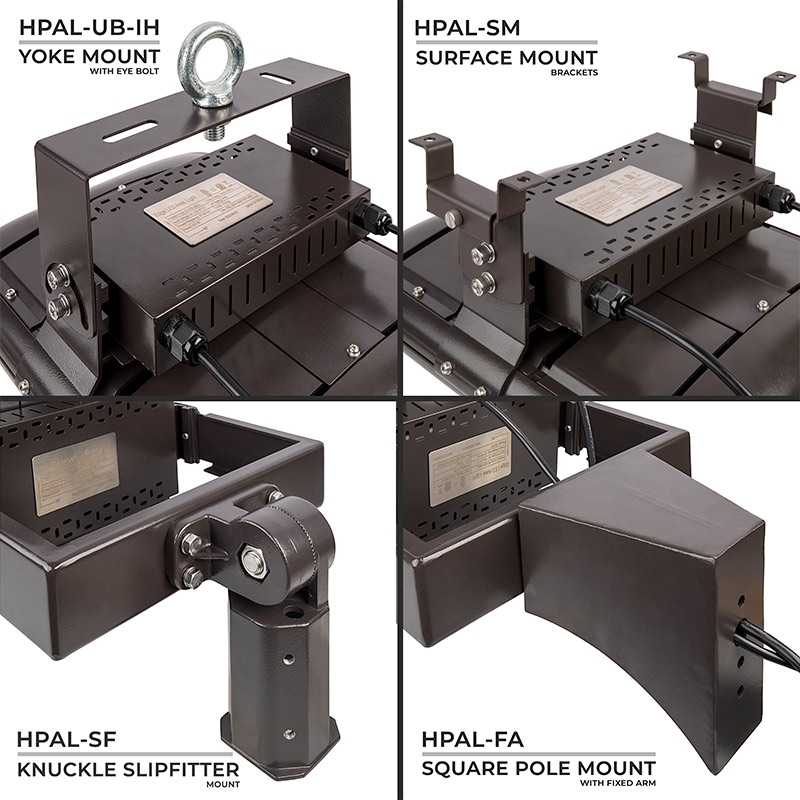

HPAL2 series LED Area Light delivers a high power lumen package for commercial and industrial applications. Precision optics produce a wide Type V flood beam distribution for broad illumination. Independent modular LED engines and driver protect lifespan with improved thermal management. Replace metal halide or HID luminaires with increased energy savings, better efficacy, and a more compact housing Included yoke mount accommodates high bay and floodlight applications, but several other mount options (sold separately) are available for versatile installation solutions.

Product Details:

• 90° beam angle (Type V distribution)
• 6 kV (L-N),10 kV (L/N-GND) integrated surge protection
• Aluminum housing powder coated brown, impact-resistant polycarbonate lens
• Includes steel yoke mount and steel driver cover
• IP66 rated
• IK10 impact resistance
• 70+ CRI
• 5000K
• Operating temperature: -22°–113° F (-30°–45° C)
• DLC 5.1 Premium, ETL Listed

Specifications
Beam Angle:    90°
CRI:     70+
Certifications/Compliance:    DLC Premium, ETL Listed
Current Draw:     1.08 A @ 277 VAC, 2.5 A @ 120 VAC
Dimmable:    Yes
Dimming Type:    1-10V
EPA Rating:    0.609 sq ft
Efficacy:    140 lm/w
Environmental Rating:     Suitable for Wet Locations, Waterproof
Equivalency:    1000 Watt Metal-Halide
Finish:    Brown
IP Rating:     IP66
Impact Resistance:    IK10
Integrated Surge Protection:    10 kV (L/N-GND), 6 kV (L-N)
Intensity:    42000 Lumen
LED Color:    Cool White
Light Distribution:     Type V
Material:    Aluminum Housing, Polycarbonate Lens, Steel Bracket, Steel Driver Compartment
Mount Type:    Yoke Bracket
Operating Temperature:    -30~+45 °C (-22~+113 °F)
Operating Voltage:    100~277 VAC
Photocell:    No Photocell
Power Factor:    ≥0.9
Product Weight:    22lb 1oz (10kg)
Rated Life (L70):    100000 Hours
Type:    Flood Lights
Wattage:    300 Watts
Wattage:    300 Watts
Package Weight: 24lb 7.7oz (11.1kg)
Package Dimensions: 21" (53cm) x 16.5" (42cm) x 8" (20cm)
All specifications are subject to change without notice.
