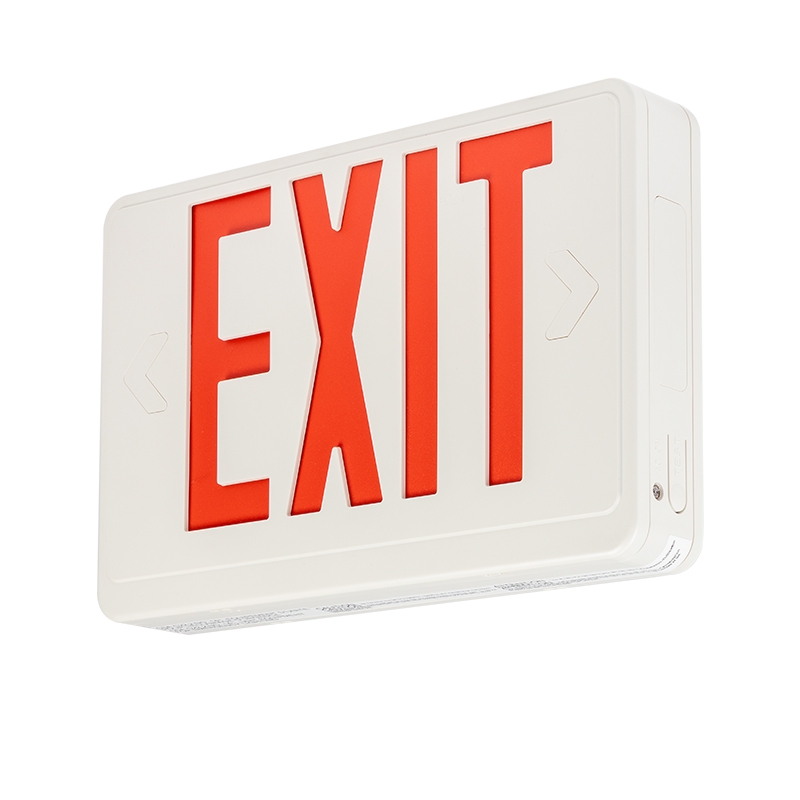

XS2-R Series Exit Sign is a reliable emergency signage solution for retail, commercial, and industrial locations. Red-lighted letters on either one or two sides with changeable faceplate. Built to meet UL 924 standards, the thermoplastic housing is impact resistant, UV stabilized, flame rated. Backup battery provides up to 90 minutes of power in the event of a power outage.

Product Details:

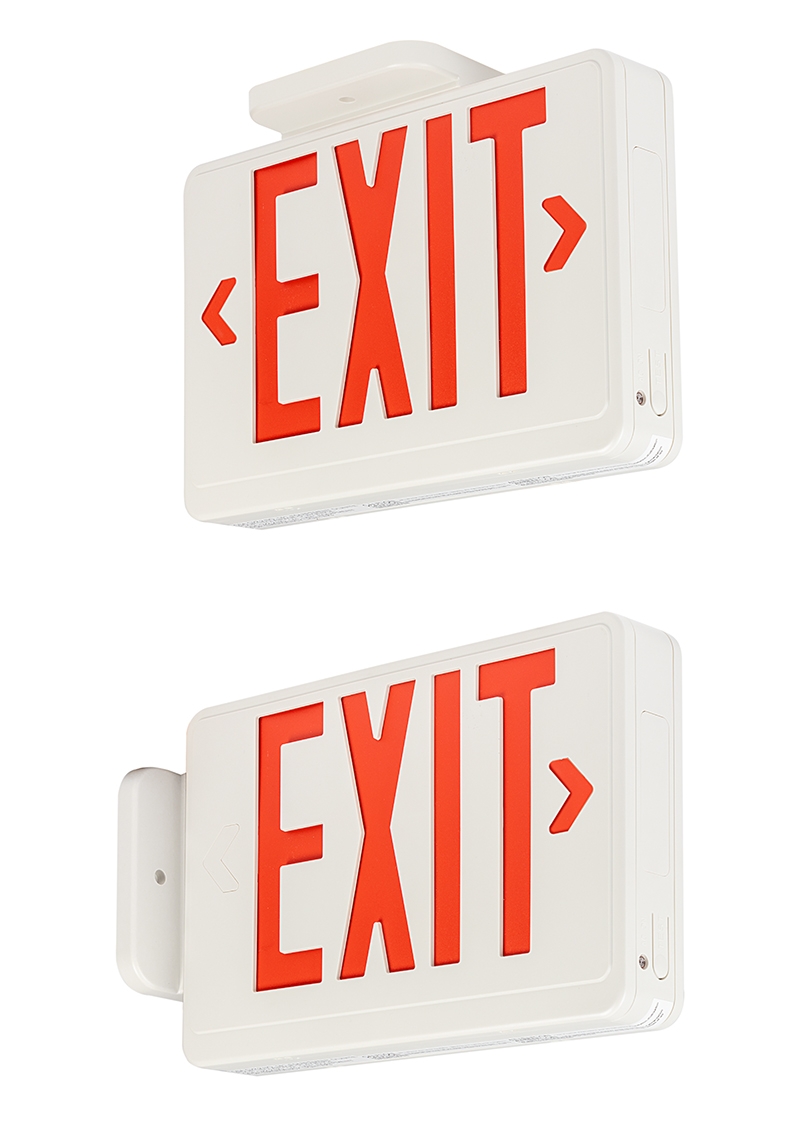

• Easy to remove chevron knockouts

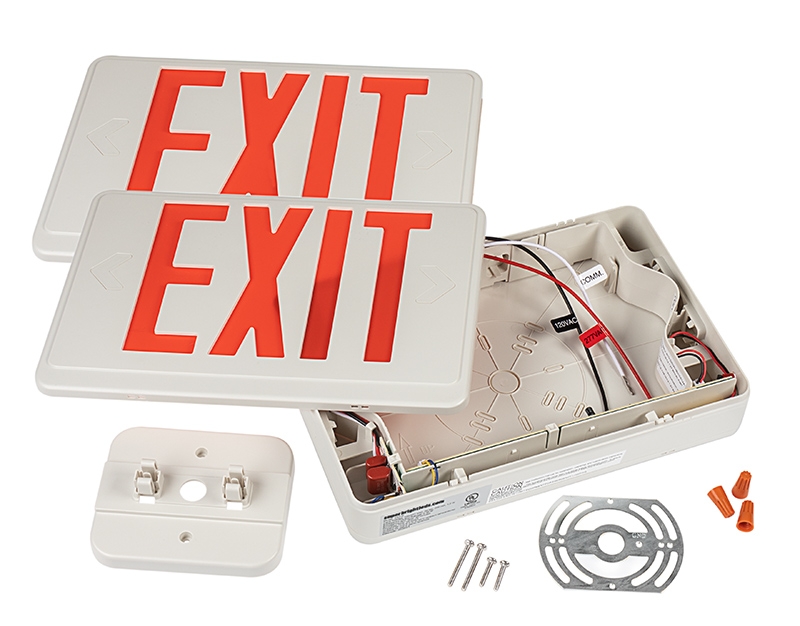

• Canopy included for top or side mounting, mounting hardware included
• Universal J-box mounting

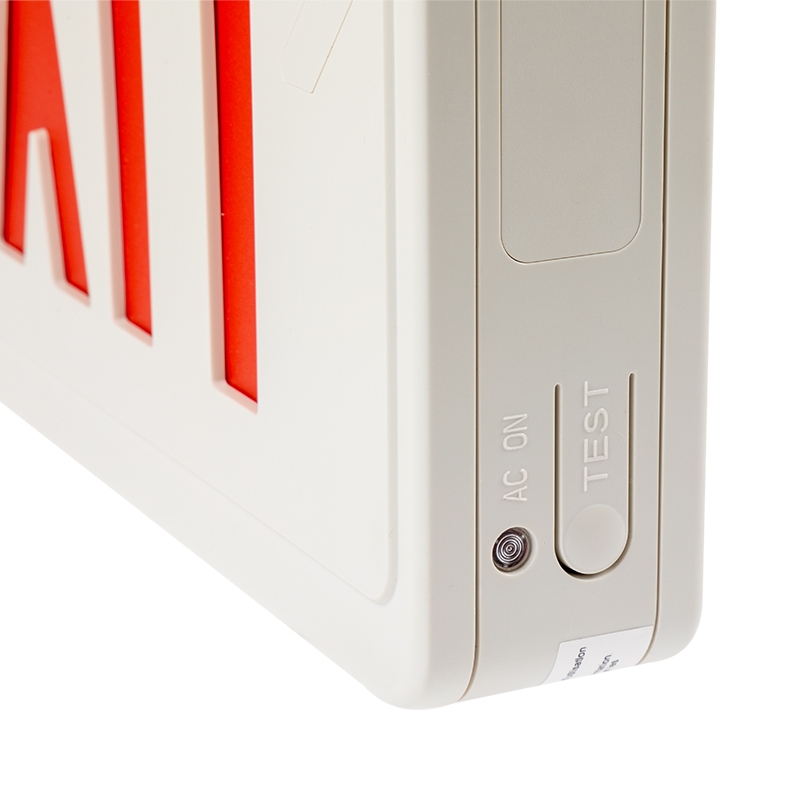

• Test switch and AC-On indicator located externally makes it easy to check operational status
• Suitable for damp locations
• Dual voltage 120 or 277 VAC input
• Lifetime warranty (limited 2-year warranty on battery)

Specifications
Battery Type:    Ni-Cd 1.2V 900mAh
Certifications/Compliance:    UL Listed
Current Draw:     0.03A (30mA)
Emergency Operation Time:    90 Minutes
Environmental Rating:     Non-weatherproof, Suitable for Damp Locations
Finish:    White
IP Rating:     IP20
LED Color:    Red
Material:    Fire Resistant ABS
Operating Temperature:    0~+40 °C (32~+104 °F)
Operating Voltage:    120 VAC, 277 VAC
Product Weight:    2lb 4oz (1.02kg)
Type:    Exit Signs
Wattage:    1.2 Watts
Package Weight: 2lb 7.7oz (1.13kg)

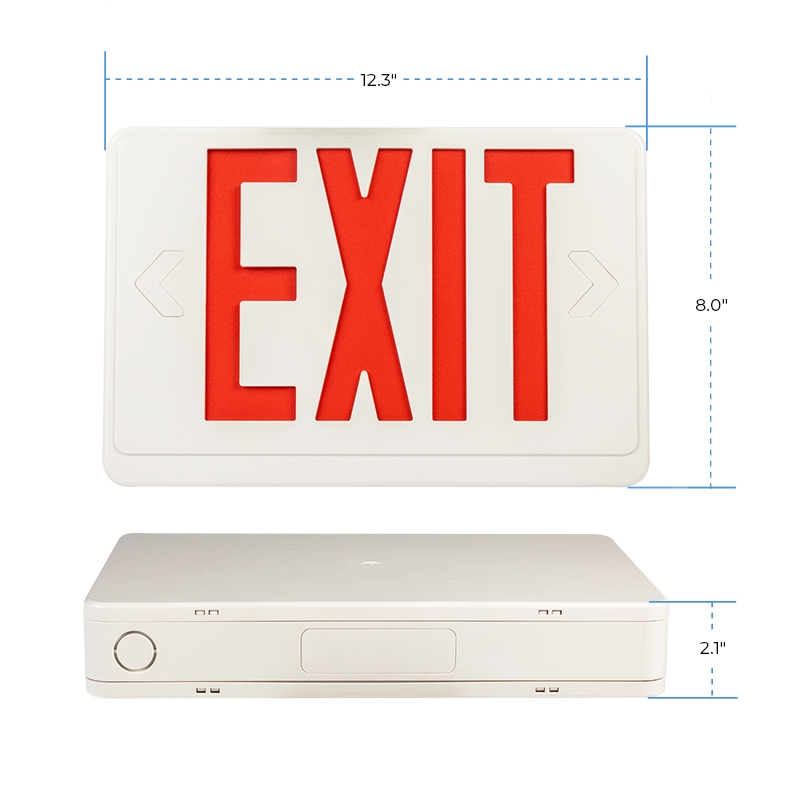

Package Dimensions: 12.25" (31cm) x 8.38" (21cm) x 2.62" (7cm)
All specifications are subject to change without notice.
