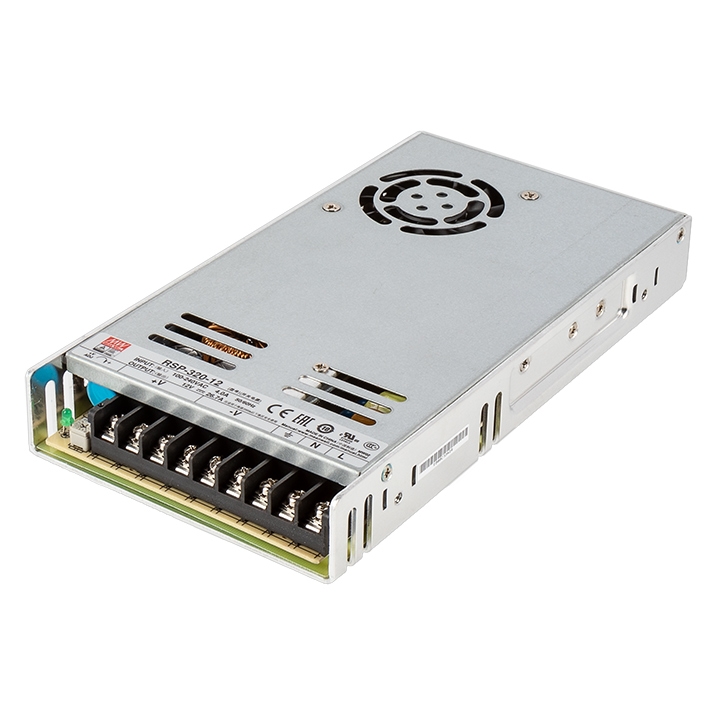

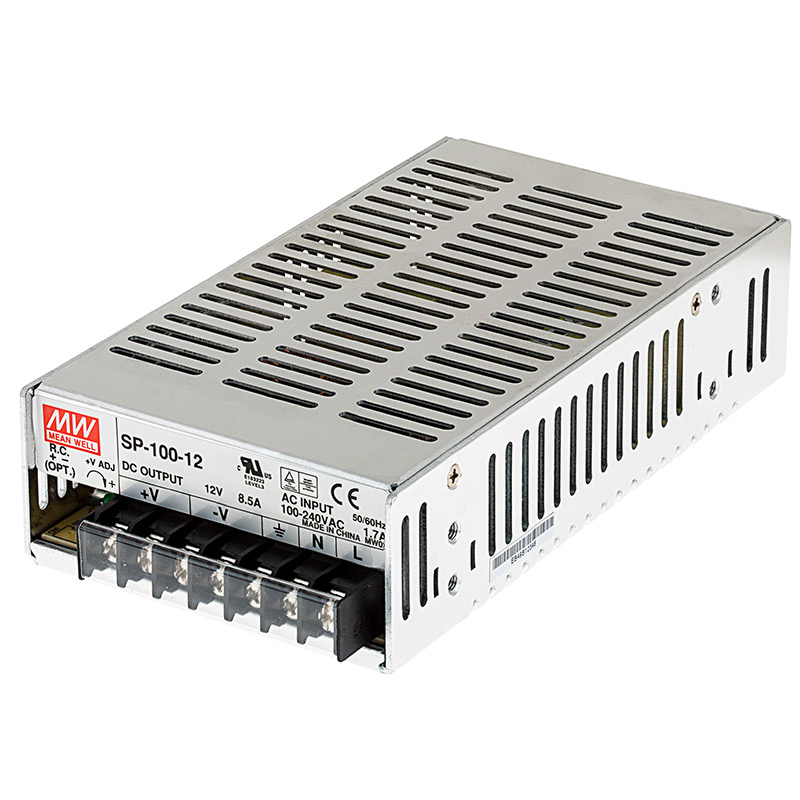

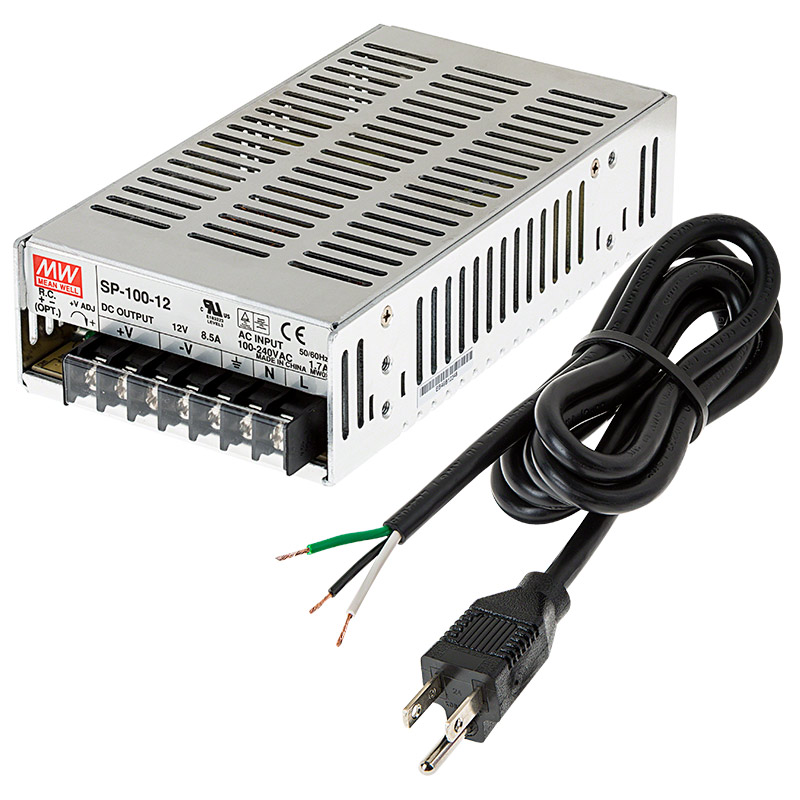

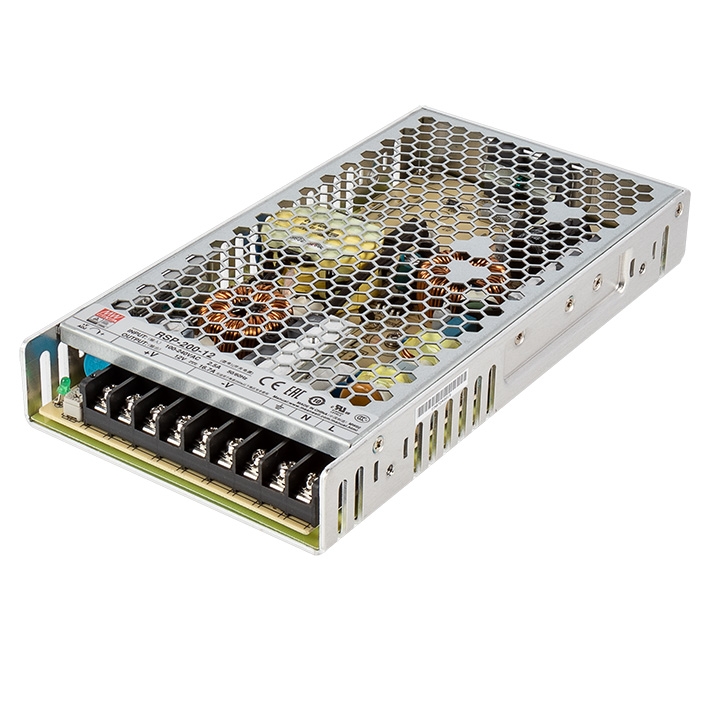

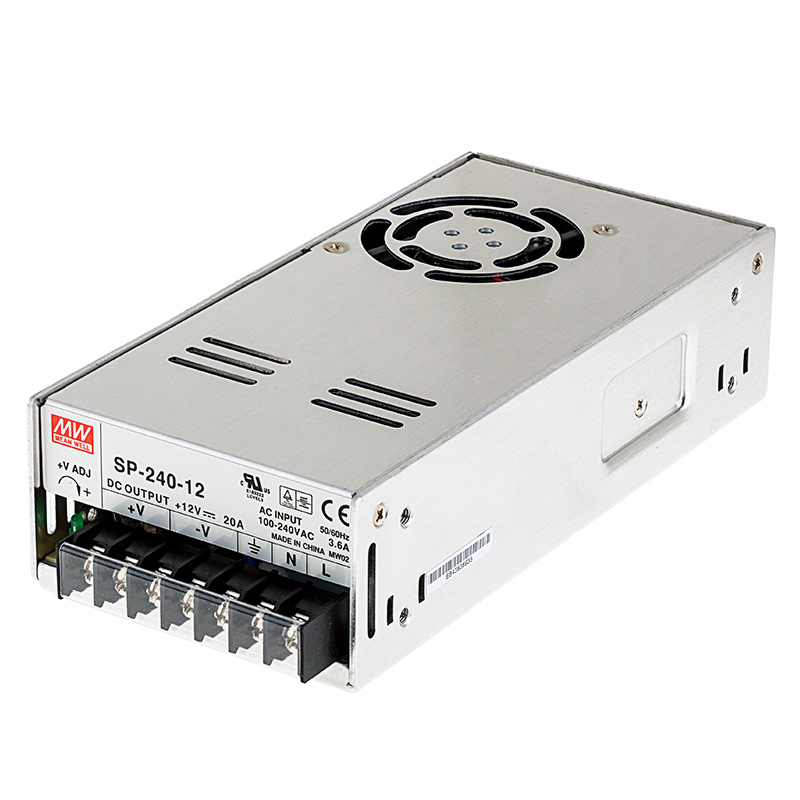

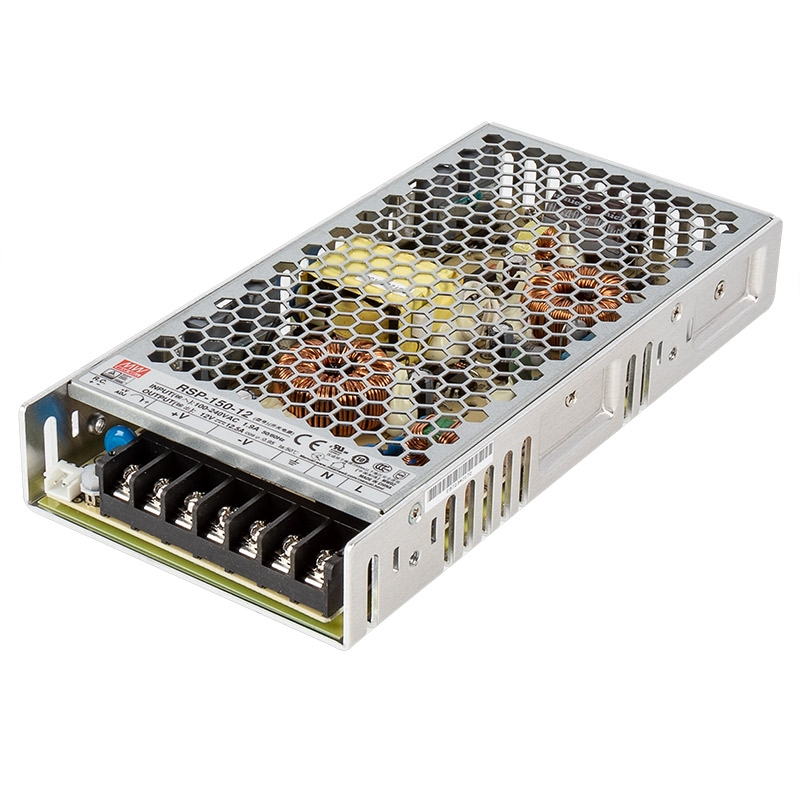

    Mean Well LED Switching Power Supply - SP Series 100-320W Enclosed Power Supply with Built-in PFC - 12V DC

      (0 Reviews) | Write a review
    SKU: RSP-x-12

    Please Choose:





    Discontinued
    Starting at: $54.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    * Universal AC input / Full range * Built-in active PFC function, PF>0.93
    * Protections: Short circuit / Overload / Over voltage / Over temperature
    * Built-in constant current limiting circuit
    * Remote ON-OFF control(Optional)
    * LED indicator for power on
    * 100% full load burn-in test
    * Fixed switching frequency at PFC:67KHz PWM:134KHz
    * 3 years warranty
    * Made by Mean Well


    Specifications
    Built-in PFC Function:    Yes
    Dimmable:    No
    Dimming Control:     None
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    IP Rating:     IP20
    Input Connection Type:    Screw Terminals
    Input Frequency Range:    47 ~ 63 Hz
    Number of Outputs:    1
    Output Voltage:    12 VDC
    Power Supply Type:    Indoor
    Standards And Certifications:    RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E183223
    UL Standard Number:    UL 60950-1
    In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
    All specifications are subject to change without notice.
