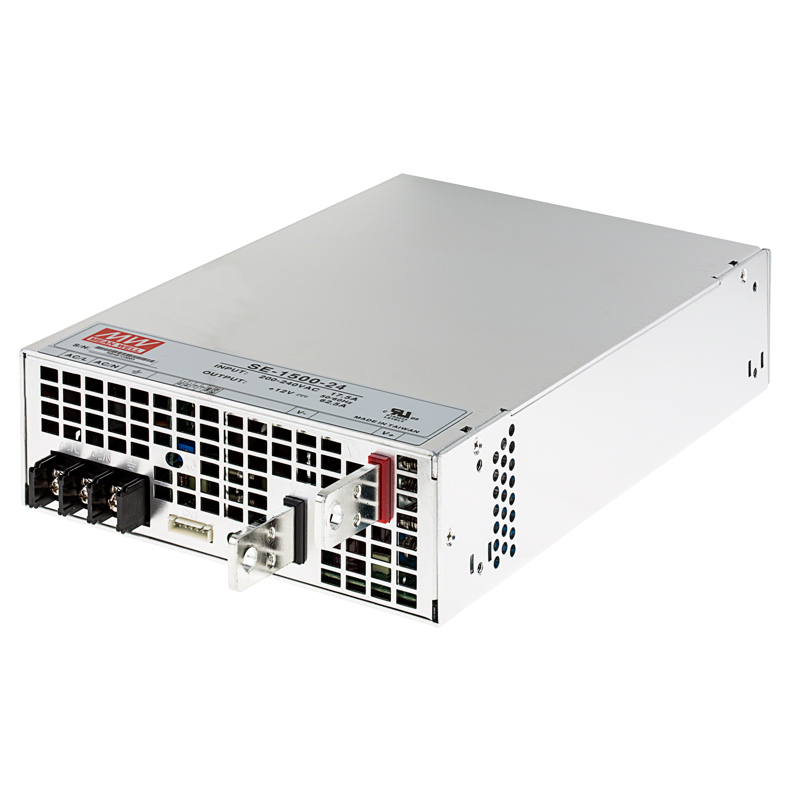

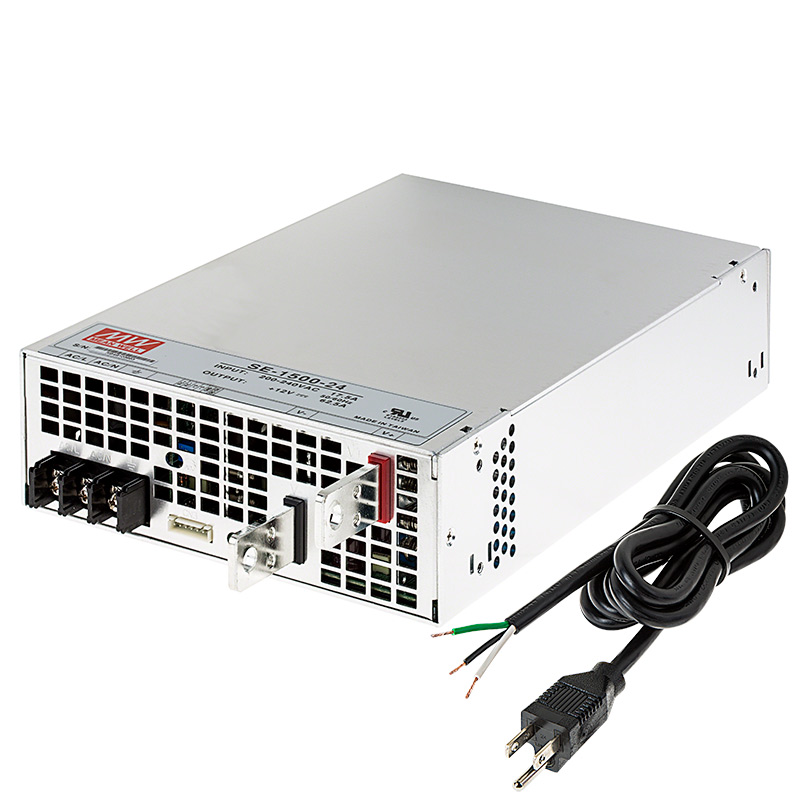

    Mean Well LED Switching Power Supply - SE Series 1500W Enclosed Power Supply - 24V DC

      (9 Reviews) | Write a review
    SKU: SE-1500-24
    Discontinued
    Starting at: $379.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Mon,Sep,30 and Sun,Oct,06. order with 2days,9hrs and 31 min.
    • Input Voltages: 200-240 VAC
    • High power models with safety certificate
    • Non-PFC, complete protections
    • Protections: Short circuit / Overload / Over voltage / Over temperature
    • 100% full load burn-in test
    • LED indicator for power on
    • Built-in DC fan
    • Low cost, high reliability
    • 2 years warranty

    Specifications
    Built-in PFC Function:    No
    Dimmable:    No
    Dimming Control:     None
    Efficiency (typical):    87%
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    IP Rating:     IP20
    Input Connection Type:    Screw Terminals
    Input Frequency Range:    47 ~ 63 Hz
    Input Voltage Range:    200 ~ 240 VAC
    Multi-Tap:    No
    Number of Outputs:    1
    Output Rated Current:    62500mA
    Output Voltage:    24 VDC
    Power Consumption:    1500 Watts
    Power Supply Type:    Indoor
    Standards And Certifications:    RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E183223
    UL Standard Number:    UL 60950-1
    Wattage:    1500 Watts
    Package Weight: 13oz (0.37kg)Package Dimensions: 5.55" (14cm) x 2.72" (7cm) x 2.72" (7cm)
    In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
    All specifications are subject to change without notice.
