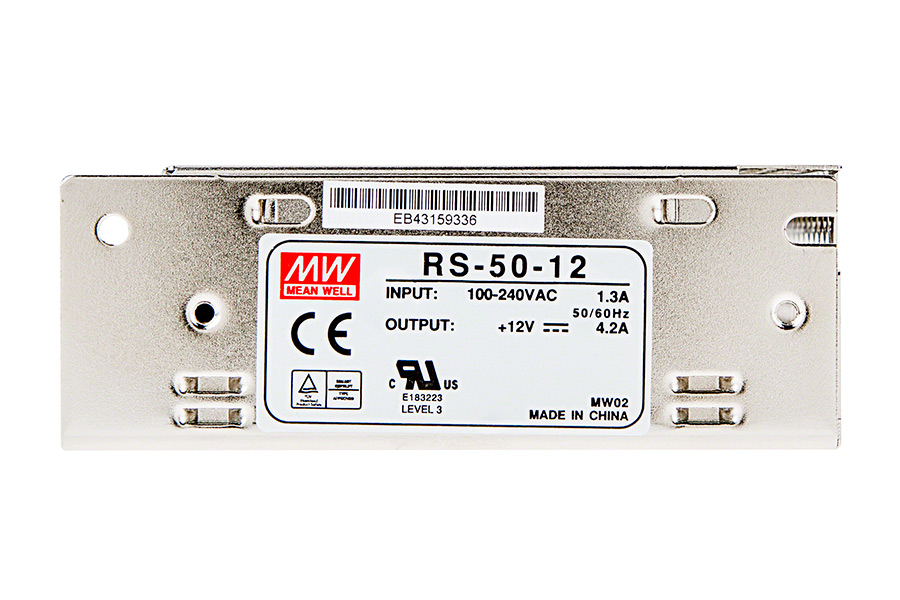

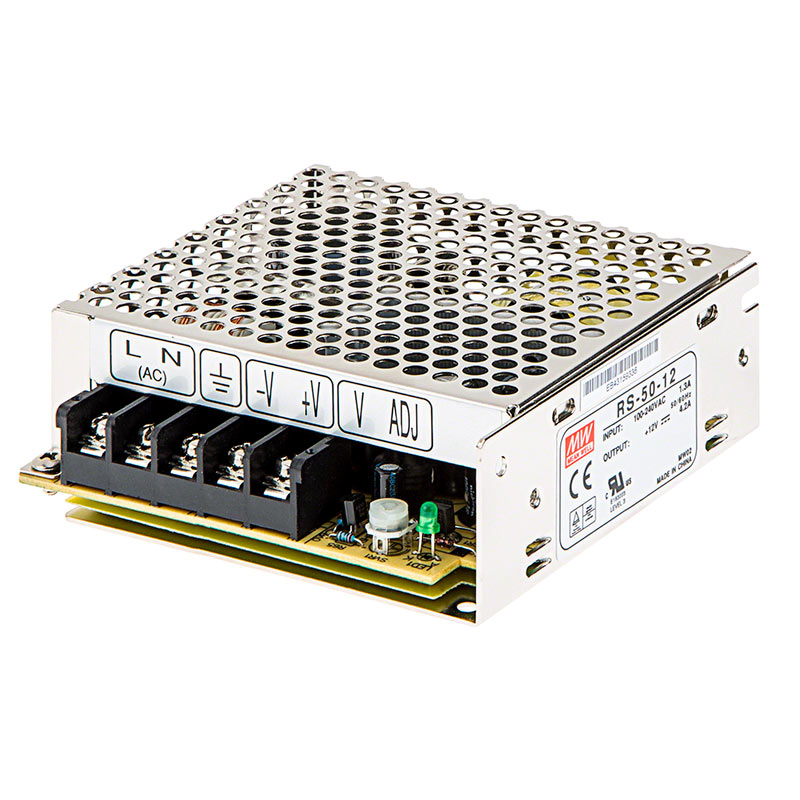

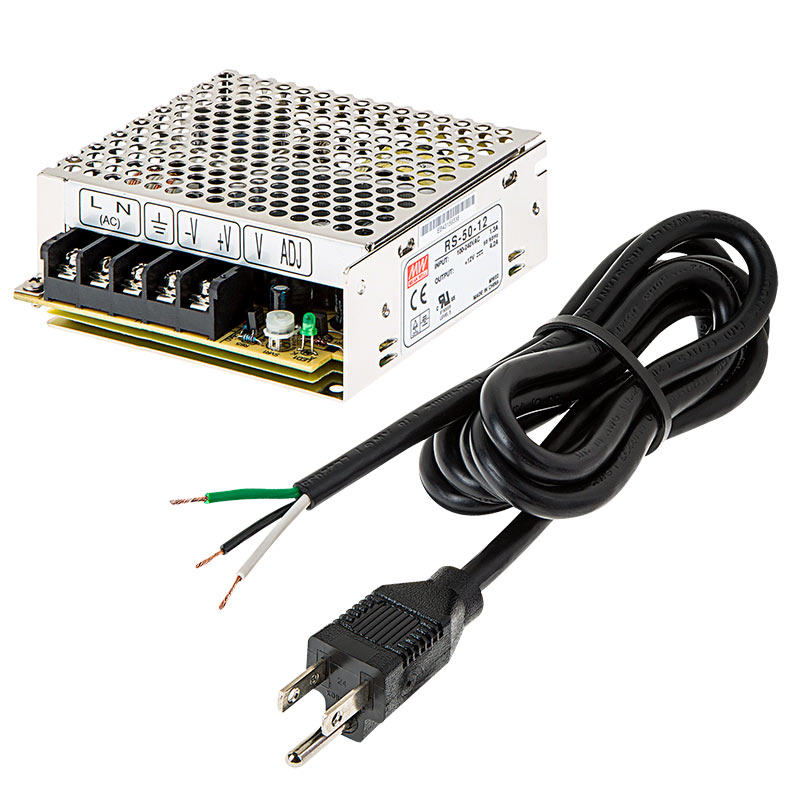

    Mean Well LED Switching Power Supply - RS Series 50W Enclosed LED Power Supply - 12V DC

      (3 Reviews) | Write a review
    SKU: RS-x-12

    Please Choose:



    Discontinued
    Starting at: $19.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.
    • Universal AC input: 100-240 VAC
    • Fully Enclosed Package measures only 3.90 x 3.82 x 1.42"
    • Convection Cooled Operation
    • Utilizes 105°C Long-Life Electrolytic Capacitors
    • Withstand 300 VAC Surge input for up to 5 seconds
    • High Reliability with an MTBF of >160K hours
    • LED Indicator for power on
    • 3 Year Warranty
    • Made by Mean Well

    Specifications
    Built-in PFC Function:    No
    Dimmable:    No
    Dimming Control:     None
    Efficiency (typical):    84.5%
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    IP Rating:     IP20

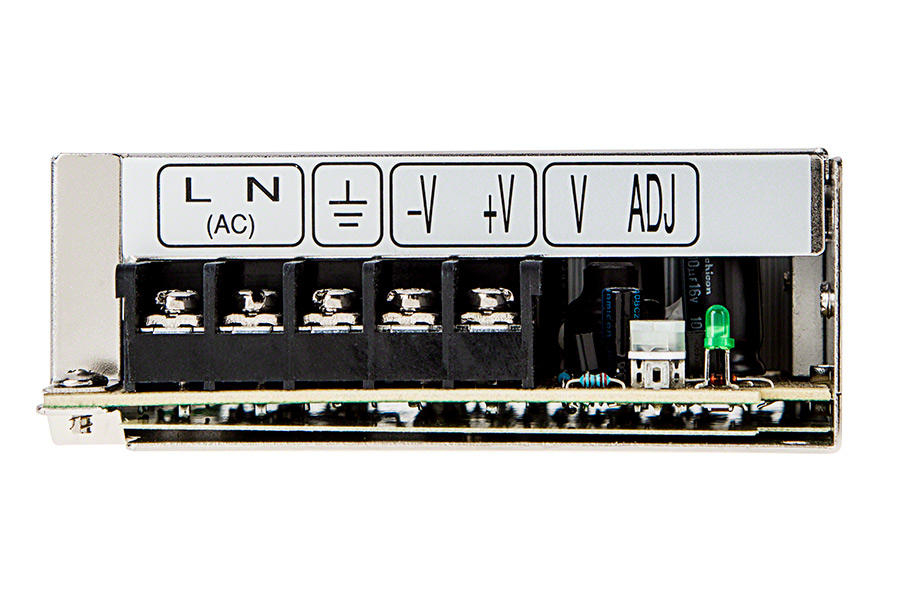

    Input Connection Type:    Screw Terminals
    Input Frequency Range:    47 ~ 63 Hz
    Input Voltage Range:    100~240 VAC
    Multi-Tap:    No
    Number of Outputs:    1
    Output Rated Current:    4200mA
    Output Voltage:    12 VDC
    Power Consumption:    50 Watts
    Power Supply Type:    Indoor
    Standards And Certifications:    RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E183223
    UL Standard Number:    UL 60950-1
    Wattage:    50 Watts
    In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
    All specifications are subject to change without notice.
