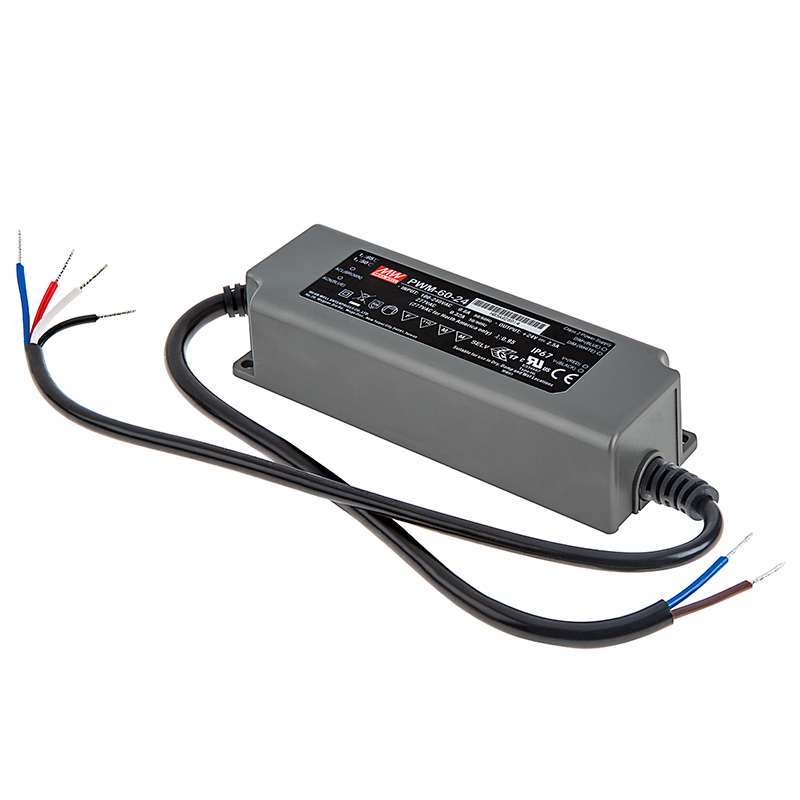

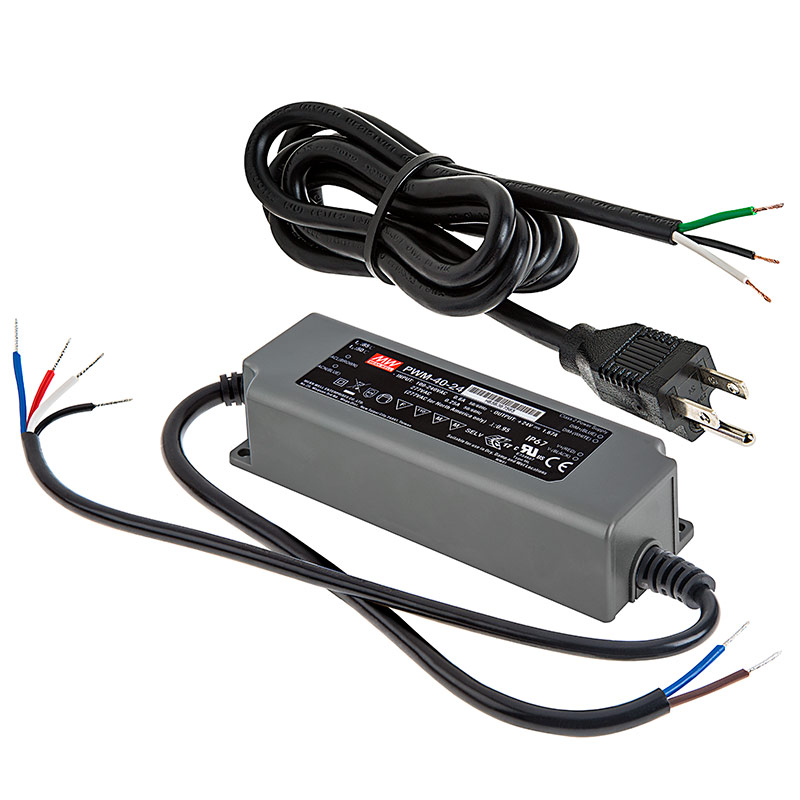

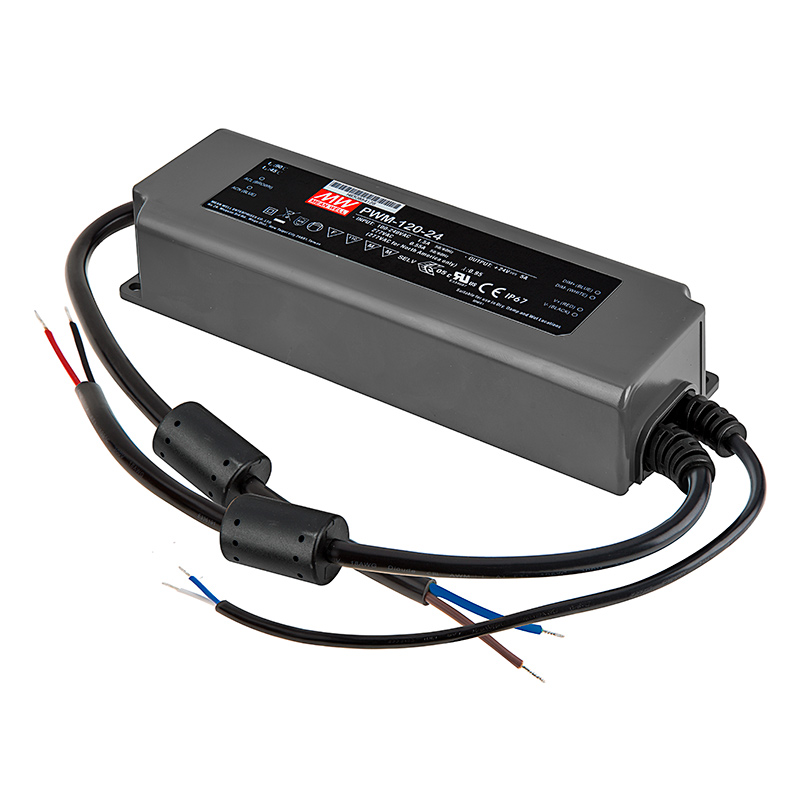

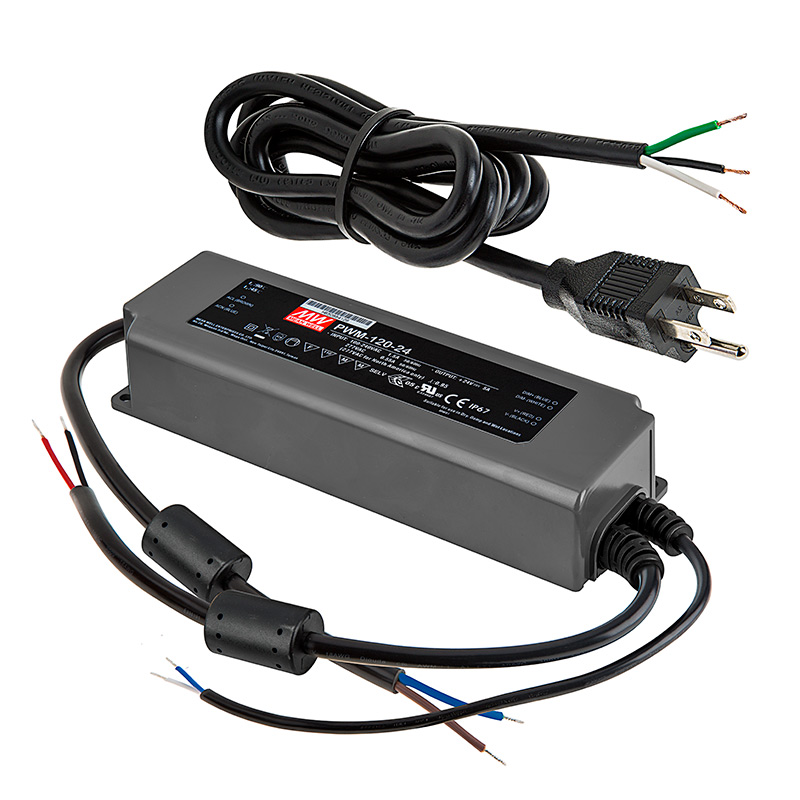

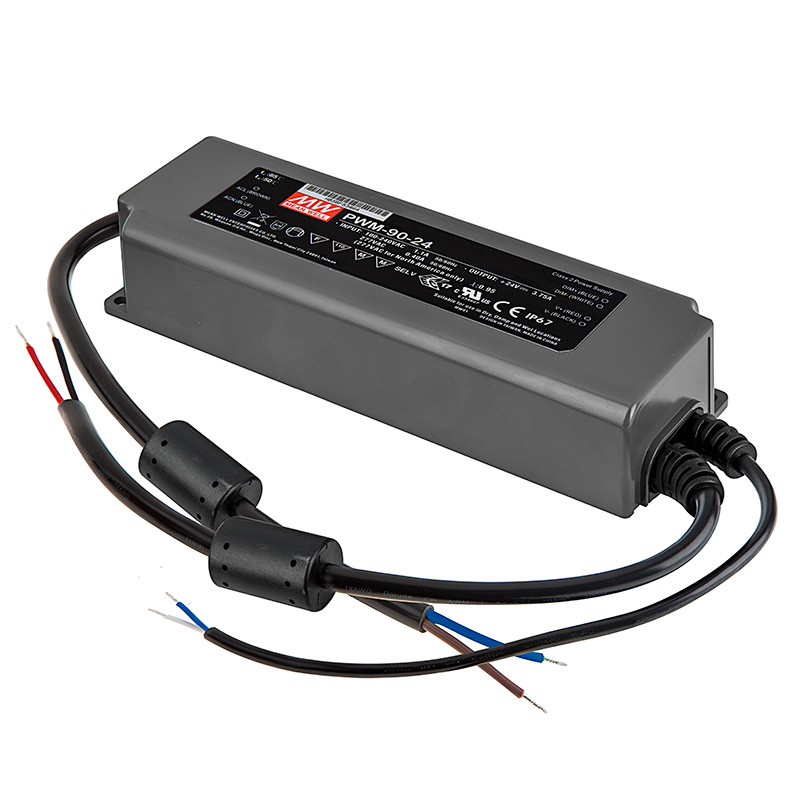

Mean Well LED Switching Power Supply - PWM Series 40-120W LED Power Supply - 24V Dimmable
- Compatible with 0-10V DC dimmers
- Universal AC input range: 100-240 VAC
- Class II power supply - no FG (all wattage versions)
- Class 2 power supply (40- and 90-watt versions)
- Constant voltage PWM (pulse width modulation) style output
- Built-in 3-in-1 dimming via 0-10V DC or PWM signal or resistance
- Dimming range: 0-100%
- Short circuit, over-load, over-voltage, and over-temperature protection
- Waterproof IP67-rated
- Maintains color temperature and brightness
- Suitable for LED strip lighting, indoor LED lighting, and LED decorative lighting
- 5-Year warranty
- Made by Mean Well
Specifications
Built-in PFC Function: Yes
Dimmable: Yes
Dimming Control: 0-10V Dimming, Pulse Width Modulation (PWM), Resistive Dimming
Environmental Rating: Suitable for Wet Locations, Waterproof
IP Rating: IP67
Input Connection Type: Pigtail
Input Frequency Range: 47 ~ 63 Hz
Input Voltage Range: 100~240 VAC
Multi-Tap: No
Number of Outputs: 1
Output Voltage: 24 VDC
Power Supply Type: Dimmable, Waterproof
Type: Power Supplies
UL Standard Number: UL 8750
In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
All specifications are subject to change without notice.
