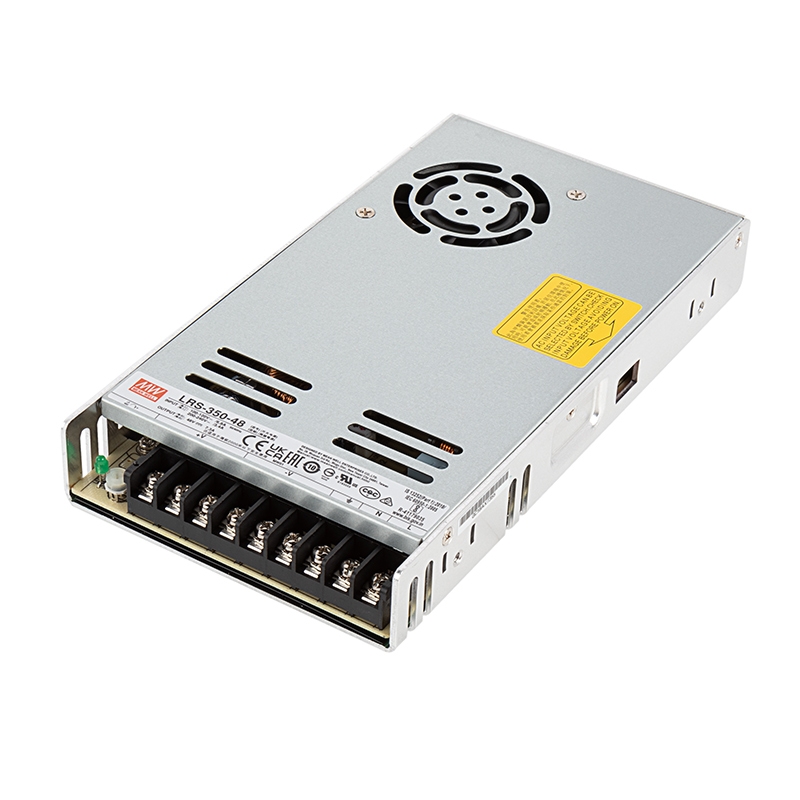

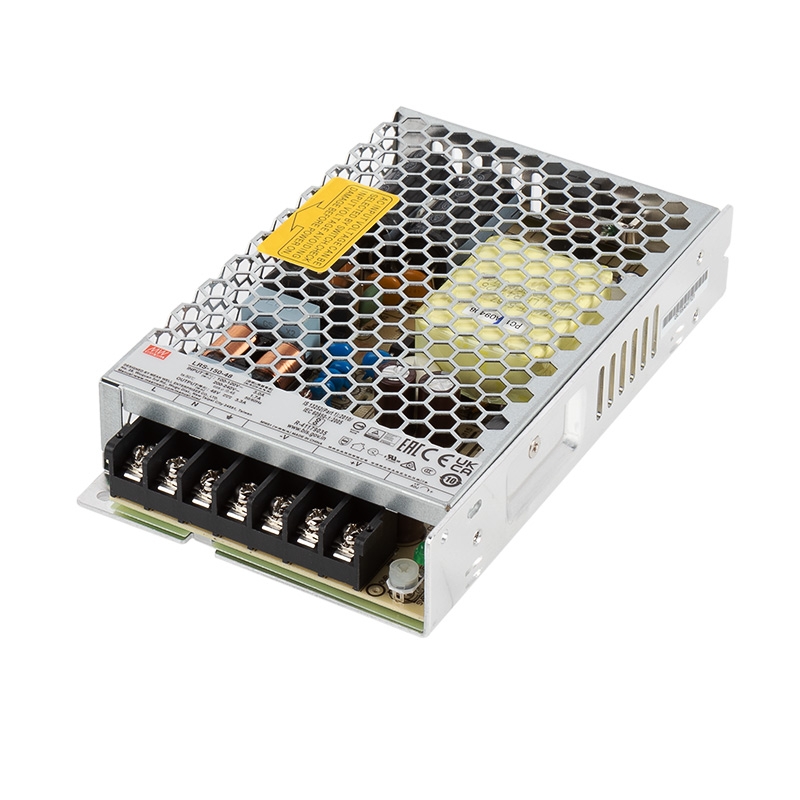

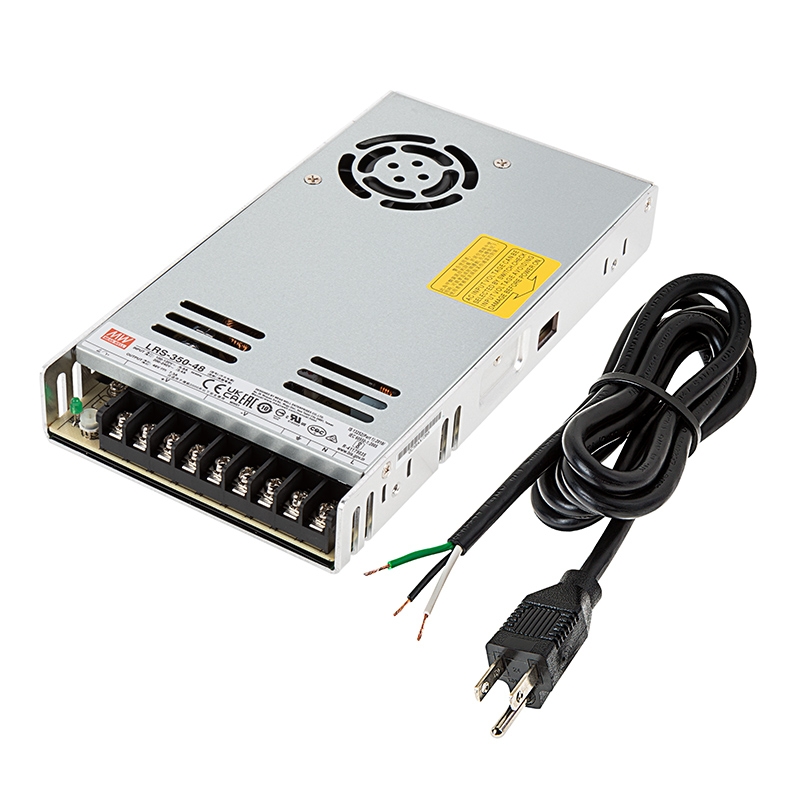

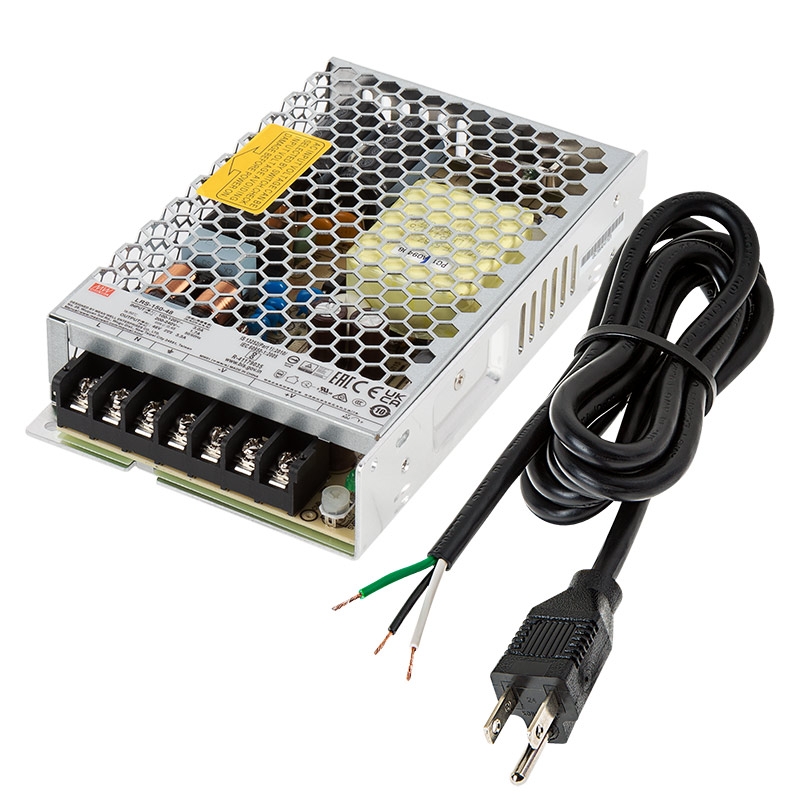

Mean Well LED Switching Power Supply - LRS Series 100-350W Enclosed Power Supply - 48V DC
* Economical medium to high power models with safety certificate
* Non-PFC, complete protections
* Protections: Short circuit / Overload / Over voltage / Over temperature
* 100% full load burn-in test
* LED indicator for power on
* Withstand 300VAC surge input for 5 seconds
* Cooling by free air convection on the 100W and 200W, and built-in DC fan on the 350W
* Low cost, high reliability
* 3-year warranty
* Made by Mean Well
Specifications
Brand: Mean Well
Built-in PFC Function: No
Dimmable: No
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
IP Rating: IP20
Input Connection Type: Screw Terminals
Input Frequency Range: 47 ~ 63 Hz
Input Voltage Range: 120 VAC, 208~240 VAC
Multi-Tap: Yes
Output Voltage: 48 VDC
Power Supply Type: Indoor
Standards And Certifications: UL Recognized
Type: Power Supplies
UL File Number: E183223
UL Standard Number: UL 60950-1
All specifications are subject to change without notice.
