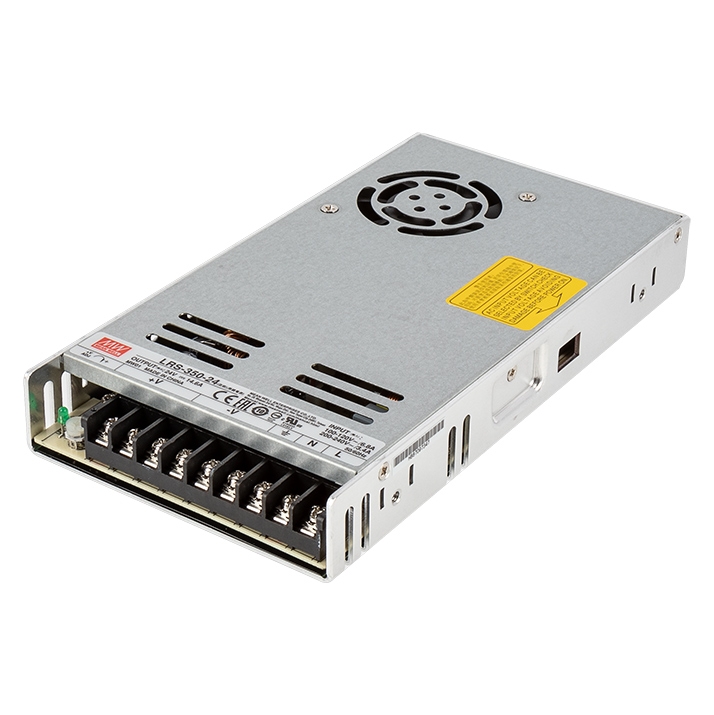

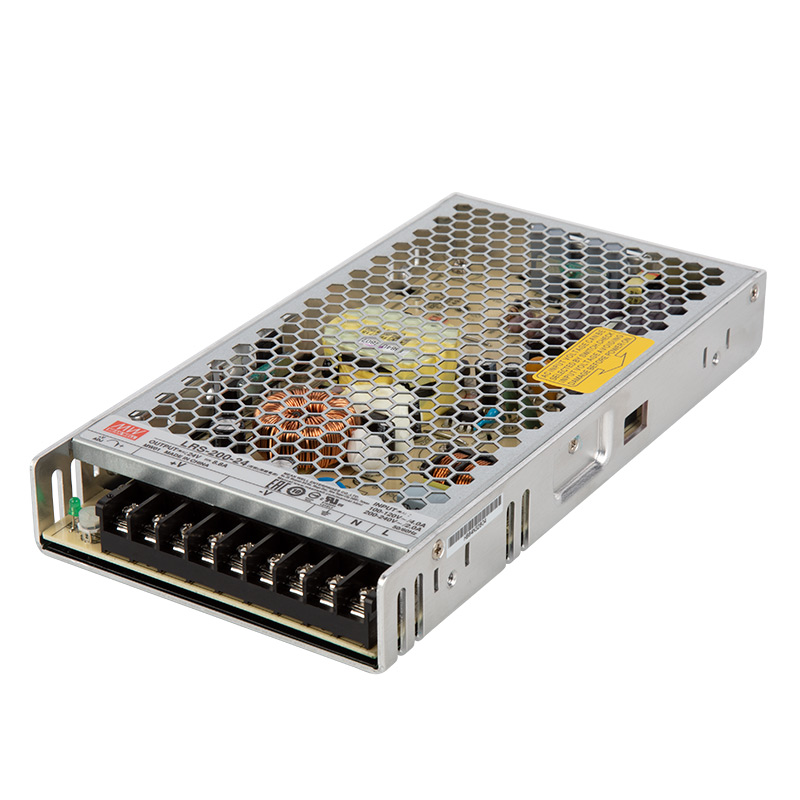

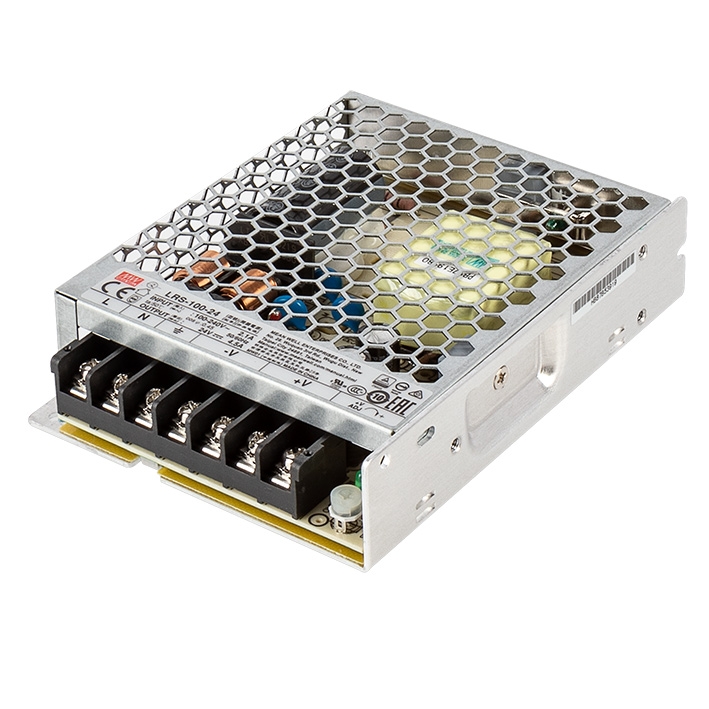

    Mean Well LED Switching Power Supply - LRS Series 100-350W Enclosed Power Supply - 24V DC

      (7 Reviews) | Write a review
    SKU: LRS-x-24

    Please Choose:





    Discontinued
    Starting at: $29.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.
    • Economical medium to high power models with safety certificate
    • Non-PFC, complete protections
    • Protections: Short circuit / Overload / Over voltage / Over temperature
    • Universal AC input: 100-240 VAC
    • 100% full load burn-in test
    • LED indicator for power on
    • Withstand 300VAC surge input for 5 seconds
    • Cooling by free air convection on the 100W and 200W, and built-in DC fan on the 350W
    • Low cost, high reliability
    • 3-year warranty
    • Made by Mean Well

    Specifications
    Built-in PFC Function:    No
    Dimmable:    No
    Environmental Rating:     Non-weatherproof, Suitable for Dry Locations
    IP Rating:     IP20
    Input Connection Type:    Screw Terminals
    Input Frequency Range:    47 ~ 63 Hz
    Multi-Tap:    Yes
    Number of Outputs:    1
    Output Voltage:    24 VDC
    Power Supply Type:    Indoor
    Standards And Certifications:    RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E183223
    UL Standard Number:    UL 60950-1
    All specifications are subject to change without notice.
