    Mean Well LED Switching Power Supply - LPV Series 60-100W Single Output LED Power Supply - 48V DC

      (6 Reviews) | Write a review
    SKU: LPV-60-48
    Discontinued
    Starting at: $24.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.
    • Low cost, economical LED power supply, constant voltage
    • Class 2 power supply (35-watt version)
    • Class II - no FG (all wattage versions)
    • Protections: short circuit, over load, over voltage
    • Universal AC input: 120-240 VAC
    • Slim plastic case with IP67 level
    • Withstand 300VAC surge input for 5 seconds
    • Wide operating range: -22°–149° F (35-watt) and 13°–158° F (100-watt)
    • Suitable for economical LED lighting and moving sign applications
    • Low cost, high reliability
    • 2 year warranty
    • Made by Mean Well

    Specifications
    Brand:    Mean Well
    Dimmable:    No
    Efficiency (typical):    86%
    Environmental Rating:     Suitable for Wet Locations, Waterproof
    Input Connection Type:    Pigtail
    Input Frequency Range:    47 ~ 63 Hz
    Input Voltage Range:    120-240 VAC
    IP Rating:     IP67
    Multi-Tap:    No
    Operating Temperature:    -30~+70 °C (-22~+158 °F)
    Number of Outputs:    1
    Output Rated Current:    1250mA
    Output Voltage:    48 VDC
    Built-in PFC Function:    No
    Power Consumption:    60 Watts
    Power Supply Type:    Waterproof
    Product Weight:    0lb 13.6oz (0.38)
    Standards And Certifications:    Class 2, Class II, UL Recognized
    Type:    Power Supplies
    UL File Number:    E307078, E320521
    UL Standard Number:    UL 1310
    Wattage:    60 Watts
    Package Weight: 14.4oz (0.41kg)
    Package Dimensions: 7.65" (19cm) x 2.66" (7cm) x 1.4" (4cm)
    All specifications are subject to change without notice.


    Product Review

    Show more reviews

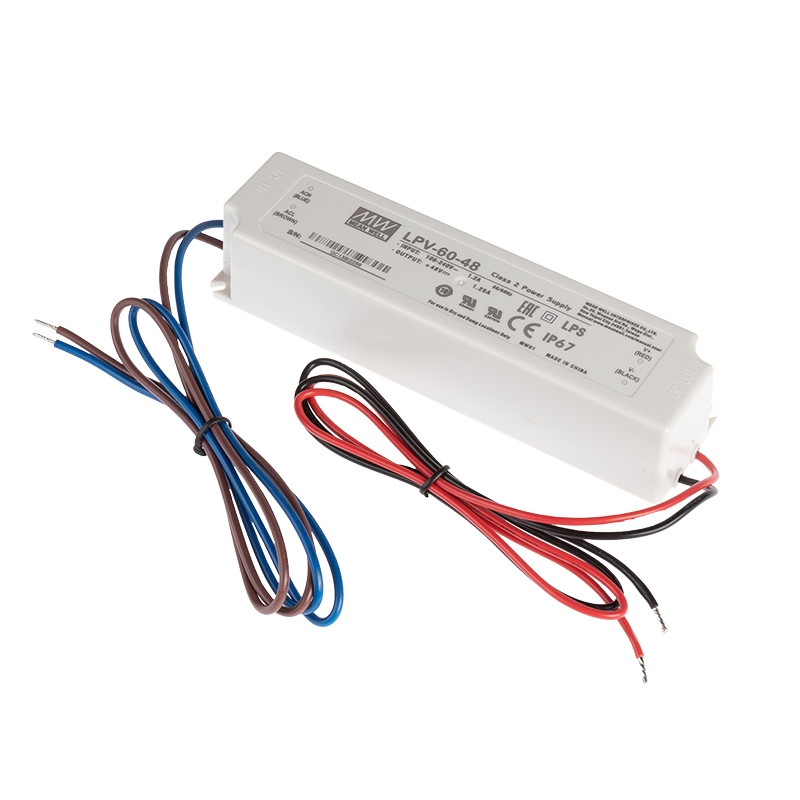

    store image
