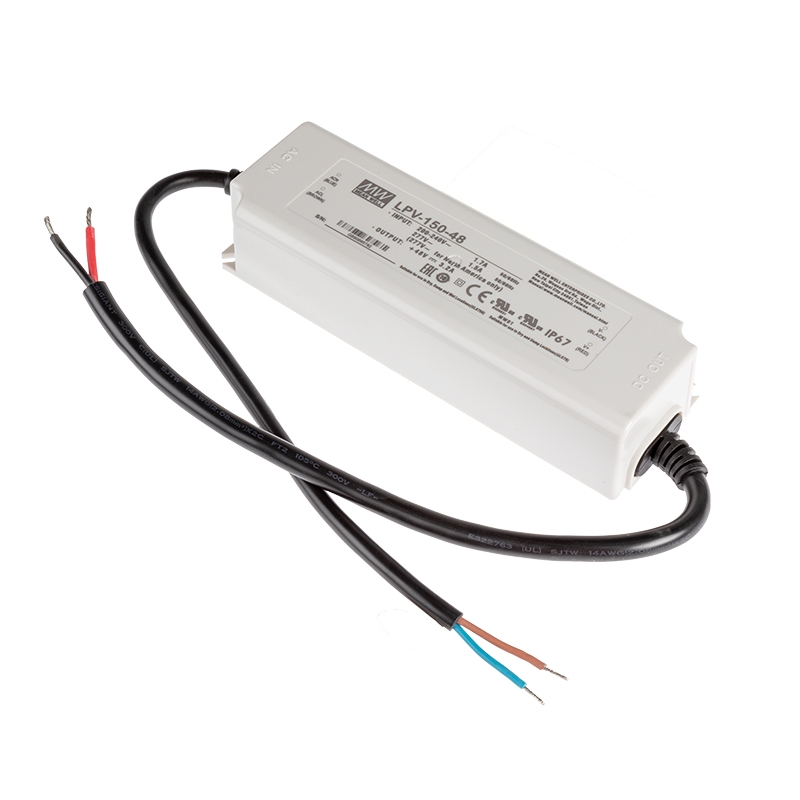

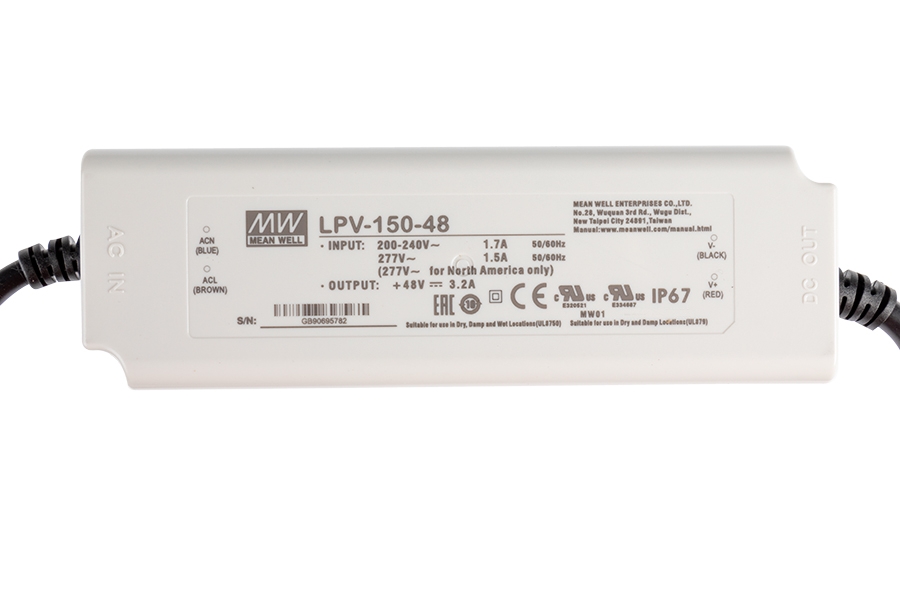

Mean Well LED Switching Power Supply - LPV Series 150W Single Output LED Power Supply - 48V DC - 208-277 VAC
- Low cost, economical LED power supply, constant voltage
- Class 2 power supply
- Class II - no FG
- Protections: short circuit, over load, over voltage
- Universal AC input: 208-277 VAC
- Slim plastic case with IP67 level
- Withstand 300VAC surge input for 5 seconds
- Wide operating range: 13°–158° F
- Suitable for economical LED lighting and moving sign applications
- Low cost, high reliability
- 2 year warranty
- Made by Mean Well
Specifications
Brand: Mean Well
Dimmable: No
Efficiency (typical): 90%
Environmental Rating: Suitable for Wet Locations, Waterproof
Input Connection Type: Pigtail
Input Frequency Range: 47 ~ 63 Hz
Input Voltage Range: 208~277 VAC
IP Rating: IP67
Multi-Tap: No
Operating Temperature: -25~+65 °C (-13~+149 °F)
Number of Outputs: 1
Output Rated Current: 3200 mA
Output Voltage: 48 VDC
Built-in PFC Function: No
Power Consumption: 150 Watts
Power Supply Type: Waterproof
Product Weight: 1lb 12oz (0.79kg)
Standards And Certifications: Class II, UL Recognized
Type: Power Supplies
UL File Number: E320521
UL Standard Number: UL 8750, UL1310
Wattage: 150 Watts
Package Weight: 1lb 13.6oz (0.84kg)
Package Dimensions: 10.9" (28cm) x 3.36" (9cm) x 1.87" (5cm)
All specifications are subject to change without notice.
