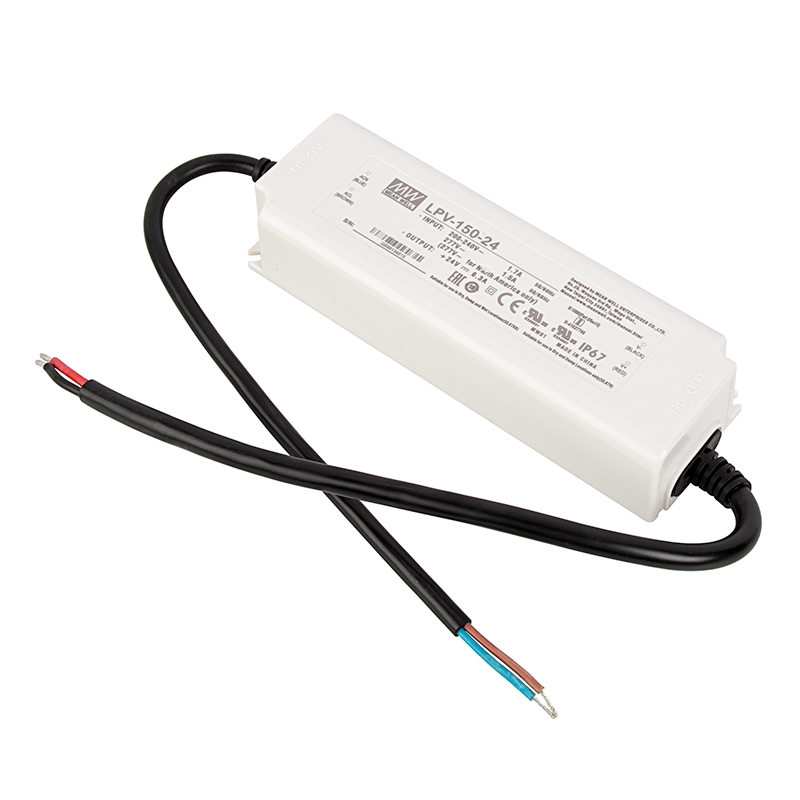

    Mean Well LED Switching Power Supply - LPV Series 150W Single Output LED Power Supply - 24V DC - 180-305 VAC

      (9 Reviews) | Write a review
    SKU: LPV-150-24
    Discontinued
    Starting at: $49.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.
    • Low cost, economical LED power supply, constant voltage
    • Class II - no FG (all wattage versions)
    • Protections: short circuit, over load, over voltage
    • Universal AC input: 200-277 VAC
    • Slim plastic case with IP67 level
    • -25-65℃ wide operation range
    • Suitable for economical LED lighting and moving sign applications
    • Low cost, high reliability
    • 2 year warranty
    • Made by Mean Well

    Specifications
    Built-in PFC Function:    No
    Dimmable:    No
    Dimming Control:     None
    Efficiency (typical):    88%
    Environmental Rating:     Suitable for Wet Locations, Waterproof
    IP Rating:     IP67
    Input Connection Type:    Pigtail
    Input Frequency Range:    47 ~ 63 Hz
    Input Voltage Range:    200~277 VAC
    Multi-Tap:    No
    Number of Outputs:    1
    Operating Temperature:    -25~+70 °C (-13~+158 °F)
    Output Rated Current:    4200mA
    Output Voltage:    24 VDC
    Power Consumption:    150 Watts
    Power Supply Type:    Waterproof
    Standards And Certifications:    Class II, RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E320521
    UL Standard Number:    UL 60950-1
    Package Weight: 1lb 13.7oz (0.84kg)
    Package Dimensions: 11" (28cm) x 3.25" (8cm) x 2" (5cm)
    All specifications are subject to change without notice.
