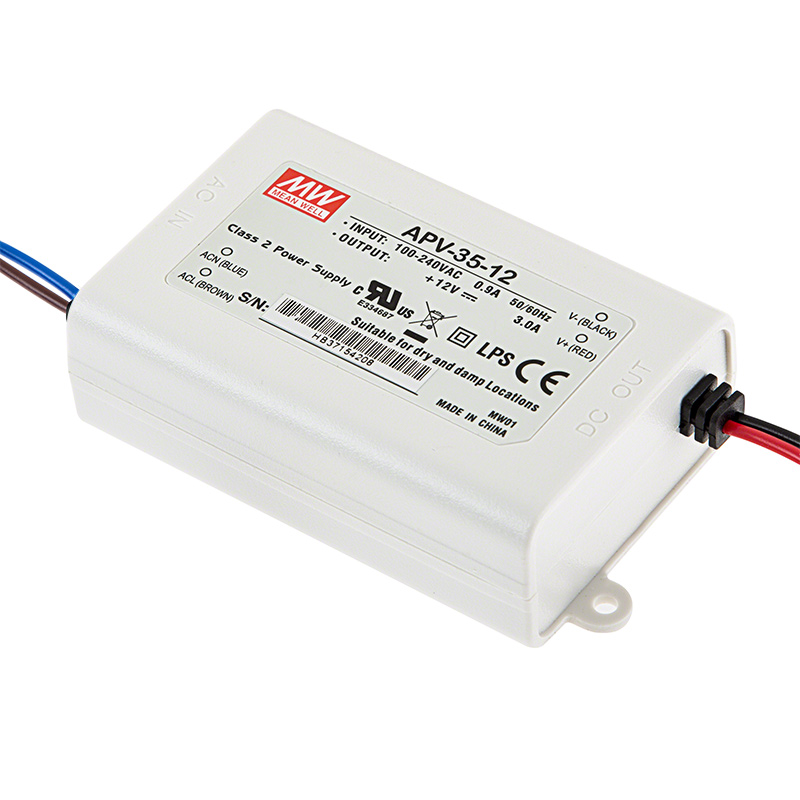

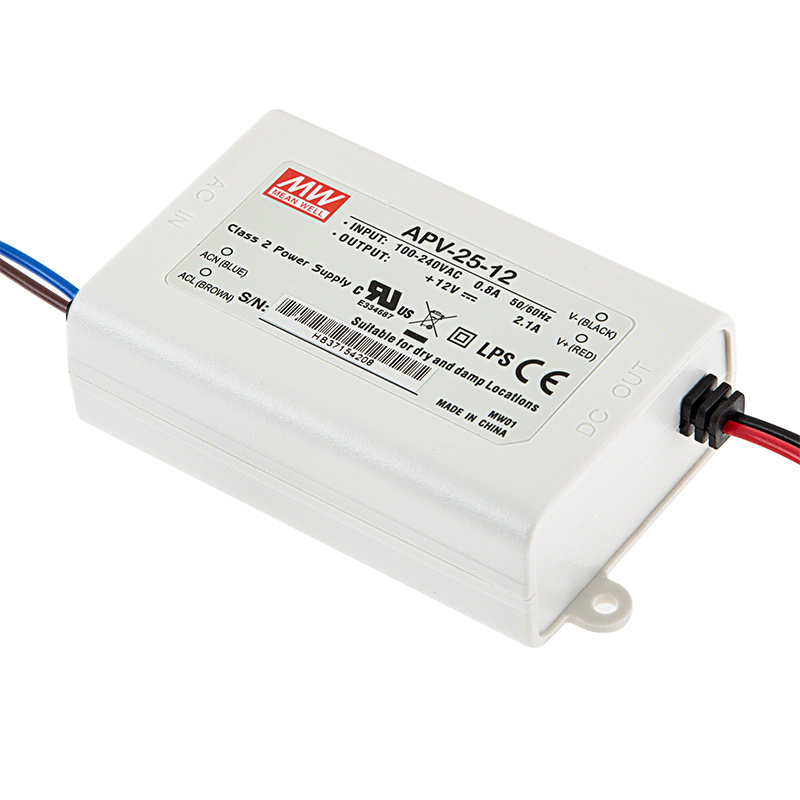

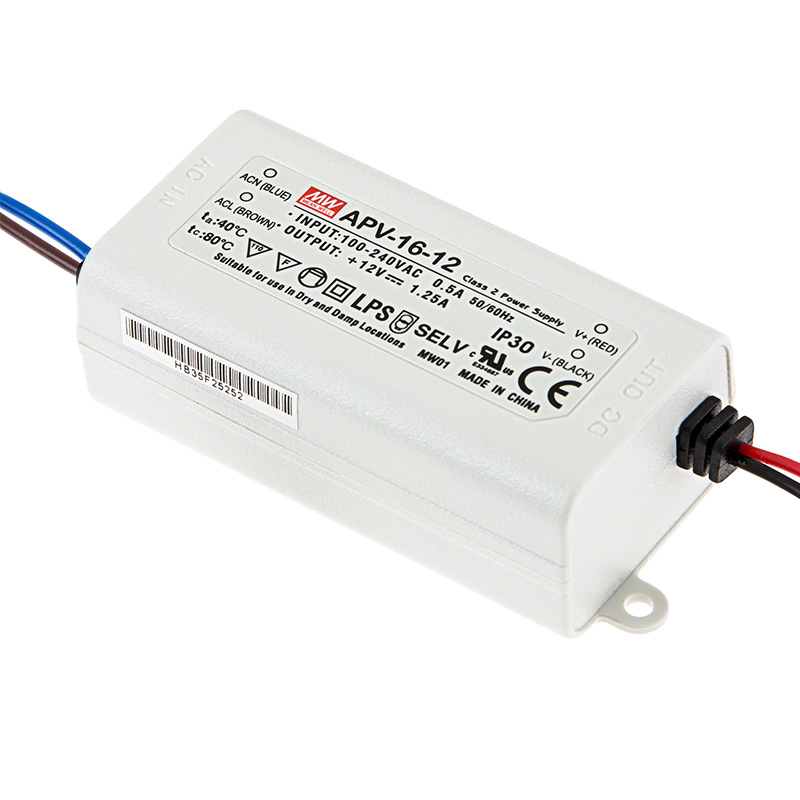

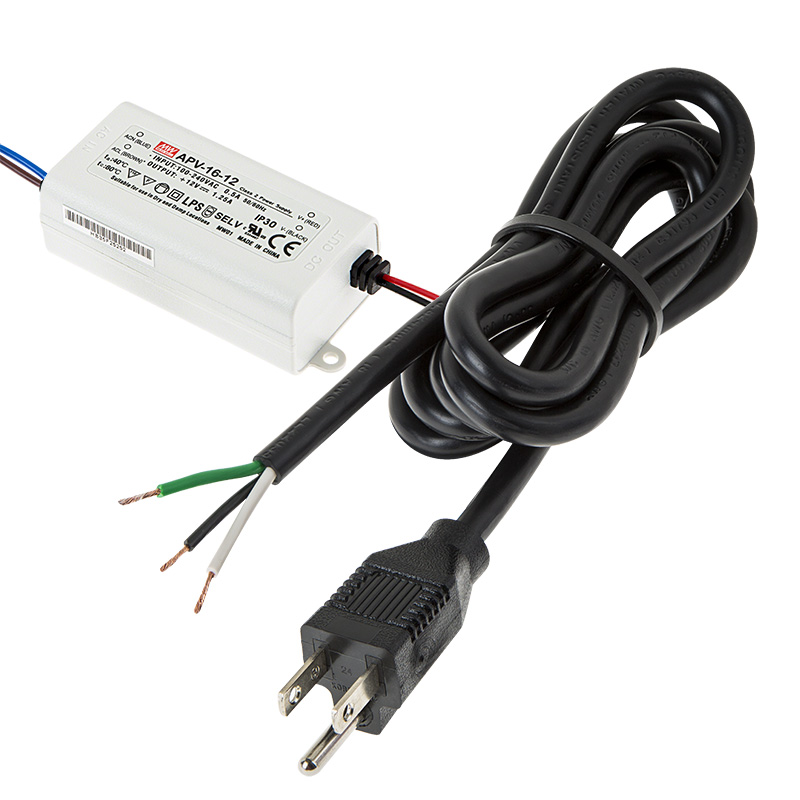

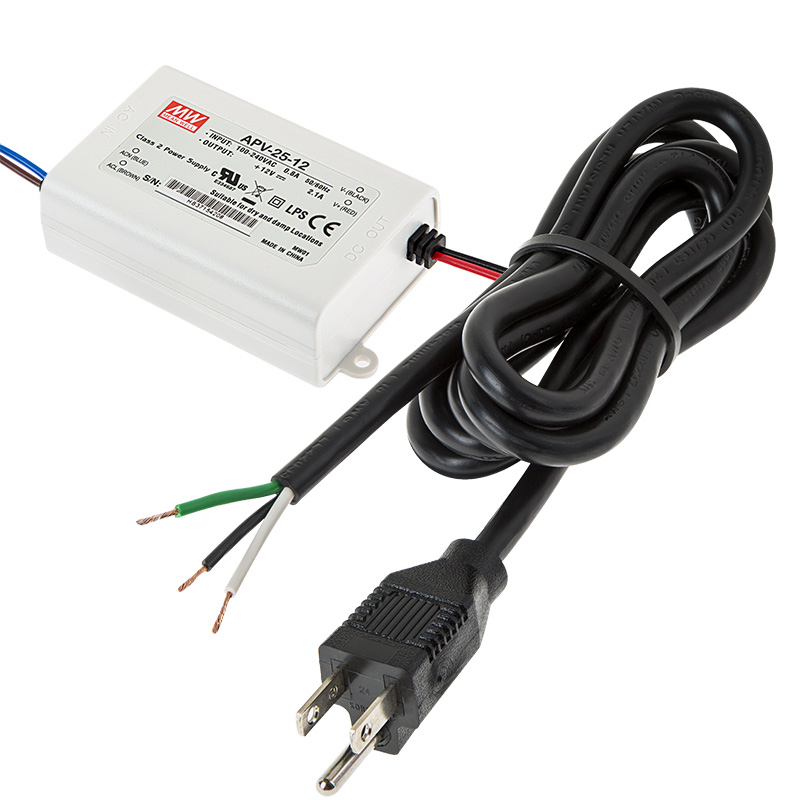

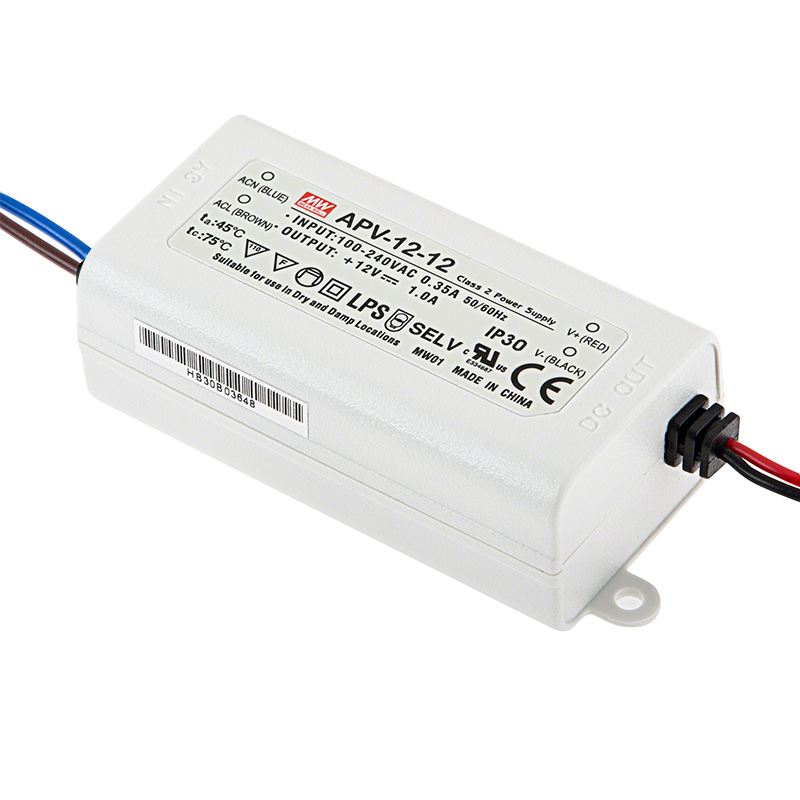

    Mean Well LED Switching Power Supply - AP Series 12-35W Single Output LED Power Supply - 12V DC

      (0 Reviews) | Write a review
    SKU: APV-x-12

    Please Choose:





    Discontinued
    Starting at: $7.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.
    • Constant voltage mode power supply
    • Universal AC input range: 100-240 VAC
    • Class II power supply - no FG (12- and 16-watt versions)
    • Class 2 power supply (all wattage versions)
    • Withstand 300VAC surge input for 5 seconds
    • Short-circuit and over-voltage protection
    • Fully isolated plastic case
    • Small and compact size
    • Convection cooled operation
    • IP30 rated design
    • Pass LPS
    • 100% full load burn-in test
    • Ideal for LED lighting and mobile sign applications
    • Low cost and high reliability
    • 2 year warranty
    • Made by Mean Well

    Specifications
    Built-in PFC Function:    No
    Dimmable:    No
    Dimming Control:     None
    Environmental Rating:     Non-weatherproof, Suitable for Damp Locations
    IP Rating:     IP30
    Input Connection Type:    Pigtail
    Input Frequency Range:    47 ~ 63 Hz
    Input Voltage Range:    100~240 VAC
    Multi-Tap:    No
    Number of Outputs:    1
    Output Voltage:    12 VDC
    Power Supply Type:    Indoor
    Standards And Certifications:    Class 2, Class II, RoHS Compliant, UL Recognized
    Type:    Power Supplies
    UL File Number:    E334687
    UL Standard Number:    UL 8750
    In the past, constant-current LED power sources were referred to as LED drivers, and constant voltage LED power sources were called LED power supplies. Today, the terms are interchangeable.
    All specifications are subject to change without notice.
