Dimmable LED Power Supply - DiodeDrive® Series - 200W Enclosed Power Supply - 12V

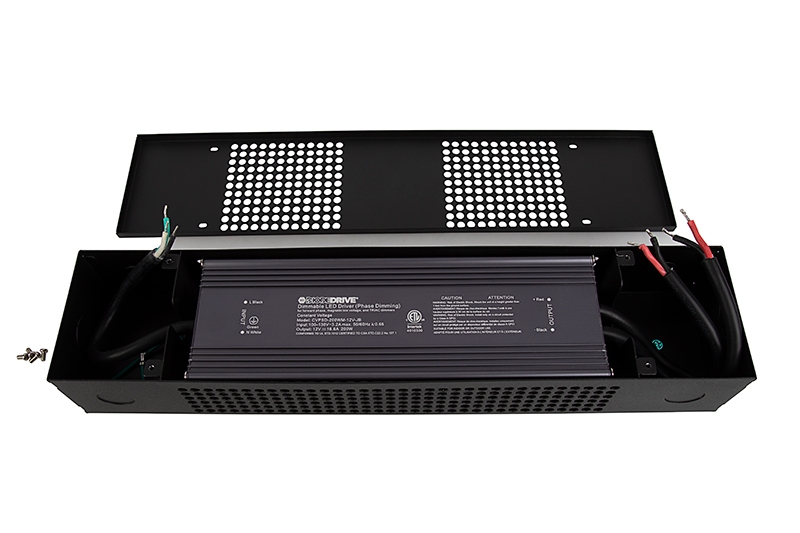

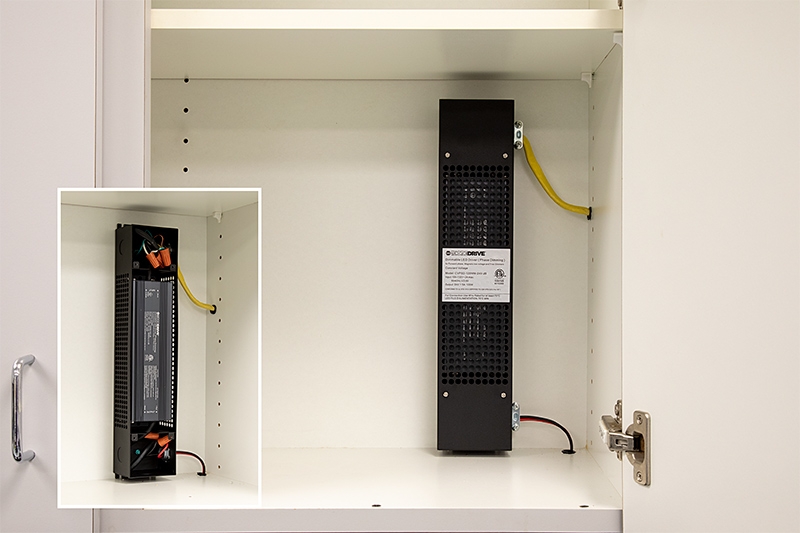

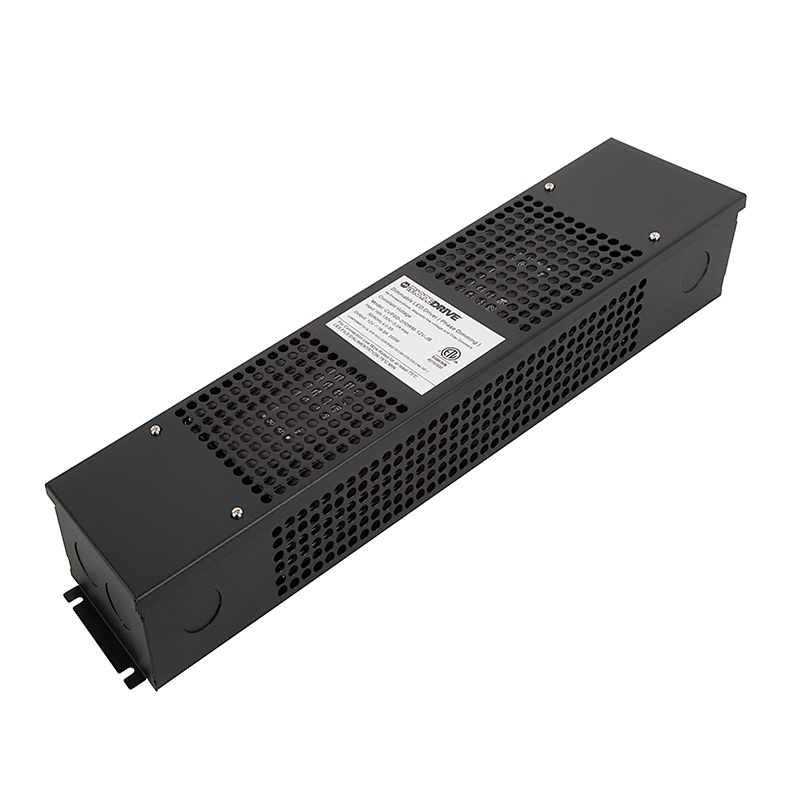

DiodeDrive® Constant Voltage 200W LED Driver can effectively power lights that require low voltage, such as strip lights and linear light bars. With a max wattage of 100 per outlet, this TRIAC dimmable device protects against short-circuit, overload, and heat build up. The durable, vented enclosure protects the inner components for indoor or outdoor use. Designed with 2 outputs and 7 total knockouts, wire access is easy. Select to include the optional power cord for simplified installation.
Product Details:
- Includes 7 conduit knockouts
- Comprised of two 100-watt outlets
- Includes mounting slots
- Compatible with TRIAC dimmers
- Input 120 VAC
- Output 12 VDC
- Driver rated IP66 for wet conditions
- ETL Listed
- 2 year warranty
Specifications
Dimmable: Yes
Dimming Control: External TRIAC
Dimming Type: TRIAC
Environmental Rating: Suitable for Wet Locations, Waterproof
IP Rating: IP66
Input Connection Type: Pigtail
Input Frequency Range: 50 ~ 60 Hz
Input Voltage Range: 100 ~ 130 VAC
Number of Outputs: 2
Operating Temperature: -40~+60 °C (-40~+140 °F)
Output Current Draw per Channel: 8.3A (8300mA)
Output Voltage: 12 VDC
Power Consumption: 200 Watts
Power Supply Type: Dimmable, Waterproof
Standards And Certifications: ETL Listed, FCC
Type: Power Supplies
Wattage: 200 Watts
All specifications are subject to change without notice.
