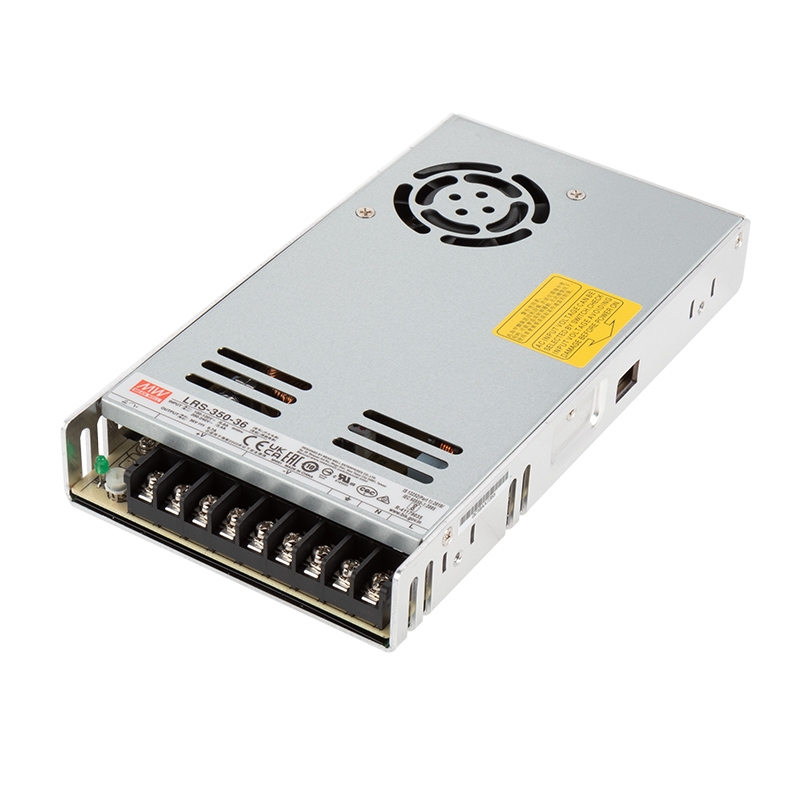

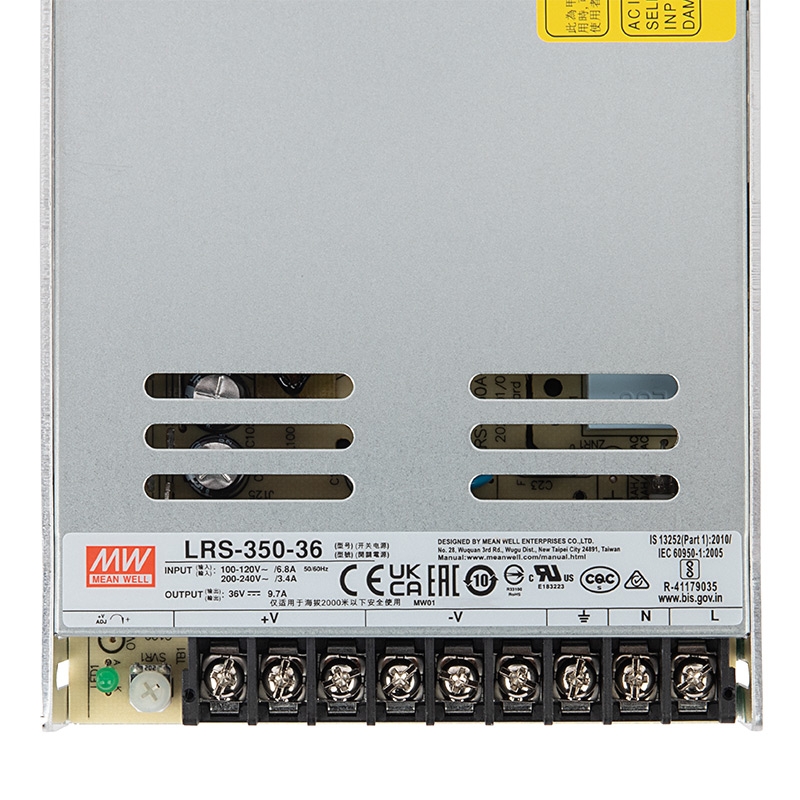

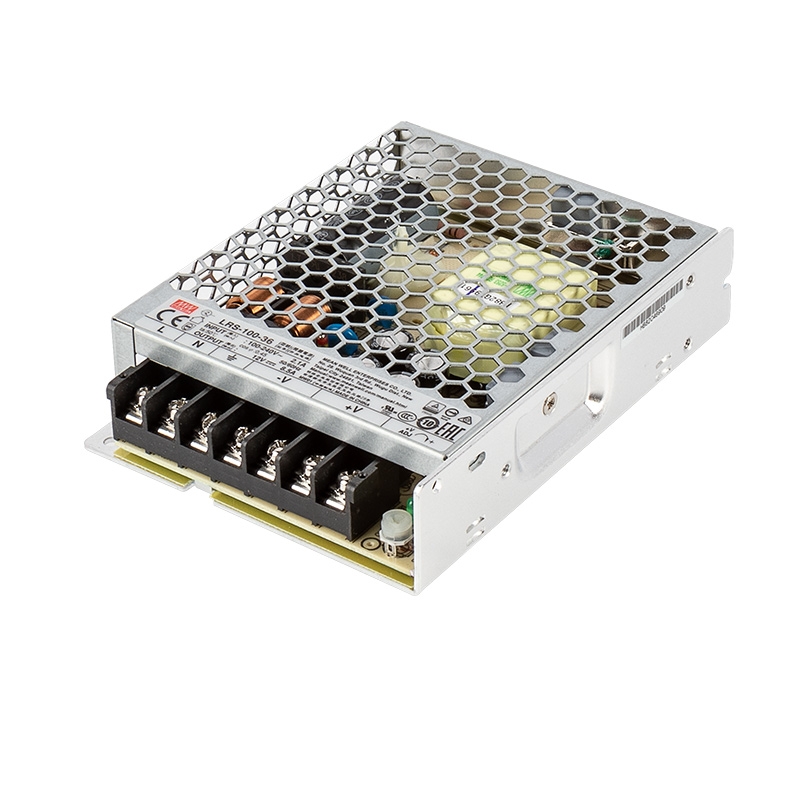

36V DC Mean Well LED Switching Power Supply - LRS Series Enclosed Power Supply - 100W / 350W

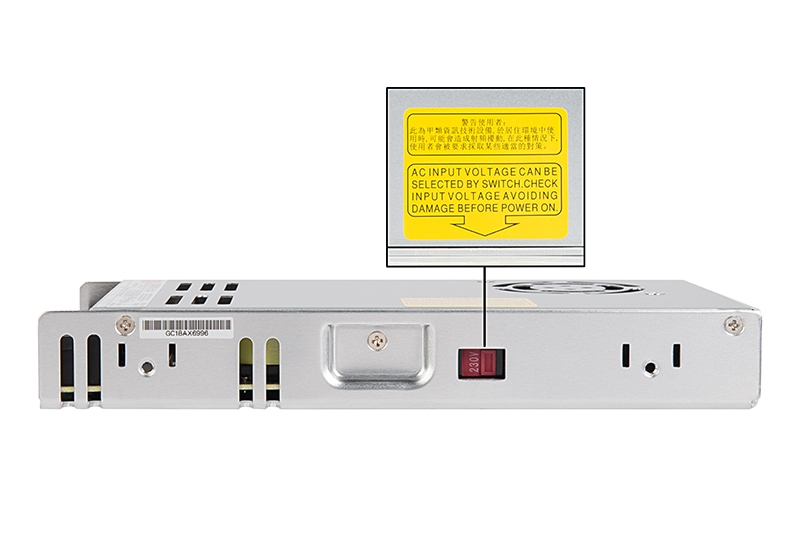

Mean Well power supplies are designed to high standards of efficiency, lifespan, and reliability. They allow for full load burn-in and switch between 120 VAC and 208-240 VAC input to work with various common input voltages. 36 VDC output can be adjusted up to 39.6 VDC to make up for voltage drop. Built-in protections for short circuit, overload, over voltage, and over temperature guard against and prevent premature failure.
Product Details:
- High efficiency, low profile design
- Multi-tap output connections- 2 sets on 100W and 3 sets on 350W
- Full load (100%) burn in
- Operates in temperatures up to 158° F (70° C)
- 5G vibration resistance
- Withstands 300 VAC surge input for 5 seconds
- Built-in cooling fan on 350 W version
- Non-PFC
- Optional cord available for 120 VAC use
- 3-year warranty
Specifications
Brand: Mean Well
Built-in PFC Function: No
Dimmable: No
Environmental Rating: Non-weatherproof, Suitable for Dry Locations
IP Rating: IP20
Input Connection Type: Screw Terminals
Input Frequency Range: 47 ~ 63 Hz
Input Voltage Range: 120 VAC, 208~240 VAC
Multi-Tap: Yes
Output Voltage: 36 VDC
Power Supply Type: Indoor
Type: Power Supplies
UL File Number: E183223
UL Standard Number: UL 60950-1
All specifications are subject to change without notice.
