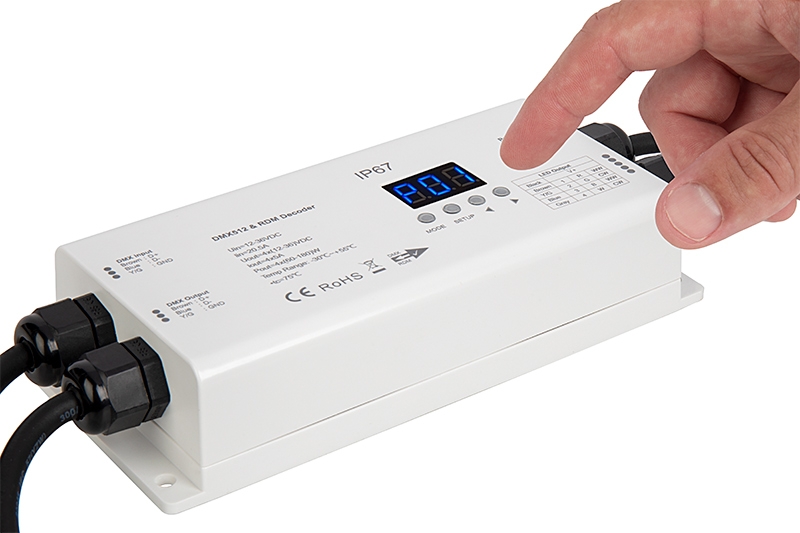

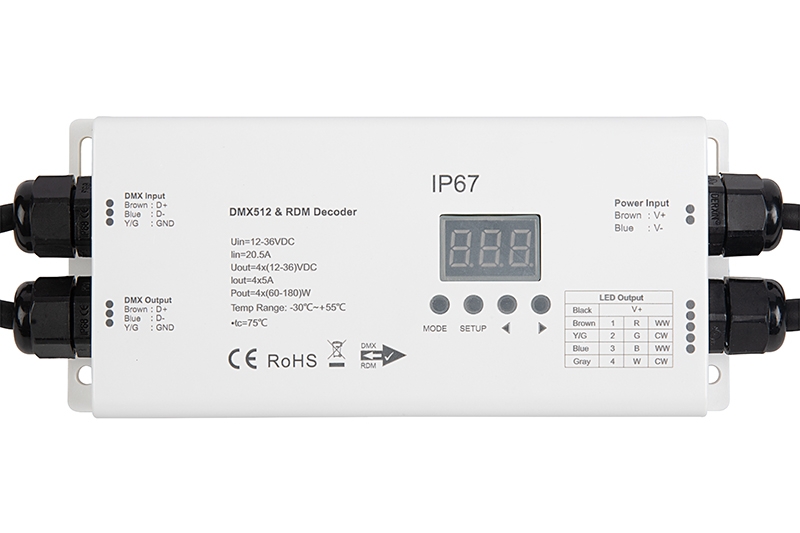

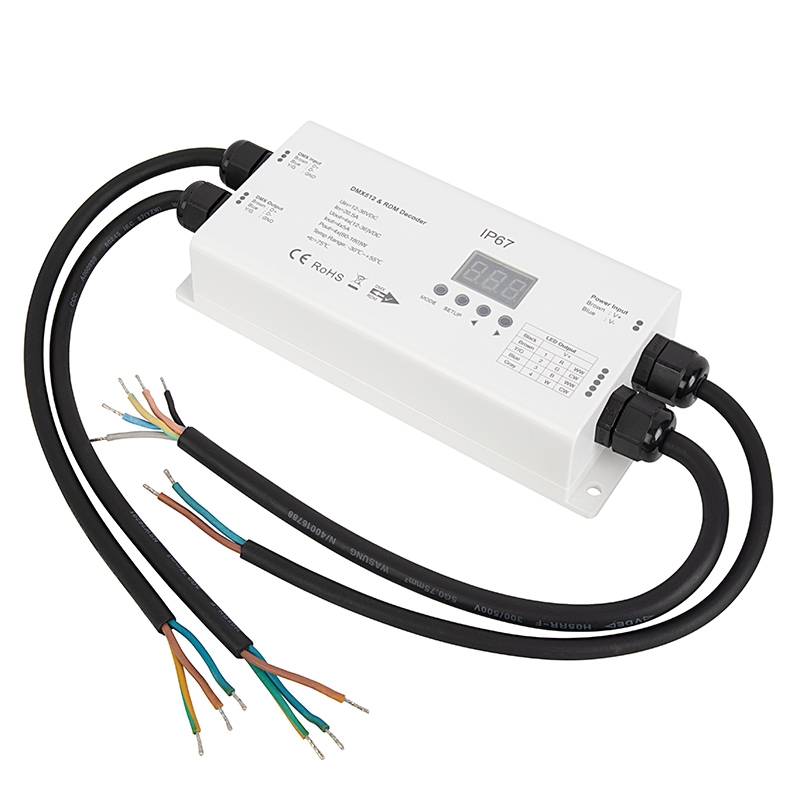

DS series DMX512 Decoder allows LED lights to be connected to and controlled with DMX systems. With a fully waterproof case, the device can be used both indoor or outdoor without the need for a protective enclosure. Digital display with simple buttons make it easy to control LEDs like strip lights or landscape fixtures. Select modes and assign addresses for up to 4 channels, 5 amps per channel, with a maximum power of 60-watts at 12 VDC or 180-watts at 36 VDC.

Pair with a Waterproof LED Strip.

Product Details:

• 1-4 channel configuration
• Wire length on each end: 10.5"
• DMX IN and OUT
• DMX address selction LED display
• 60W-180W
• 12 VDC, 24 VDC, 36 VDC
• Rated IP67 for wet locations
• RoHs, CE certificate
• 5 year warranty

Specifications
Amps:    20.5 Amps
Amps Per Channel:    5 Amps/CH
Channels:    4 Channels
DMX In/Out:    Pigtail
IP Rating:    IP67
Input Connection Type:    Pigtail
Input Voltage Range:    12 VDC, 12-36 VDC, 24 VDC, 36 VDC
Max Output Wattage:    60~180 Watts
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Remote:     DMX512
Standards And Certifications:    CE, RoHS Compliant
Type:    DMX Controller
Volts:    12~36 VDC
Package Weight: 16oz (0.45kg)
Package Dimensions: 7" (18cm) x 4" (10cm) x 3" (8cm)
All specifications are subject to change without notice.
