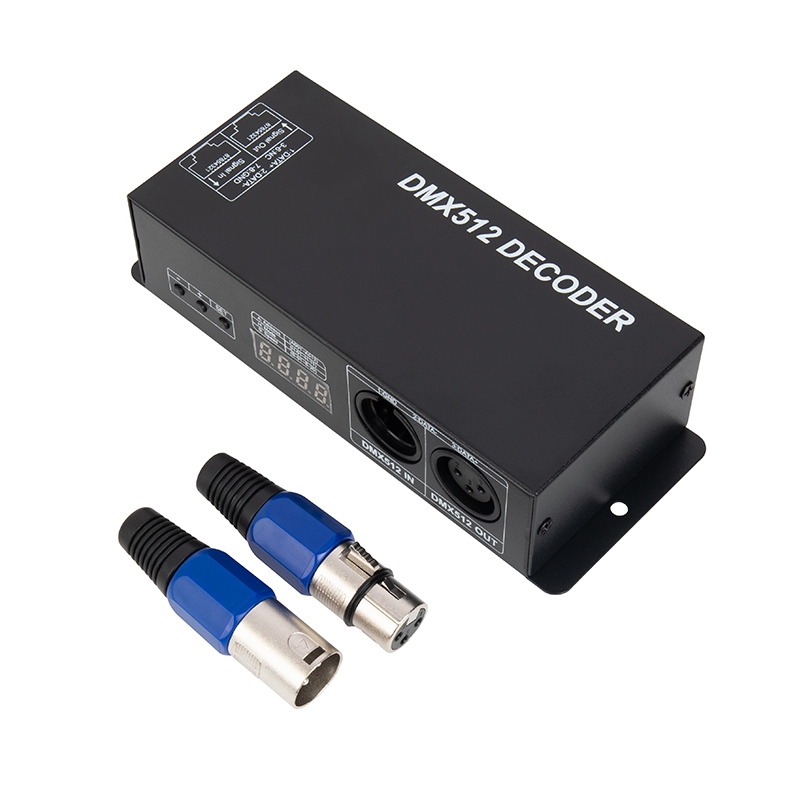

The DMX512 decoder can control up to 3 different constant voltage LED products or any one RGB light bar or strip. Decoder can run in standalone mode using the address digital display or under DMX512 digital control signals using an RJ45 or XLR3 input/output interface. Connect up to 8 amps per channel- 15 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.

Product Details:

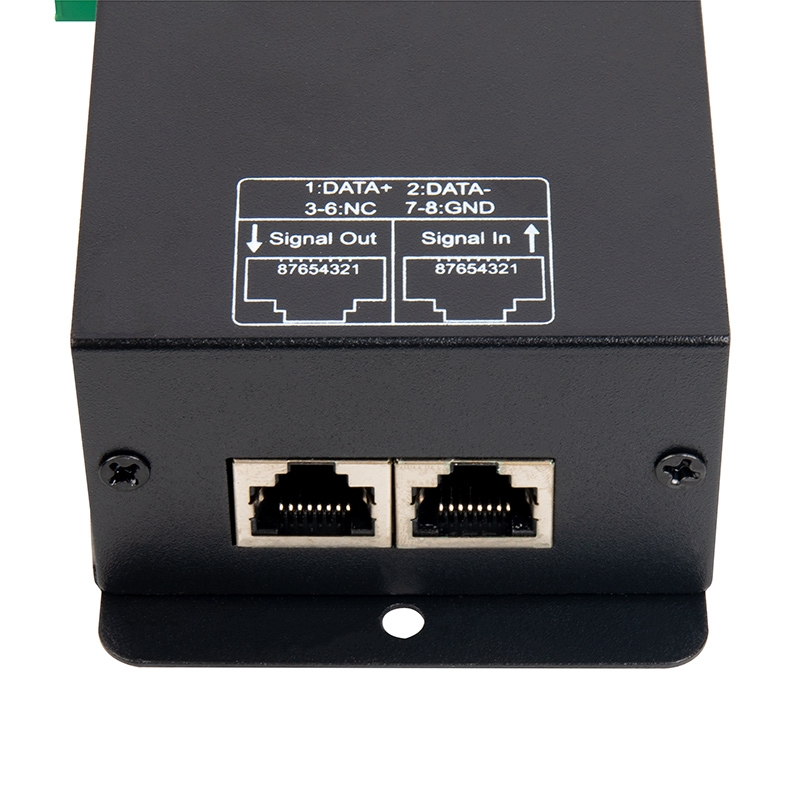

• RJ45 Input/Output

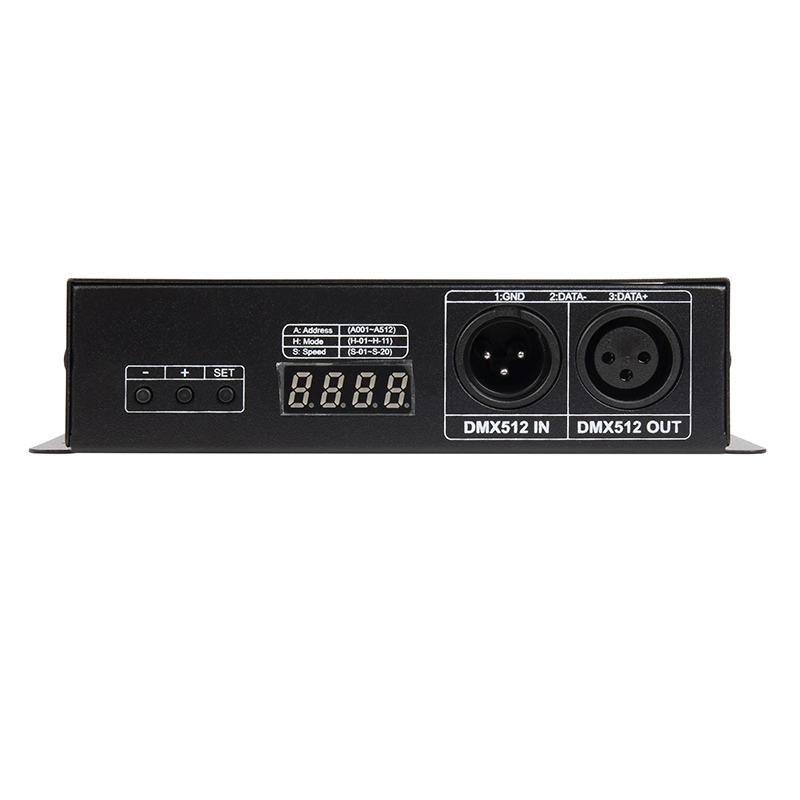

• XLR3 Input/Output
• 12 VDC: 96W per channel, 180W total
• 24 VDC: 192W per channel, 360W total

Specifications
Amps:    15 Amps
Amps Per Channel:    8 Amps/CH
Channels:    3 Channels
Control Type:    DMX512
DMX In/Out:    RJ45, XLR3

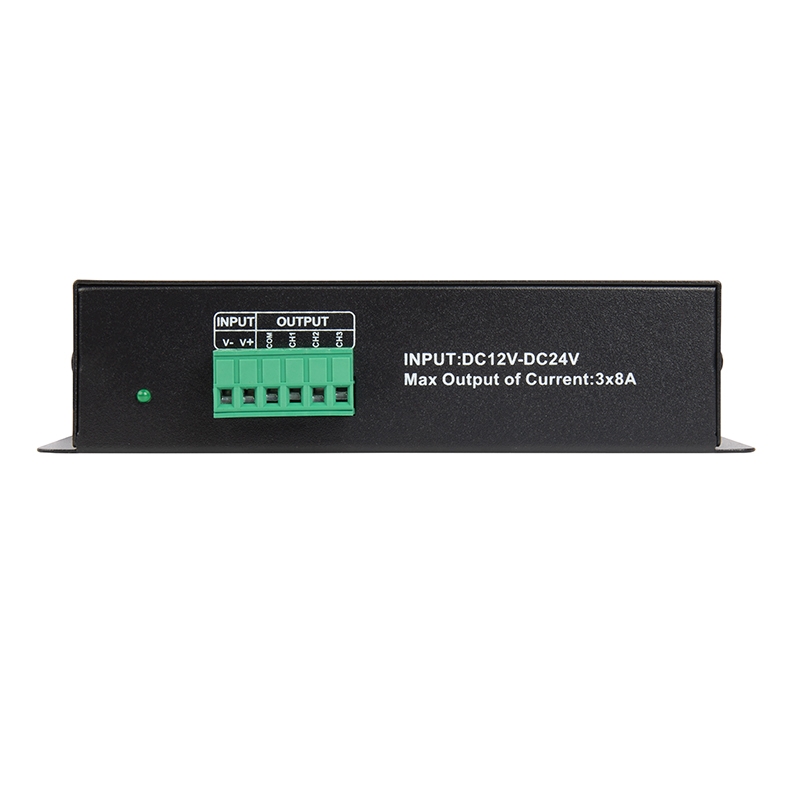

Electrical Connection:    Screw Terminals
Environmental Rating:     Non-weatherproof
IP Rating:     IP20
Material:    Polycarbonate
Max Input Current:    15.5 A
Operating Temperature:    -20~+60 °C (-4~+140 °F)
Operating Voltage:    12~24 VDC
Type:    DMX Controller, DMX Decoder
Wattage:    180W @ 12 VDC, 360W @ 24 VDC
Package Weight: 13.6oz (0.39kg)
Package Dimensions: 7" (18cm) x 3.35" (9cm) x 1.98" (5cm)
All specifications are subject to change without notice.
