LED DMX512 Decoder - 3 Channel - 8 A/CH - 12-24 VDC

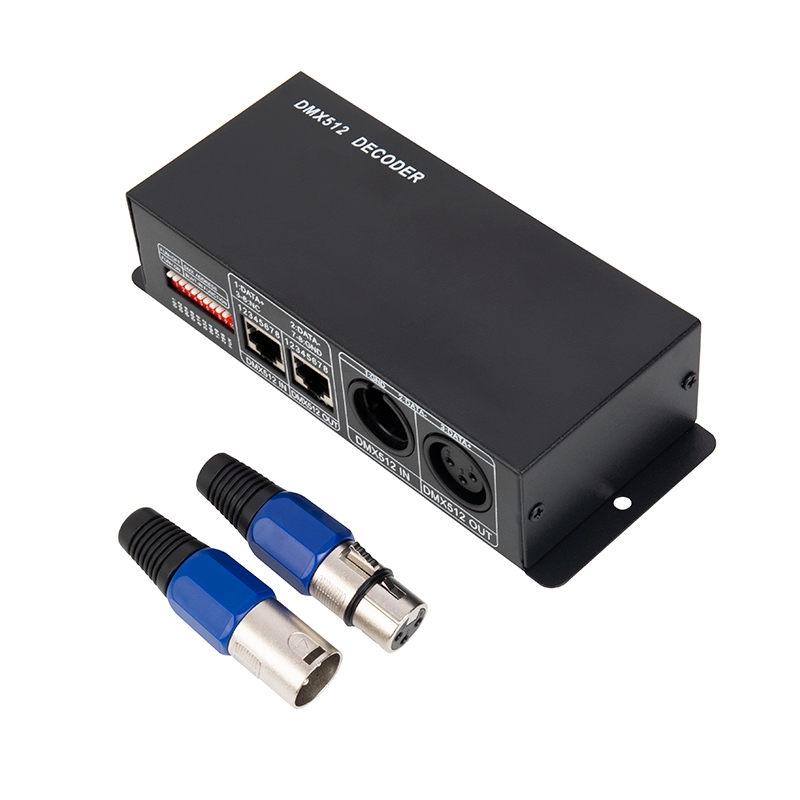

The DMX512 decoder can control up to 3 different LED constant voltage products or any one RGB light bar or strip. Run the decoder under DMX512 digital control signals using the RJ45 or XLR3 input/output interfaces. For manual use, set the starting address of the driver using the DIP switches. Connect up to 8 amps per channel- 15 amps maximum for decoder. The decoder can control a maximum load of 180W using 12 VDC or 360W using 24 VDC. Includes one male and one female XLR3 connector.
Product Details:

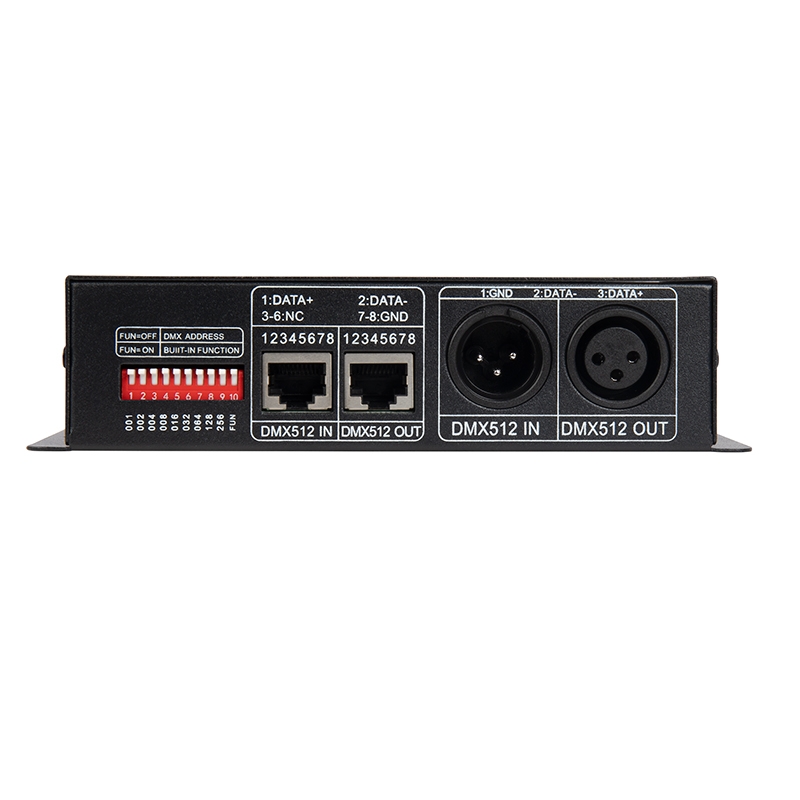

- RJ45 Input/Output
- XLR3 Input/Output
- 12 VDC: 96W per channel, 180W total
- 24 VDC: 192W per channel, 360W total
Specifications
Amps: 15 Amps
Amps Per Channel: 8 Amps/CH
Channels: 4 Channels
Control Type: DMX512
DMX In/Out: RJ45, XLR3

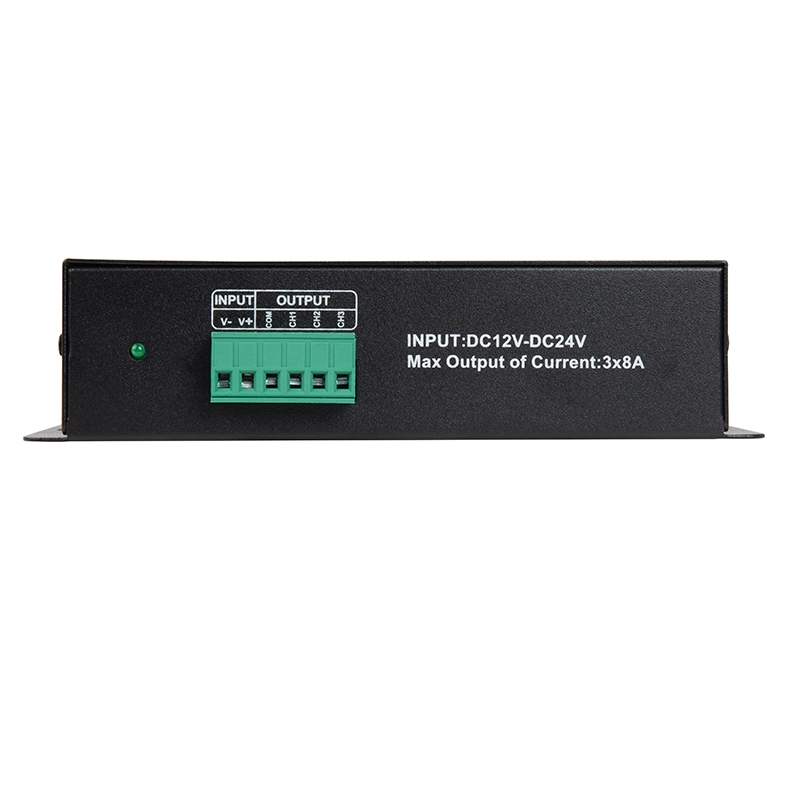

Electrical Connection: Screw Terminals
Environmental Rating: Non-weatherproof
IP Rating: IP20
Material: Polycarbonate
Max Input Current: 15.5 A
Operating Temperature: -20~+60 °C (-4~+140 °F)
Operating Voltage: 12~24 VDC
Type: DMX Controller, DMX Decoder
Wattage: 180W @ 12 VDC, 360W @ 24 VDC
Package Weight: 13.6oz (0.39kg)
Package Dimensions: 7" (18cm) x 3.35" (9cm) x 1.98" (5cm)
All specifications are subject to change without notice.
