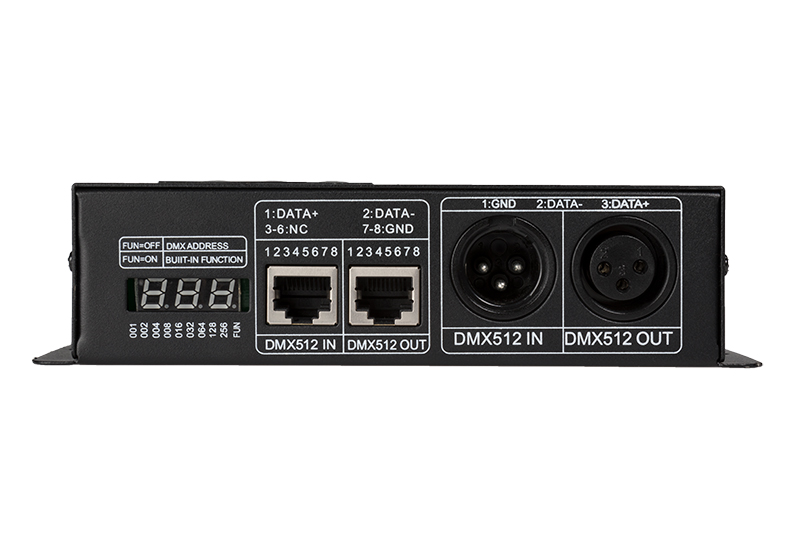

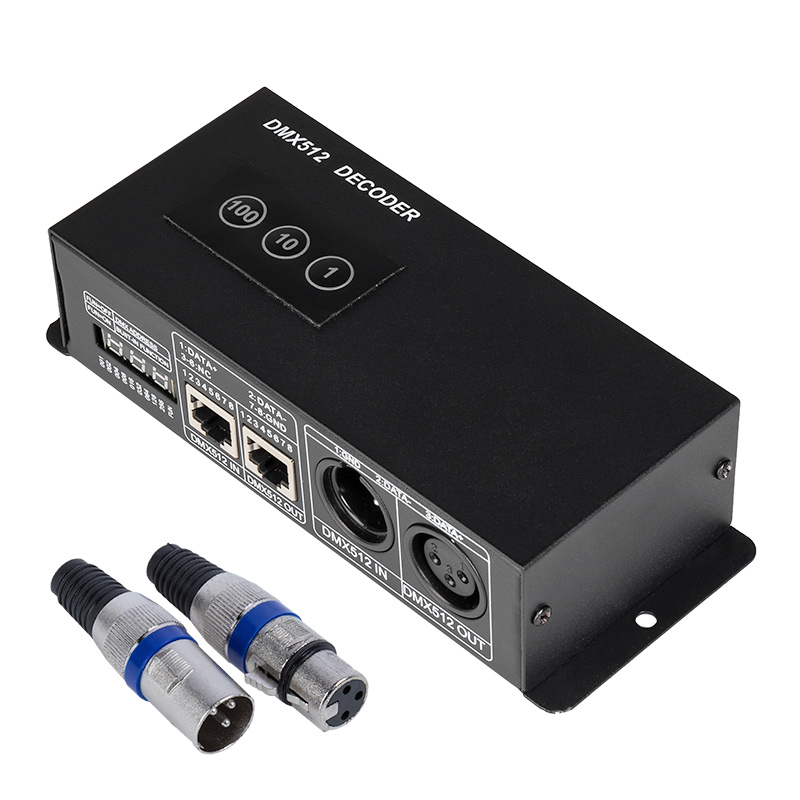

This DMX 512 decoder can control up to 3 different single-color 12-24 VDC LED products or any 1 RGB LED light bar or strip. The decoder can run in stand-alone mode using address code buttons or under DMX512 digital control signals using XLR-3 or RJ45 DMX512 input/output interfaces. The DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by a DMX512 console. The decoder allows for 256 brightness levels. Maximum load is 8 amps per channel. Includes male and female 3-pin XLR connectors.

Specifications
Amps:    8 Amps
Amps Per Channel:    8 Amps/CH
Channels:    3 Channels
Control Type:    DMX512
DMX In/Out:    RJ45, XLR3

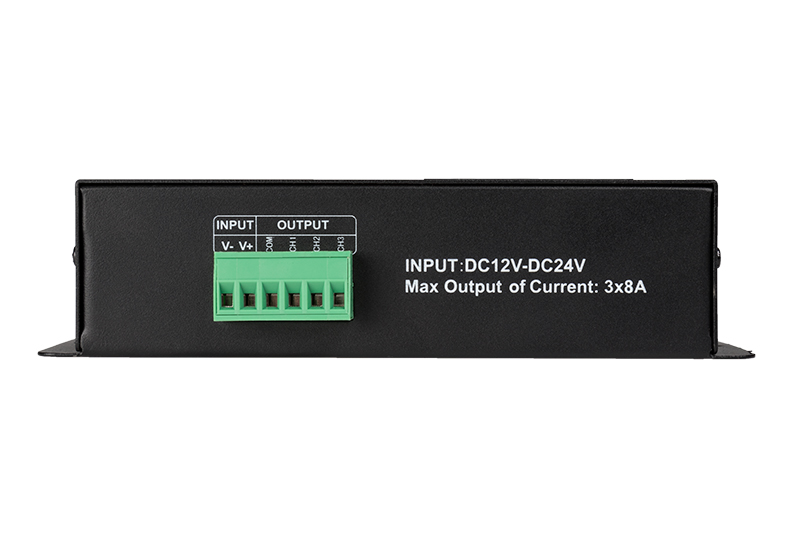

Electrical Connection:    Screw Terminals
IP Rating:     IP20
Operating Temperature:    -40~+85 °C (-40~+185 °F)
Operating Voltage:    12~24 VDC
Type:    DMX Controller
Package Weight: 14.2oz (0.4kg)
Package Dimensions: 7" (18cm) x 3.5" (9cm) x 2" (5cm)
All specifications are subject to change without notice.
