DMX512 SPI Decoder - Digital RGB Addressable LED Decoder/Controller - 5-24 VDC

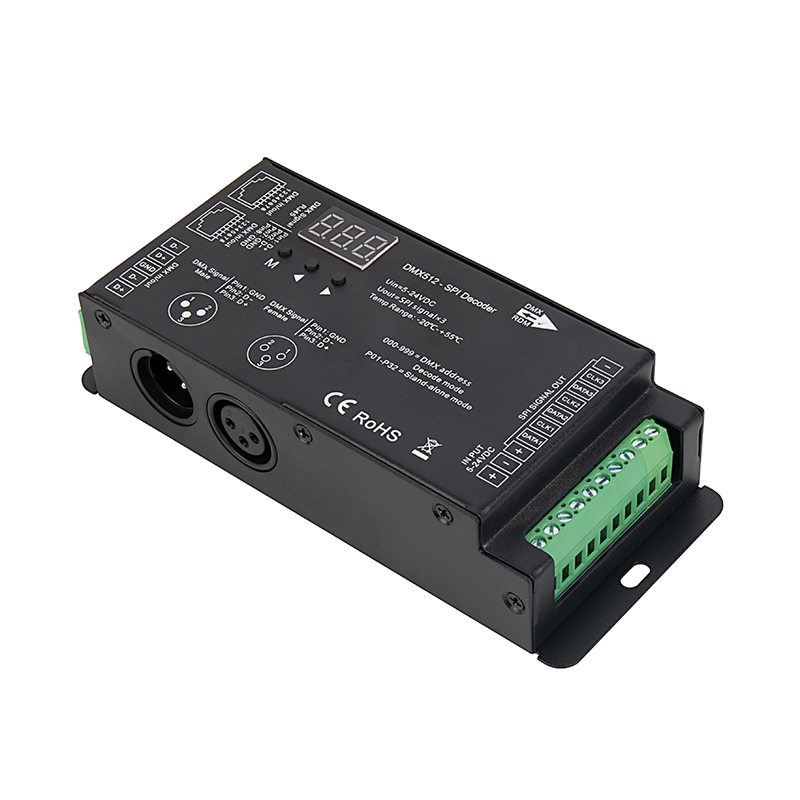

DMX23 series DMX512 Decoder converts DMX signals to an SPI digital signal for controlling digital LED lights. Compatible with several IC chip types (see complete list below), this interface will run anywhere from 5-24 VDC and control up to 900 pixels, making it possible to individually control digital pixel lights, DreamColor LED strip lights, and other modules with compatible IC chip types. Choose from among 32 dynamic color-chasing patterns and adjust brightness and speed with the user-friendly digital display and arrow buttons. Or, pair with optional remote control (sold separately) for wireless control from a distance of nearly 100ft.
Compatible IC Types: TM1803, TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912, UCS2903, UCS2909, UCS2912, WS2811,WS2812, TM1829, TLS3001, TLS3002, GW6205, MBI6120, TM1814B, SK6812, UCS8904B, LPD6803, LPD1101, D705, UCS6909, UCS6912, LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, TM1914A
Product Details:

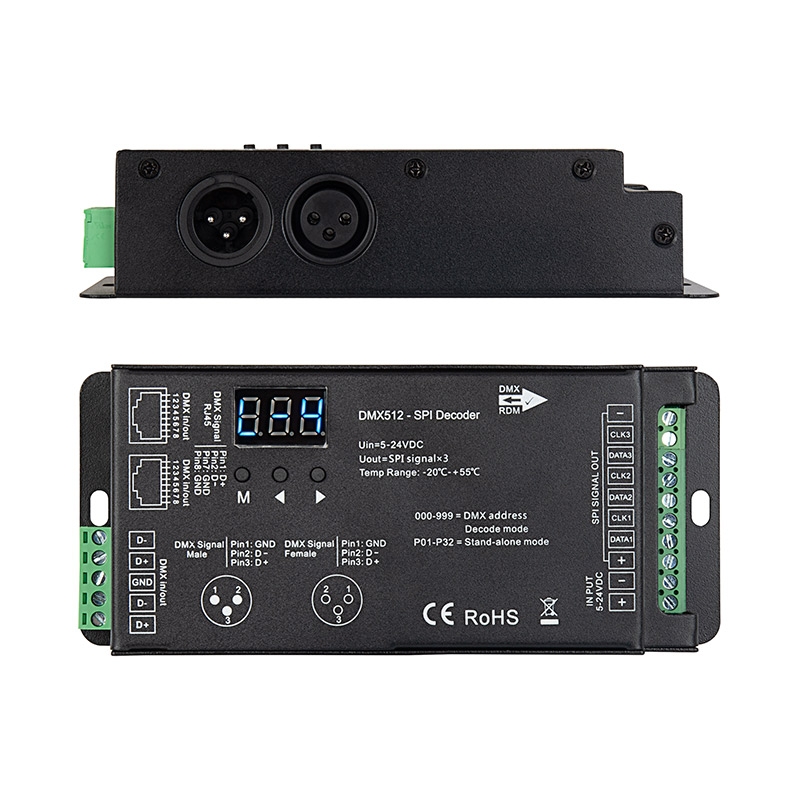

- 3-pin XLR, RJ45 and screw terminal DMX signal IN and OUT
- Connection type: CLK, DATA
- Integrated mounting tabs
- Standard DMX512 compliant interface: set DMX decode start address with buttons and digital display

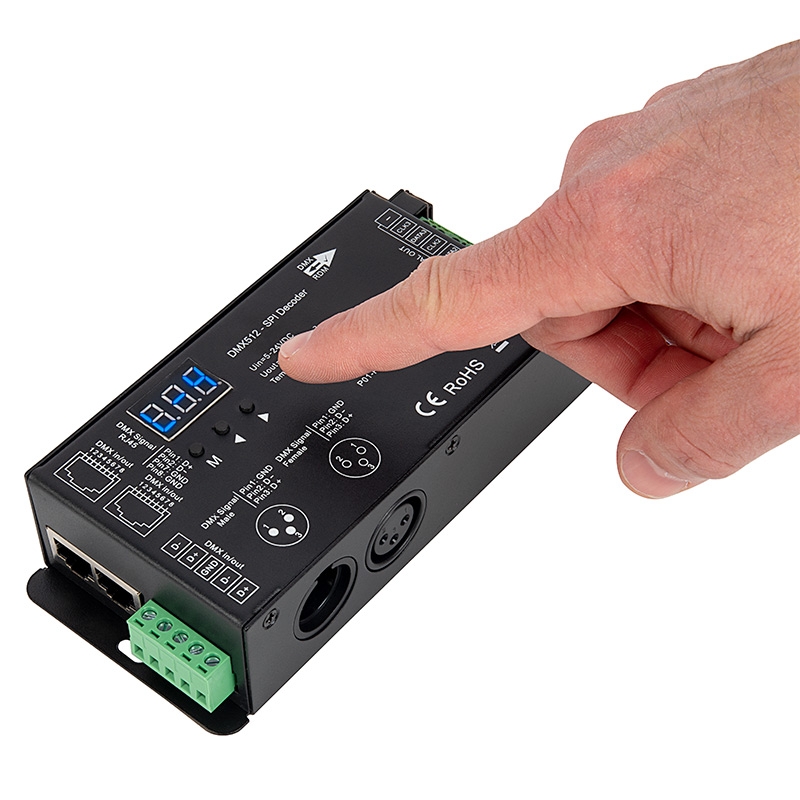

- Under stand-alone mode: change mode, speed or brightness with buttons and digital display

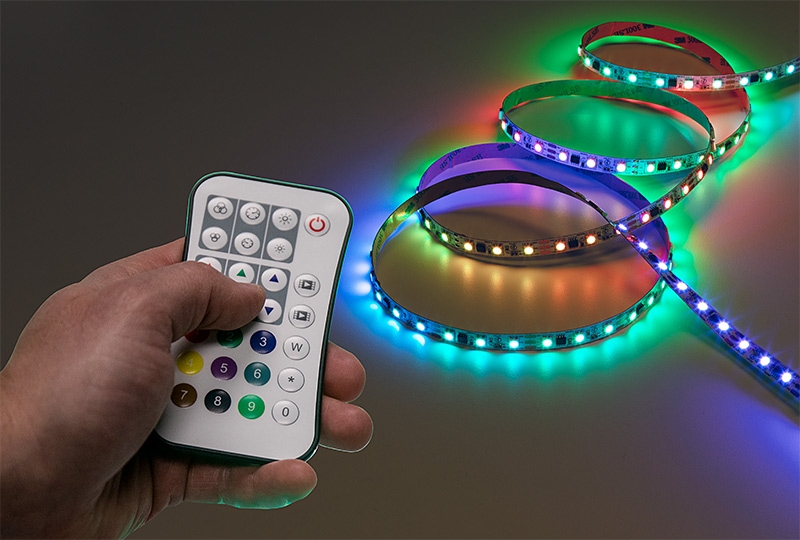

- Under RF mode, use compatible RF 2.4G remote control
- Operating temperature: -22°–131° F (-30°–55° C)
- Rated IP20 - suitable for damp locations
- CE, FCC
Specifications

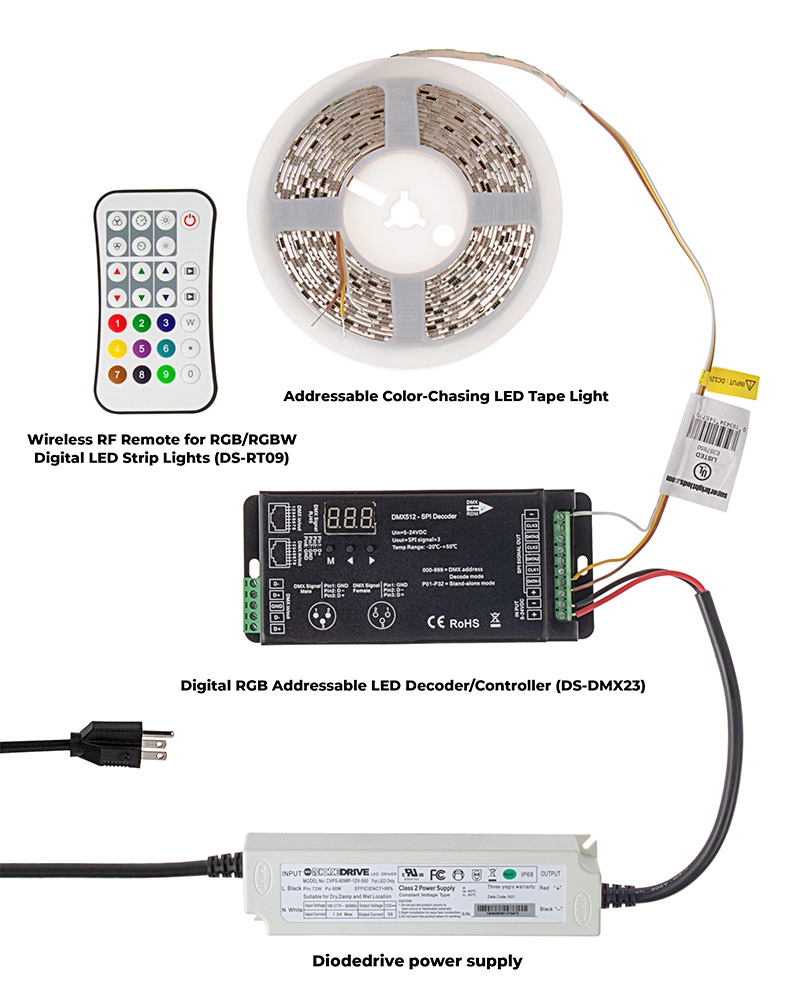

Component Type: DMX512 to SPI decoder/controller (pairs with DS-RT09)
DMX In/Out: RJ45 (x2), Screw Terminals, XLR3 (one male, one female)
Finish: Black
IP Rating: IP20
Input Voltage Range: 5-24 VDC
Material: Steel Case
Operating Temperature: -30~+55 °C (-22~+131 °F)
Output Voltage: Matches Input
Receiving Range: 98.4 ft (30 m)
Standards And Certifications: CE, FCC, RoHS Compliant
Type: DMX Controller
Wattage: 1 W (input)
Wireless Signal Type: 2.4 GHz RF
Package Weight: 12.9oz (0.37kg)Package Dimensions: 6.5" (17cm) x 3" (8cm) x 1.5" (4cm)
All specifications are subject to change without notice.
