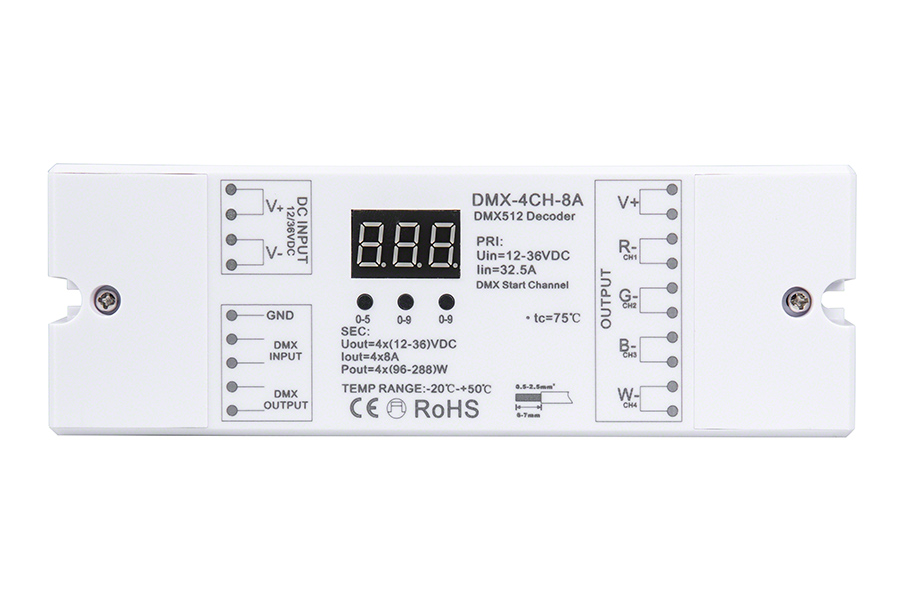

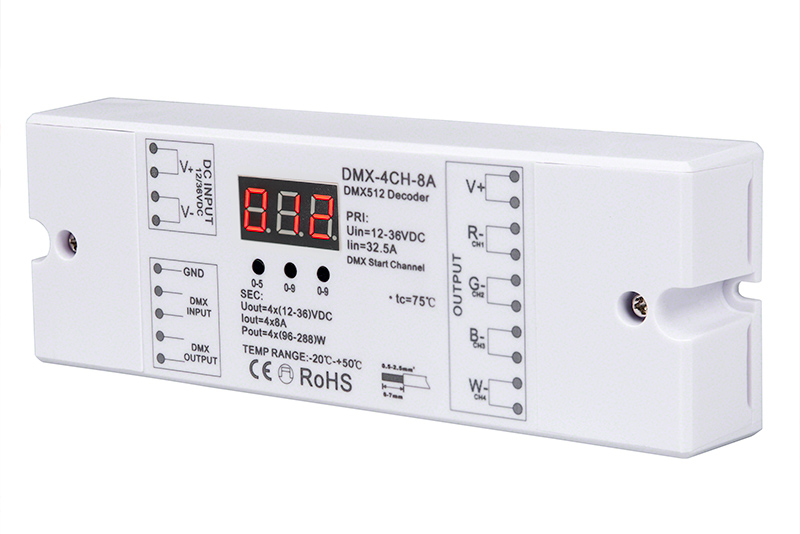

    8 Amp 4 Channel DMX 512 Decoder for LED DMX Controllers - Address Digital Display

      (5 Reviews) | Write a review
    SKU: DMX-4CH-8A
    Discontinued
    Starting at: $57.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    This 4 channel DMX512 decoder controls up to 4 different 12 VDC LED products or any 1 RGBW LED light bar or strip. DMX address is easily set using push button switches under display. Receives DMX512 digital control signals via 3 wire terminal strip connection. DMX decoding driver converts universal DMX512/1990 digital signal to PWM signal, which can be controlled by DMX512 console with 8-bit gray scale output per channel. Maximum load 8 amps per channel—32 amps total.

    Specifications
    Amps:    32 Amps
    Amps Per Channel:    8 Amps/CH
    Channels:    4 Channels
    Control Type:    DMX512

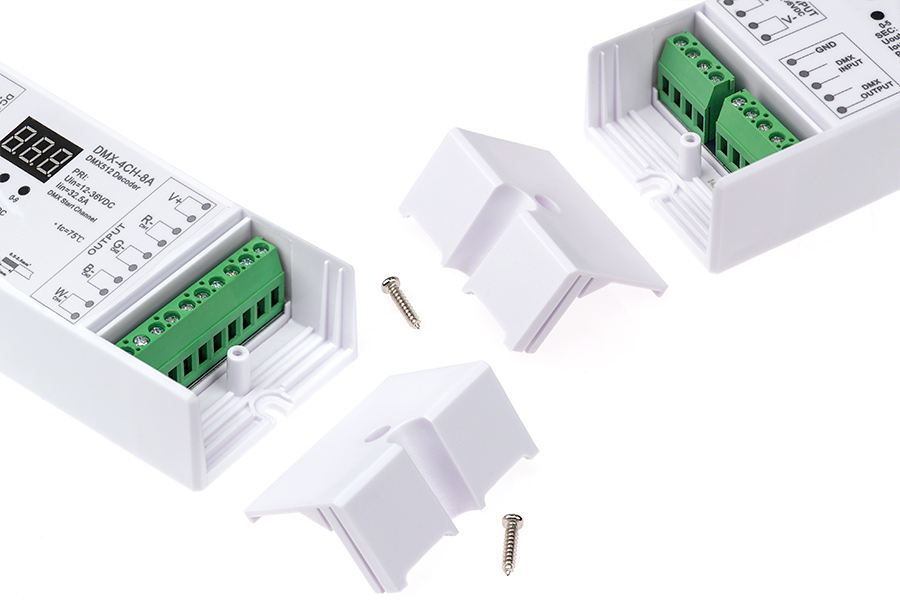

    DMX In/Out:    Screw Terminals
    IP Rating:    IP20
    Input Connection Type:    Screw Terminals
    Input Voltage Range:    12 VDC
    Standards And Certifications:    RoHS Compliant
    Type:    DMX Controller
    Volts:    12~36 VDC
    Package Weight: 13.4oz (0.38kg)
    Package Dimensions: 7" (18cm) x 2.5" (6cm) x 1.5" (4cm)
