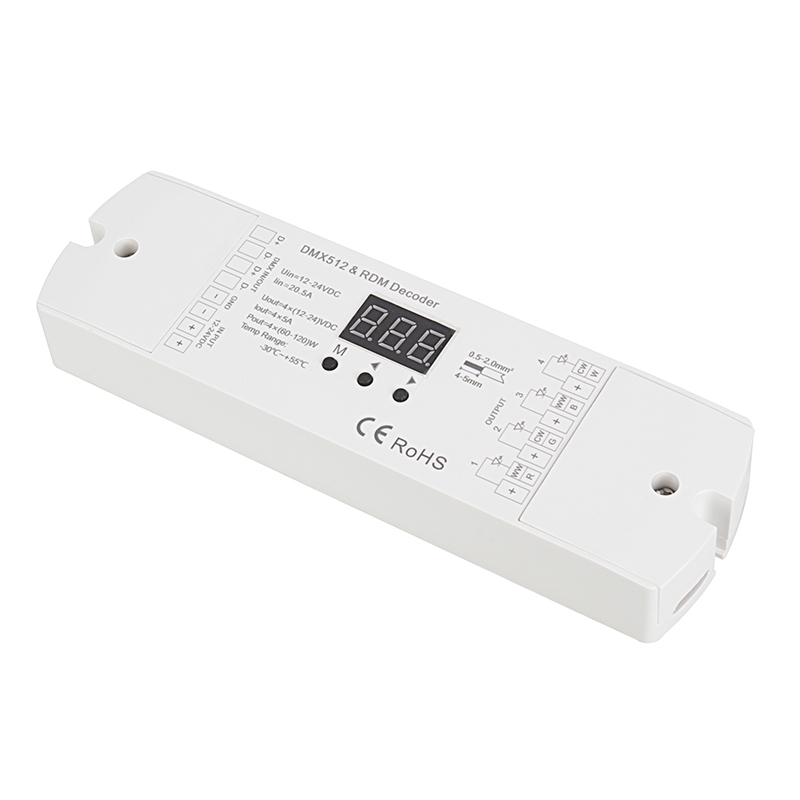

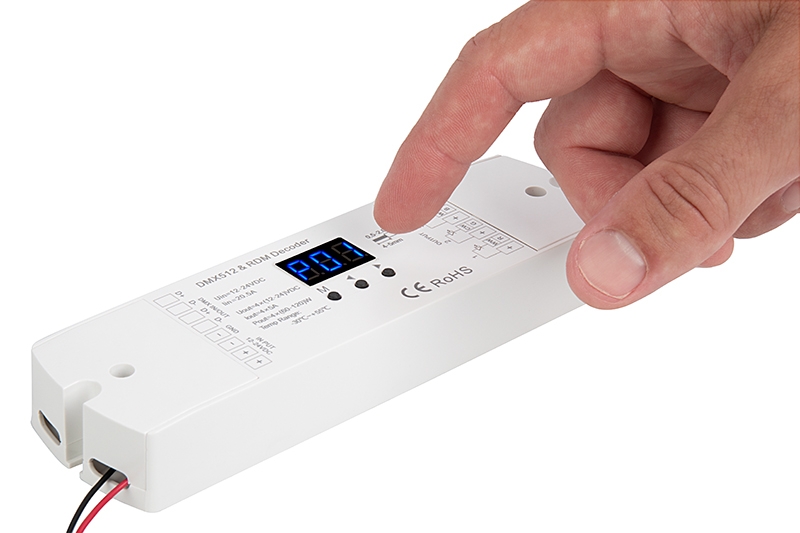

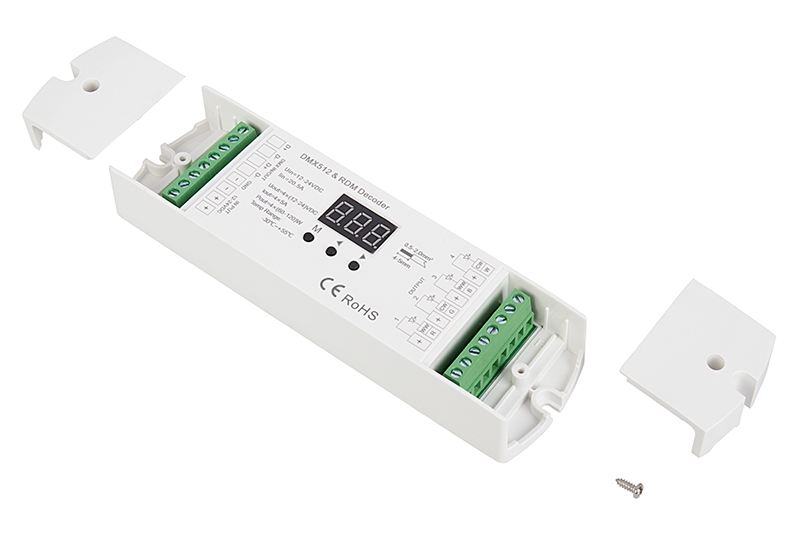

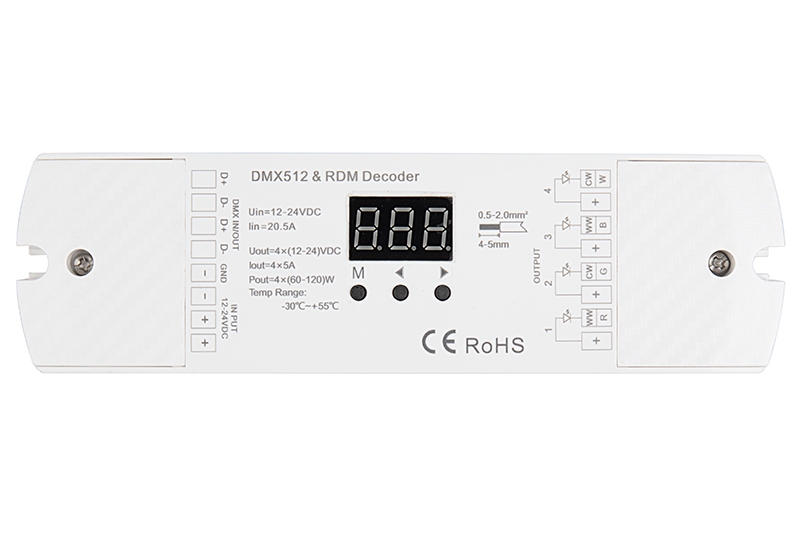

    4 Channel LED DMX512 Decoder - 5A/CH - 12-24V - Digital Display - 60-120W

      (10 Reviews) | Write a review
    SKU: DS-DMX45
    Discontinued
    Starting at: $45.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    DS series 4 Channel DMX Decoder allows up to 4 channels of LEDs to be controlled from existing DMX systems. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 4 channels, it allows a max of 5A and 120W per channel. Stand-alone function works as an RGB controller when no DMX signal is present. This feature includes 30 built-in RGB programs with adjustable speed and brightness levels.

    Product Details:

    • 1-4 channel configuration
    • DMX IN and OUT
    • DMX address selction LED display
    • Standalone function with RGB-W Programs
    • 60-120 W per channel (depending on voltage)
    • 12 VDC, 24 VDC
    • Rated IP20 for dry locations
    • RoHs, CE certificate
    • 5 year warranty

    Specifications
    Amps:    20.5 Amps
    Amps Per Channel:    5 Amps/CH
    Channels:    4 Channels
    DMX In/Out:    Screw Terminals
    IP Rating:    IP20
    Input Connection Type:    Screw Terminals
    Input Voltage Range:    12-24 VDC
    Max Output Wattage:    60-120 W / channel (depending on voltage)
    Operating Temperature:    -30~+55 °C (-22~+131 °F)
    Output Current:    5.0 Amps
    Remote:     DMX512
    Standards And Certifications:    CE, RoHS Compliant
    Type:    DMX Controller
    Package Weight: 16oz (0.45kg)
    Package Dimensions: 7" (18cm) x 2.5" (6cm) x 1.5" (4cm)
    All specifications are subject to change without notice.
