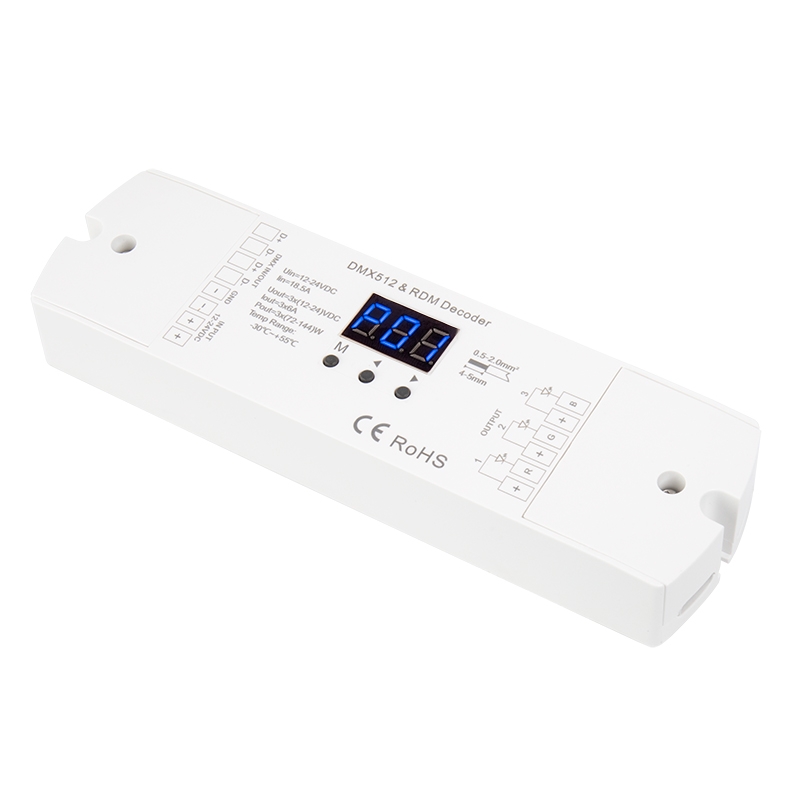

DS series 3 Channel DMX Decoder allows up to 3 channels of LEDs to be controlled from existing DMX systems. It features both DMX decoder and master functions that are easy to switch between. RDM bi-directional communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 3 channels, it allows a max of 6A and 144W per channel. Stand-alone function works as an RGB controller when no DMX signal is present. This feature includes 30 built-in RGB programs with adjustable speed and brightness levels.

Product Details:

• 12 VDC, 24 VDC
• Green terminal DMX signal IN and OUT
• Max load current 18A
• PWM frequency 2000/500Hz selectable
• Operating temperature: -22°–131° F (-30°–55° C)
• CE certificate
• Protected against: overheat, overload, and short circuit protection
• Rated IP20 for dry locations

Specifications
Amps Per Channel:    6 Amps/CH
Certifications/Compliance:    CE
Channels:    3 Channels
Control Type:    DMX512
DMX In/Out:    Screw Terminals
Electrical Connection:    Screw Terminals
IP Rating:     IP20
Input Voltage Range:    12-24 VDC
Max Input Current:    18.5 A
Max Output Current:    6 A per channel (x3)
Max Output Wattage:    72–144 W / channel (depending on voltage)
Operating Temperature:    -30~+55 °C (-22~+131 °F)
Operating Voltage Range:    12~24 VDC
Product Materials:    Plastic
Type:    DMX Controller
Package Weight: 4.6oz (0.13kg)
Package Dimensions: 7" (18cm) x 2.25" (6cm) x 1" (3cm)
All specifications are subject to change without notice.
