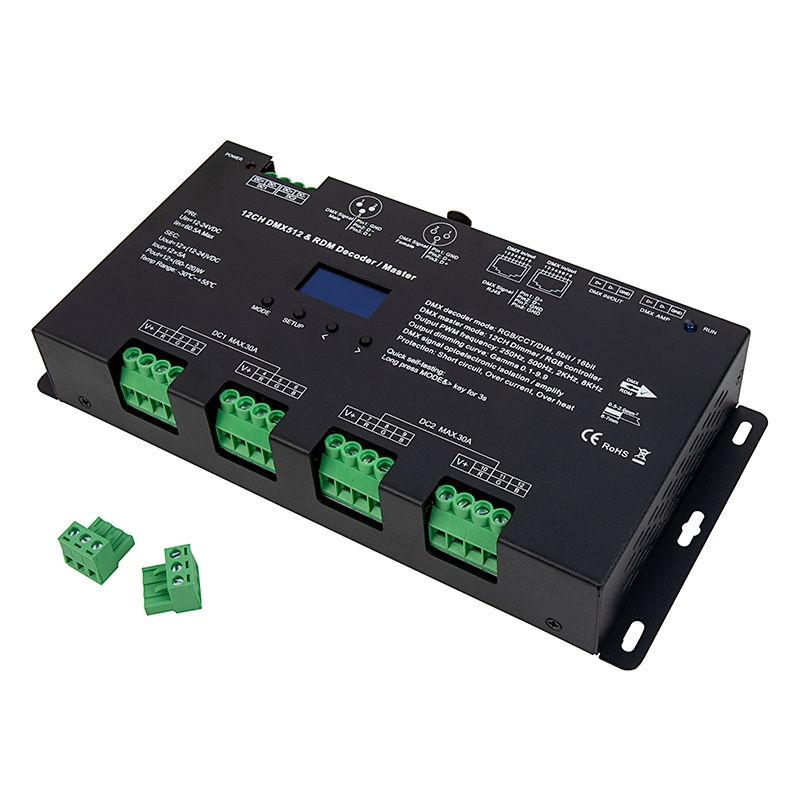

    12 Channel LED DMX512 and RDM Decoder / Master - 5A/CH - 12-24V - OLED Display

      (7 Reviews) | Write a review
    SKU: DS-DMX125
    Discontinued
    Starting at: $199.95
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    DS series 12 Channel DMX512 and RDM Decoder converts DMX and RDM signals to PWM for single color, CCT and/or RGB LED lighting products. It features both DMX decoder and master functions that are easy to switch between. RDM bi-direction communication enables the DMX console to detect and display decoder information and set DMX addresses. With a total of 12 channels, it allows a max of 5A and 120W per channel for controlling larger projects.

    Selectable 16bit (65536 levels) or 8bit (256 levels) grey levels customize the smoothness of color fades. Choose between 4 PWM frequencies, with a maximum of 8000Hz to reduce flicker and enhance quality for audiovisual applications. Settings and features are easily accessible with OLED display menus and operated with 4 control buttons. 3-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation and signal amplifier function improves signal transmission efficiency and anti-interference. Common anode screw-down terminals for connection to LED light strips or fixtures. Stand alone function allows for easy testing, as well as control of RGB LEDs when no DMX signal is present. This feature includes 10 built-in RGB programs with adjustable speed and brightness levels.

    Product Details:

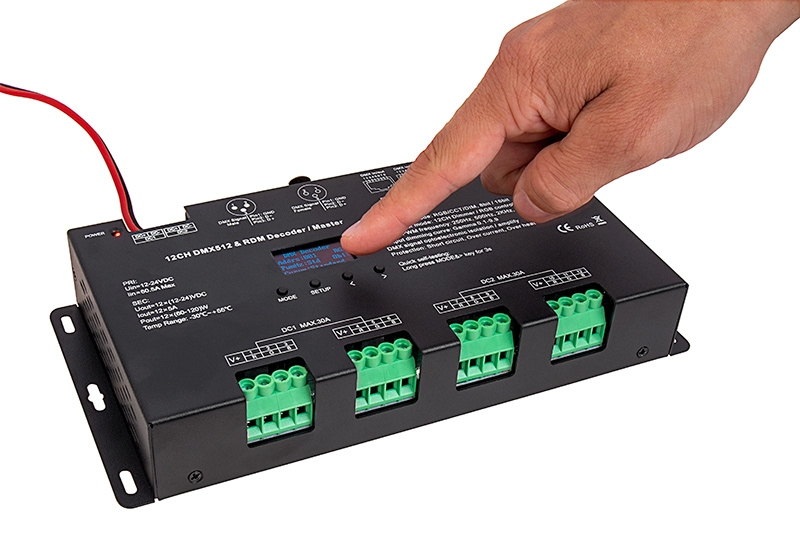

    • Easy operation with OLED display and 4 buttons
    • PWM frequency 250/500/2000/8000Hz selectable
    • 16bit (65536 levels) /8bit (256 levels) grey level selectable
    • Output dimming curve gamma value 0.1-9.9 selectable
    • Protects against: over-heat, over-load, short circuit
    • 1-12 channel configuration
    • Max load current: 60.5A

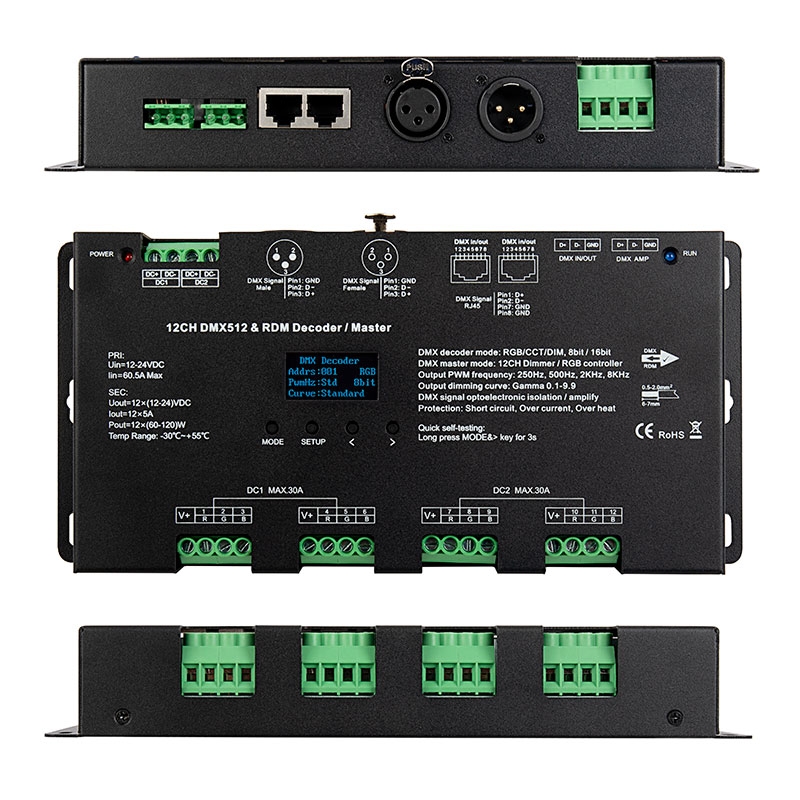

    • 3-pin XLR, RJ45 and green terminal DMX interface with photoelectric isolation and signal amplifier
    • DMX address selection OLED display
    • 60W at 12V or 120W at 24V
    • Rated IP20 for dry locations
    • RoHs, CE certificate, FCC
    • 5 year warranty

    Specifications
    Amps Per Channel:    5 Amps/CH
    Channels:    12 Channels
    Remote:    DMX512
    Dimensions:    9.7" x 4.57" x 1.55"
    DMX In/Out:    RJ45, Screw Terminals, XLR3
    Input Voltage Range:    12-24 VDC
    IP Rating:    IP20
    Max Input Current:    60.5 A
    Max Output Wattage:    60–120 W / channel (depending on voltage)
    Operating Temperature:    -30~+55 °C (-22~+131 °F)
    Output Current:    5 A x 12 CH, max 60 A
    Product Weight:    1lb 15oz (0.88kg)
    Standards And Certifications:    CE, FCC, RoHS Compliant
    Type:    DMX Controller
    Volts:    12~24 VDC
    Package Weight: 2lb 1.5oz (0.95kg)
    Package Dimensions: 10" (25cm) x 4.75" (12cm) x 1.75" (4cm)
    All specifications are subject to change without notice.
