Vollong 5W White High Power LEDs

(8 Reviews) | Write a review

SKU: VL-H01xWx5

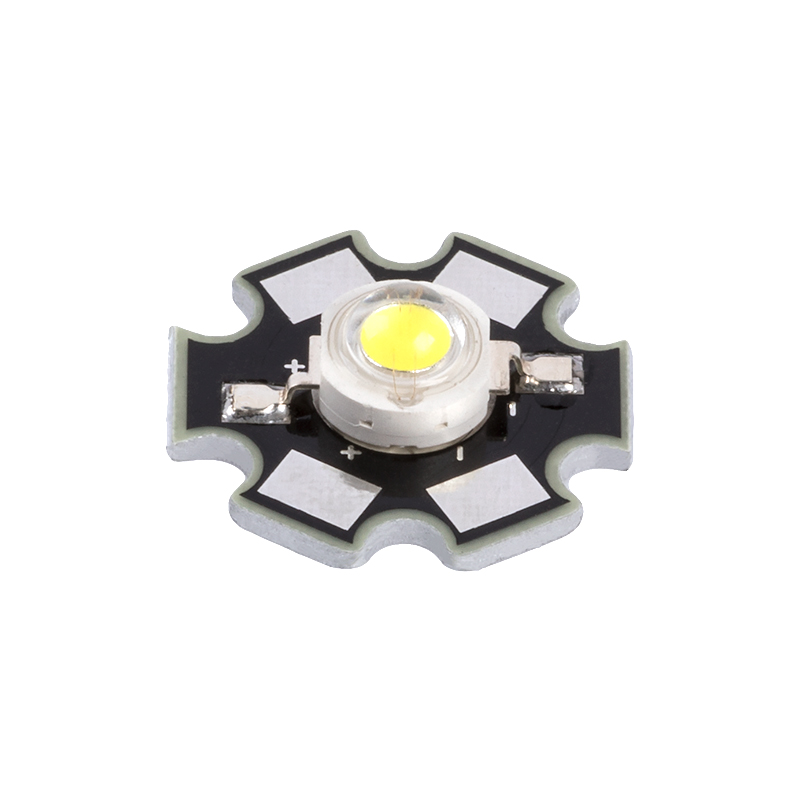

Vollong 5 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heat sinks. Up to 350 lumen with wide 125 degree viewing angle. Price for each.

Specifications
Continuous Forward Current:   800mA
Forward Voltage:   7.0V
LED Package:   14.5 mm x 7.5 mm
Maximum Forward Voltage:   7.5V
Maximum LED Junction Temperature:   120
Operating Temperature:   -35~+50 °C (-31~+122 °F)
Peak Forward Current:   2000mA
Power Dissipation:   5W
Reverse Current:   30
Reverse Voltage:   10V
Storage Temperature:   -35~+100 °C
Type:   Star PCB Board
Viewing Angle:   125 degree
Wattage:   5 Watts
Package Weight: 0.07oz (0kg)
Package Dimensions: 0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
All specifications are subject to change without notice.
