Vollong 3W White High Power LEDs

(0 Reviews) | Write a review

SKU: VL-H01WW30003180

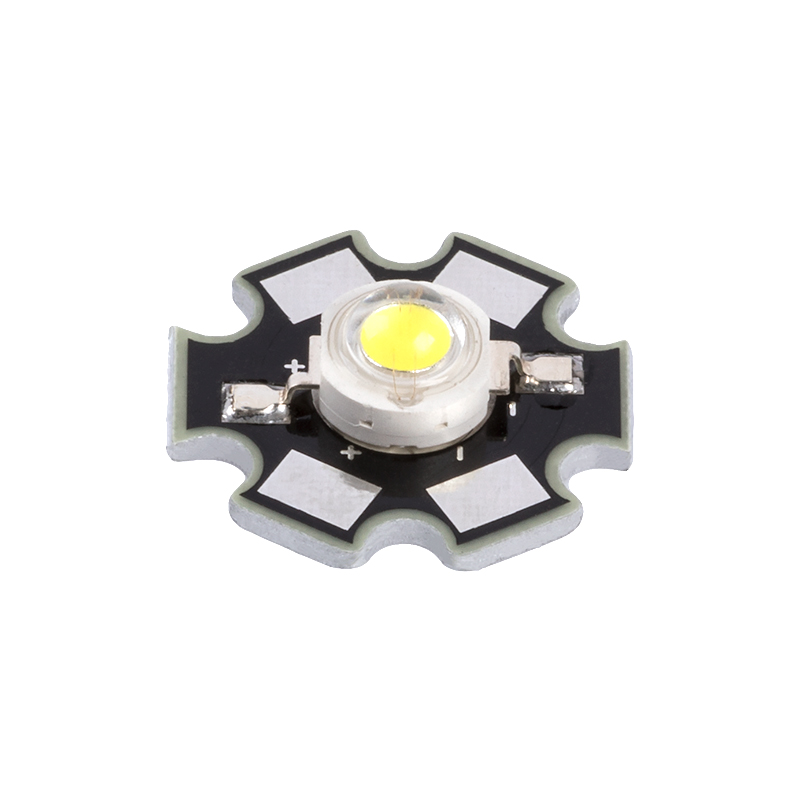

Vollong 3 Watt High Power White LEDs. LED package mounted on 20mm diameter Star PCB heatsinks. Up to 200 lumen with wide 120 degree viewing angle.

Specifications
Continuous Forward Current:   750 mA
Forward Voltage:   3.6V
LED Package:   14.5 mm x 7.5 mm
Maximum Forward Voltage:   4V
Maximum LED Junction Temperature:   120
Operating Temperature:   -35~+50 °C (-31~+122 °F)
Peak Forward Current:   1000mA
Power Consumption:   3 Watts
Power Dissipation:   3W
Reverse Current:   10µA
Reverse Voltage:   5V
Storage Temperature:   -40~+100 °C
Type:   Star PCB Board
Viewing Angle:   120 degree
Package Weight: 0.07oz (0kg)
Package Dimensions: 0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
All specifications are subject to change without notice.
