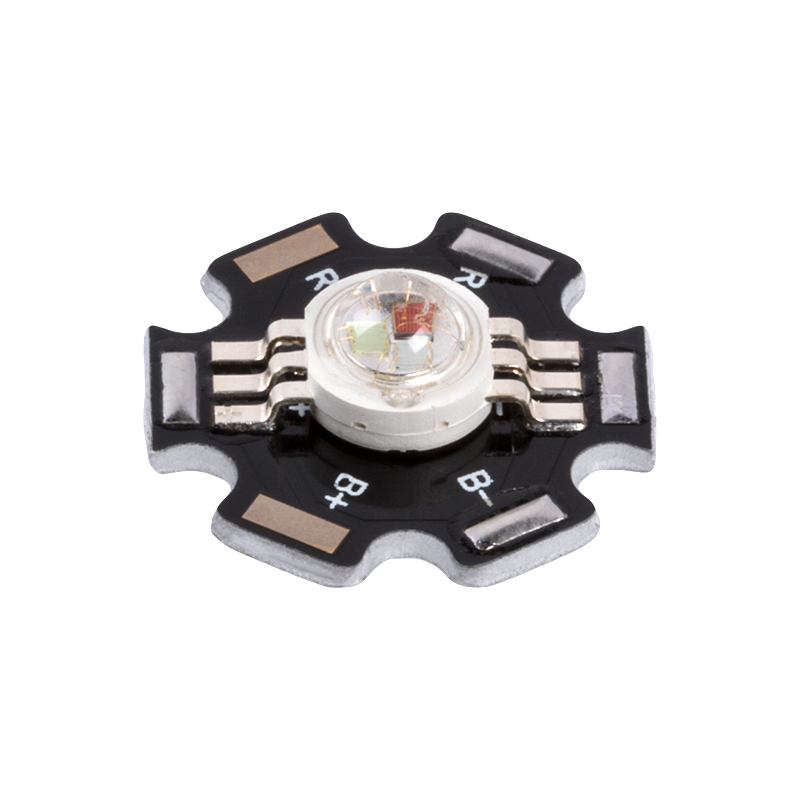

Vollong 3W RGB High Power LED

(0 Reviews) | Write a review

SKU: VL-H01RGB00302

Vollong 3 Watt high power RGB LED. 465nm/525nm/625nm wavelength, 43,000mcd. with 120 degree viewing angle. See spectral graph for actual wavelength measurement.

Specifications
Continuous Forward Current：   350 mA, 400 mA
Forward Voltage：   2.5V, 3.4V
LED Color：   RGB
LED Package：   14.5 mm x 7.5 mm
Lumen：   20 Lumen, 55 Lumen, 60 Lumen
Maximum Forward Voltage：   2.8V, 3.8V
Maximum LED Junction Temperature：   120
Millicandela：   43000mcd
Operating Temperature：   -35~+50 °C (-31~+122 °F)
Peak Forward Current：   800mA
Reverse Voltage：   5V
Storage Temperature：   -35~+50 °C
Type：   Star PCB Board
Viewing Angle：   120 degree
Wavelength：   465 nm, 525 nm, 625 nm
Package Weight: 0.07oz (0kg)Package Dimensions: 0.83" (2cm) x 0.48" (1cm) x 0.48" (1cm)
All specifications are subject to change without notice.
