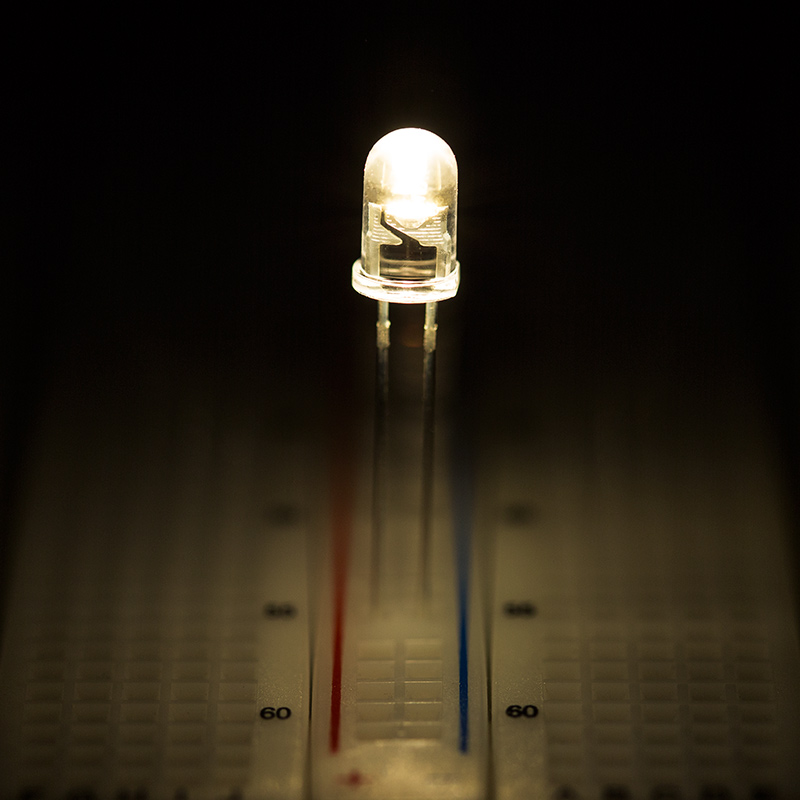

5mm Warm White LED - 3100K - T1 3/4 LED w/ 35 Degree Viewing Angle
5mm through hole component LED in warm white. Features 7,000 millicandela, 3100K color temperature, and a 35 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
CCT Value: 3100K
Continuous Forward Current: 30 mA
Forward Voltage: 3.2V
LED Color: Warm White
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 2 Lumen
Maximum Forward Voltage: 3.4V
Millicandela: 7000mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 100mA
Power Consumption: 0.096 Watts
Power Dissipation: 120mW
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Tube Diameter: T1-3/4
Viewing Angle: 35 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
