    5mm Red LED - 628 nm - T1 3/4 LED w/ 60 Degree Viewing Angle

      (1 Reviews) | Write a review
    SKU: RL5-RD1560
    Discontinued
    Starting at: $0.18
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

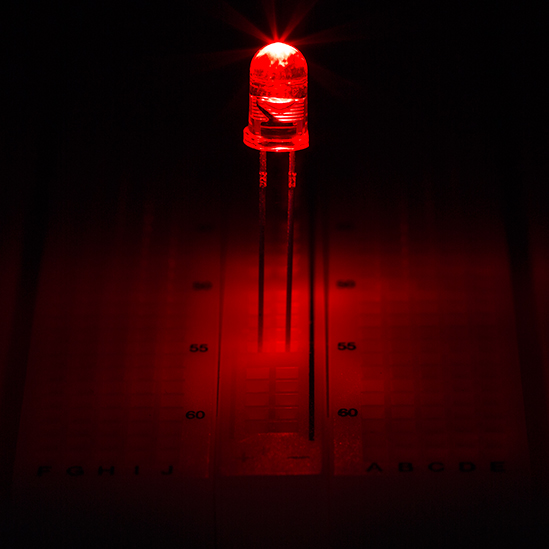

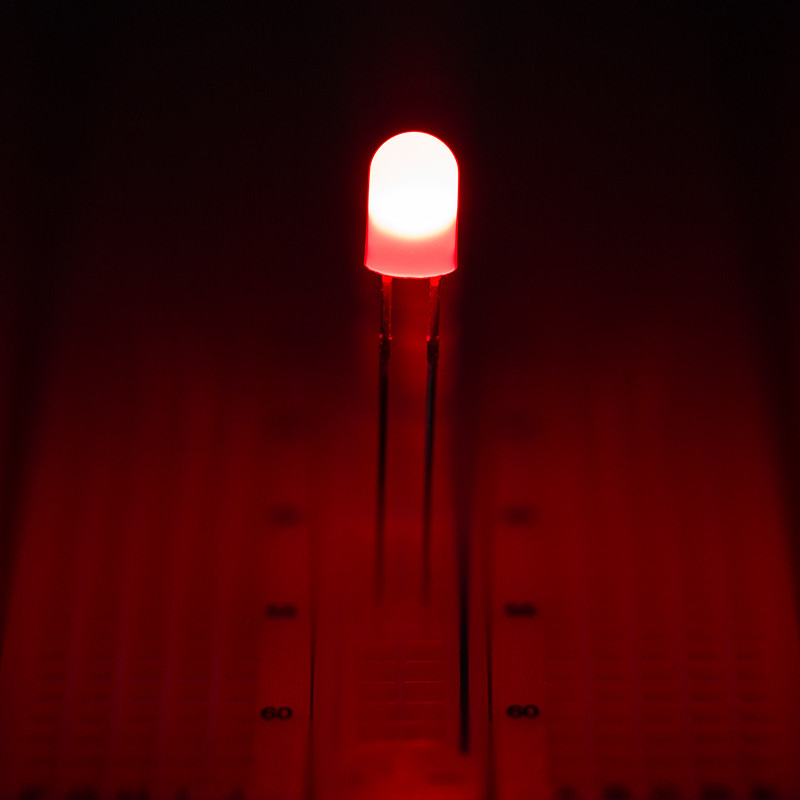

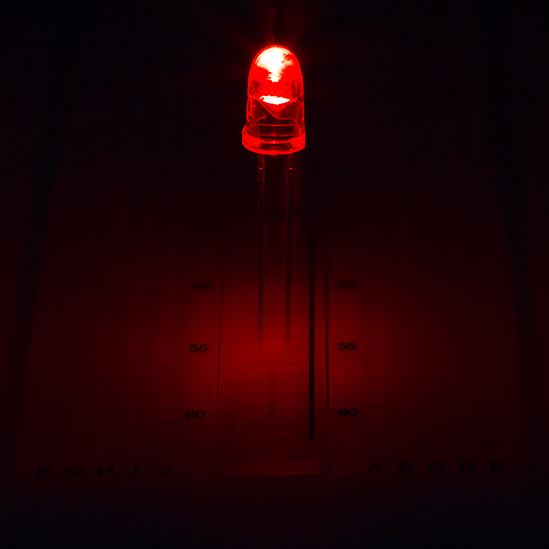

    5mm through hole component LED in red. Features 1,500 millicandela, 628nm wavelength, and a 60 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

    Specifications
    Continuous Forward Current:    50 mA
    Forward Voltage:    2.2V
    LED Color:     Red
    LED Package:    5 mm (T-1 3/4)
    Lens:    Diffused
    Lumen:    1.2 Lumen
    Maximum Forward Voltage:    2.6V
    Millicandela:    1500mcd
    Operating Temperature:    -25~+85 °C (-13~+185 °F)
    Peak Forward Current:    100mA
    Power Consumption:    0.11 Watts
    Power Dissipation:    150mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+100 °C
    Tube Diameter:    T1-3/4
    Viewing Angle:    60 degree
    Wavelength:    628 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
