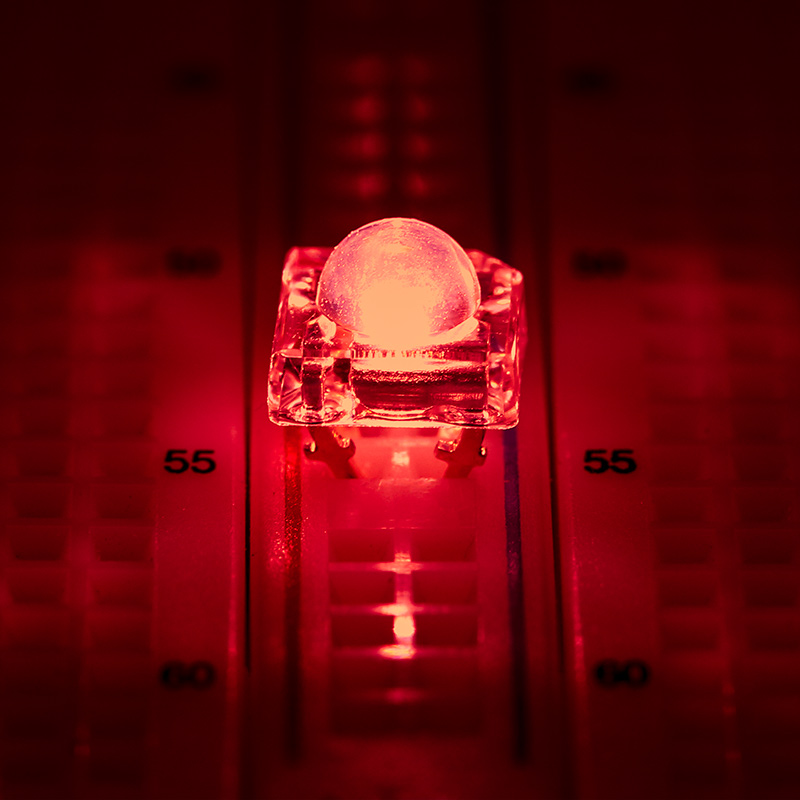

5mm Red High Flux LED - 630 nm - 90 Degree Viewing Angle
5mm High Flux Red LED featuring a 630nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low-profile package. See Spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.2V
LED Color: Red
LED Package: 5 mm High Flux
Lens: Clear
Lumen: 10 Lumen
Maximum Forward Voltage: 2.5V
Millicandela: 5500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Power Consumption: 0.088 Watts
Reverse Voltage: 4V
Storage Temperature: -40~+100 °C
Viewing Angle: 90 degree
Wavelength: 630 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.27" (1cm) x 0.27" (1cm)
All specifications are subject to change without notice.
