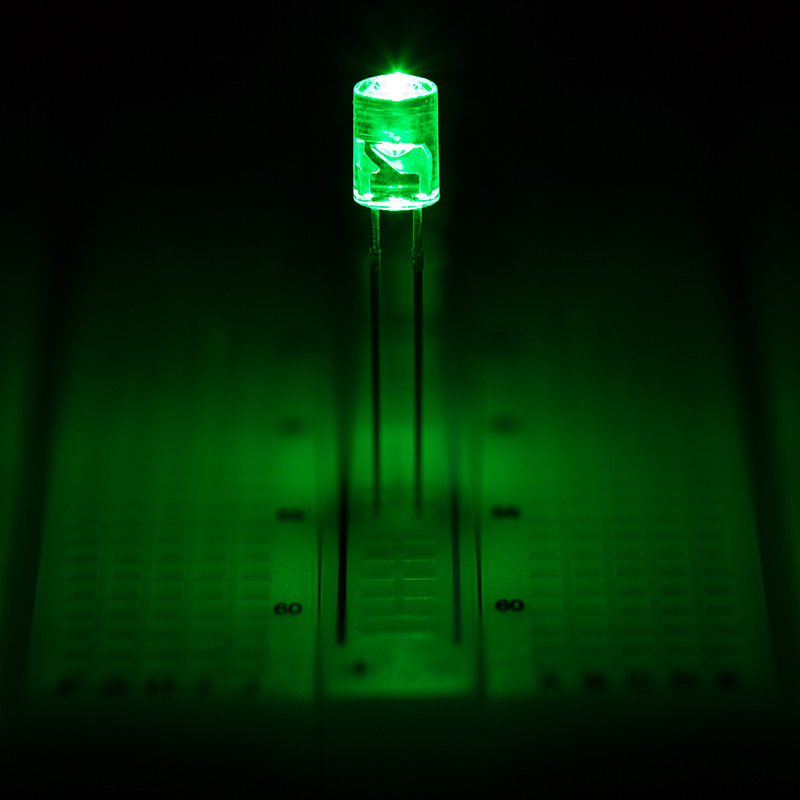

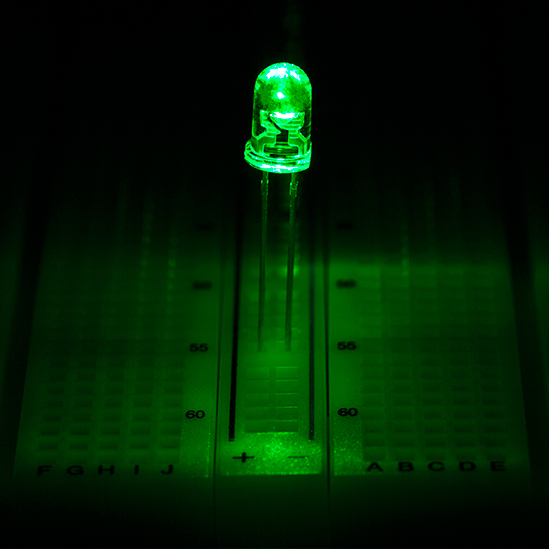

5mm Green LED - 524 nm - T1 3/4 LED w/ 23 Degree Viewing Angle
5mm through hole component LED in green. Features 5,000 millicandela, 524nm wavelength, and a 23 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 30 mA
Forward Voltage: 3.5V
LED Color: Green
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 0.6 Lumen
Maximum Forward Voltage: 4V
Millicandela: 5000mcd
Operating Temperature: -25~+80 °C (-13~+176 °F)
Peak Forward Current: 70mA
Power Consumption: 0.11 Watts
Power Dissipation: 120mW
Reverse Current: 100mA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Tube Diameter: T1-3/4
Viewing Angle: 23 degree
Wavelength: 524 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
