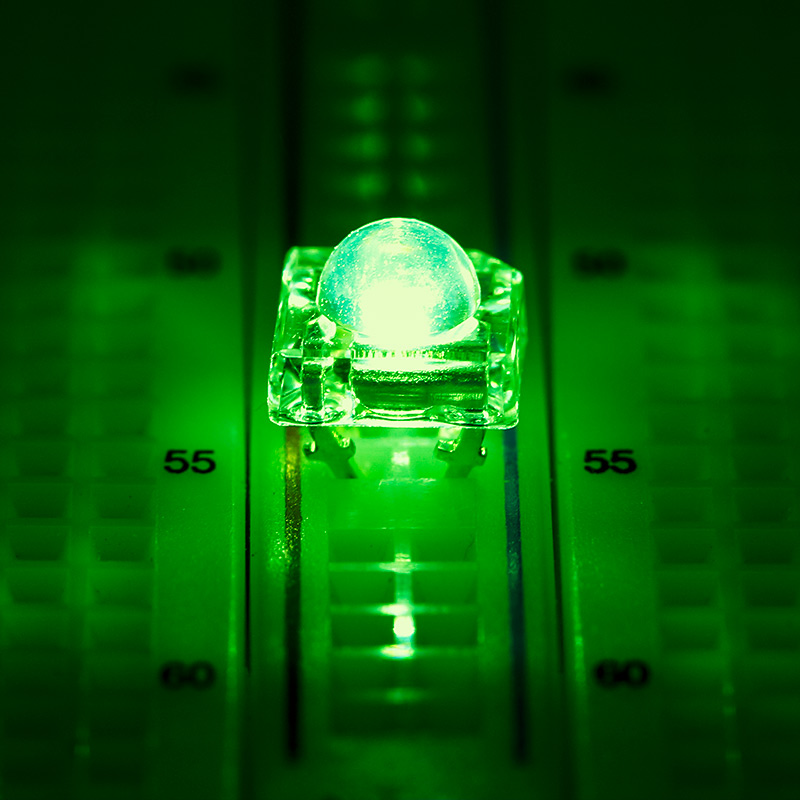

5mm Green High Flux LED - 525 nm - 90 Degree Viewing Angle
5mm High Flux Green LED. Features 525nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.2V
LED Color: Green
LED Package: 5 mm High Flux
Lens: Clear
Lumen: 10 Lumen
Maximum Forward Voltage: 3.5V
Millicandela: 5500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Power Consumption: 0.064 Watts
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Viewing Angle: 90 degree
Wavelength: 525 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.27" (1cm) x 0.27" (1cm)
All specifications are subject to change without notice.
