    5mm Diffused Tri-Color LED - RGB T1 3/4 LED w/ 15 Degree Viewing Angle

      (7 Reviews) | Write a review
    SKU: RL5-RGB-DCC
    Discontinued
    Starting at: $0.18
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

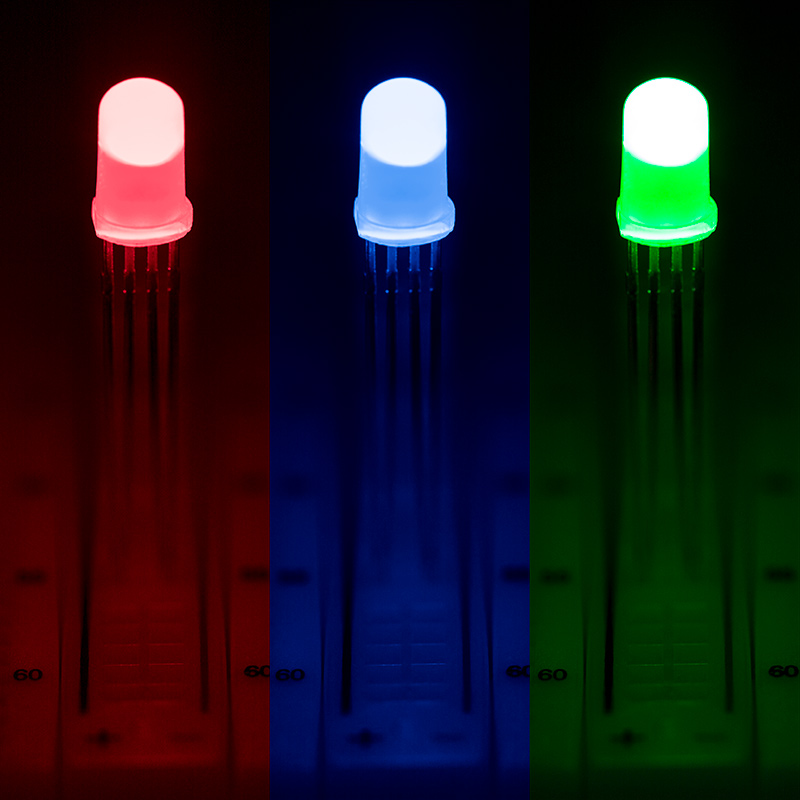

    5mm through hole RGB LED at 1000mcd to 5,000mcd with 15 degree viewing angle. Red peak emission wavelength at 630nm. Green peak wavelength emission at 525nm. Blue peak emission wavelength at 472nm. See spectral graph for actual wavelength measurement. Available in an anode or cathode. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

    Specifications
    Continuous Forward Current:    20 mA
    Forward Voltage:    2.0V
    LED Color:     RGB
    LED Package:    5 mm (T-1 3/4)
    Lens:    Diffused
    Maximum Forward Voltage:    2.6V
    Millicandela:    1000-5000mcd
    Operating Temperature:    -40~+85 °C (-40~+185 °F)
    Peak Forward Current:    50mA
    Power Consumption:    0.044 Watts
    Power Dissipation:    100mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Tube Diameter:    T1-3/4
    Viewing Angle:    15 degree
    Wavelength:    472 nm, 525 nm, 630 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
