5mm Cool White LED - 7300K - T1 3/4 LED w/ 15 Degree Viewing Angle

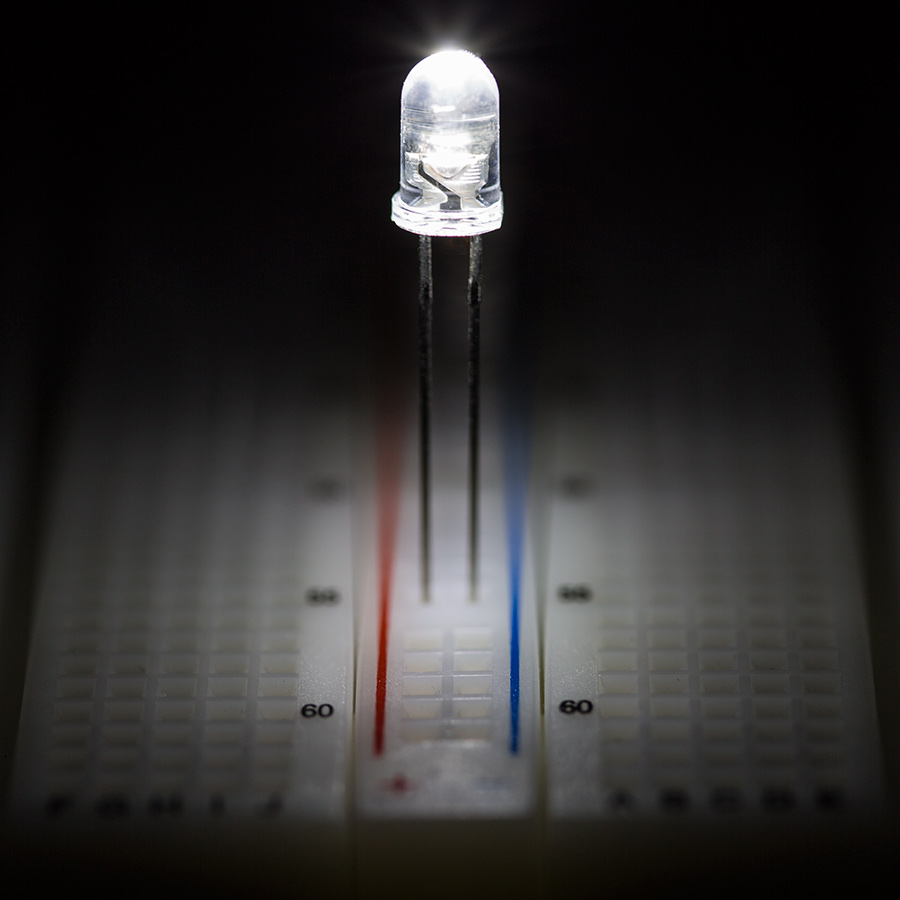

5mm through hole component LED in cool white. Features 10,000 millicandela, 7300K color temperature, and a 15 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
CCT Value: 7300K
Continuous Forward Current: 30 mA
Forward Voltage: 3.4V
LED Color: Cool White
LED Package: 5 mm (T-1 3/4)
Lens: Clear
Lumen: 0.7 Lumen, 5 Lumen
Maximum Forward Voltage: 4V
Millicandela: 10000mcd
Operating Temperature: -25~+80 °C (-13~+176 °F)
Peak Forward Current: 70mA
Power Consumption: 0.102 Watts
Power Dissipation: 120mW
Reverse Current: 100mA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Tube Diameter: T1-3/4
Viewing Angle: 15 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
