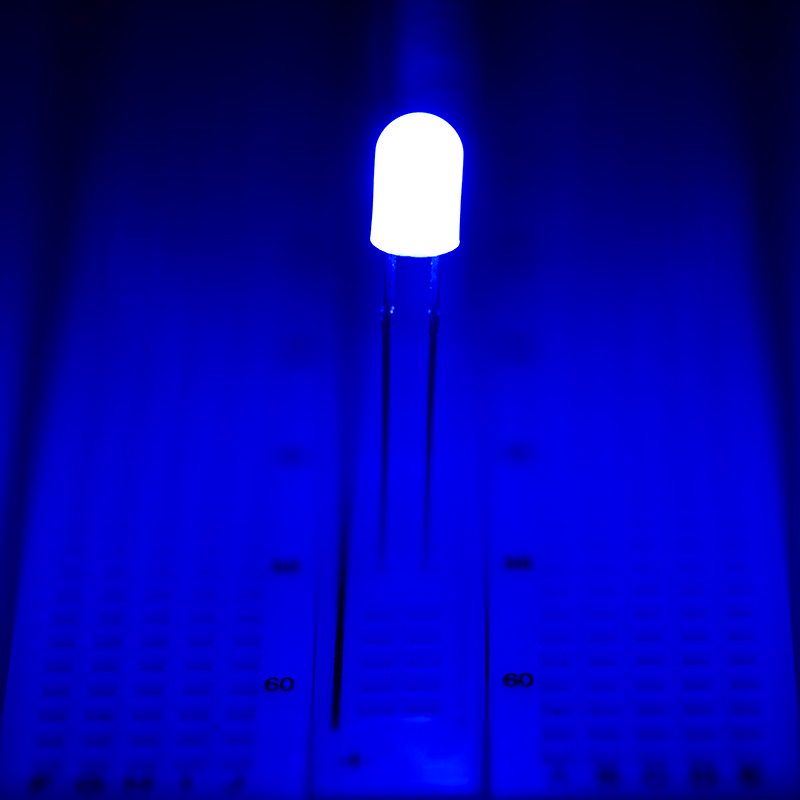

5mm Blue Through Hole LED - 462 nm - T1 3/4 LED w/ 360 Degree Viewing Angle
Blue through hole 5mm LED. Features 800 millilumens and 462nm wavelength. This unique LED has a diffuser coating which emits blue light in all directions, 360 degrees around, from end and bottom, just like a filament bulb. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.0V
LED Color: Blue
LED Package: 5 mm (T-1 3/4)
Lens: Diffused
Lumen: 0.8 Lumen
Maximum Forward Voltage: 3.2V
Millicandela: 100mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 100mA
Power Consumption: 0.06 Watts
Reverse Current: 10µA
Reverse Voltage: 5V
Storage Temperature: -30~+100 °C
Tube Diameter: T1-3/4
Viewing Angle: 360 degree
Wavelength: 462 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
