    5mm Blue LED - 470 nm - T1 3/4 LED w/ 30 Degree Viewing Angle

      (6 Reviews) | Write a review
    SKU: RL5-B2430
    Discontinued
    Starting at: $0.18
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

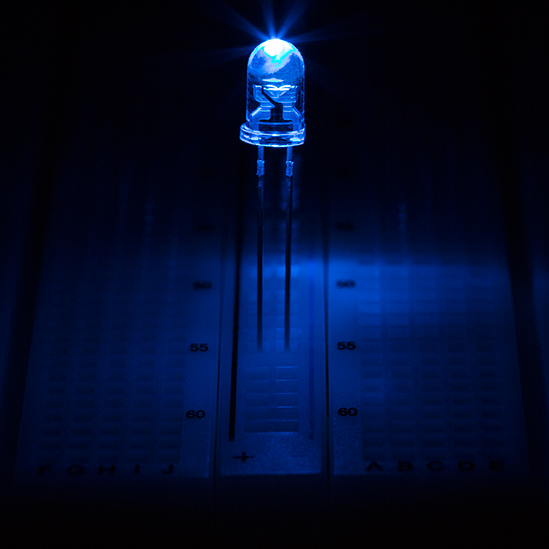

    Blue 5mm LED with through hole mounting. Features 470nm wavelength, 2,400mcd, and a 30 degree viewing angle. See spectral graph for actual wavelength measurement. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate them. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

    Specifications
    Continuous Forward Current:    20 mA
    Forward Voltage:    3.5V
    LED Color:     Blue
    LED Package:    5 mm (T-1 3/4)
    Lens:    Clear
    Lumen:    0.5 Lumen
    Maximum Forward Voltage:    4V
    Millicandela:    2400mcd
    Operating Temperature:    -40~+85 °C (-40~+185 °F)
    Peak Forward Current:    50mA
    Power Consumption:    0.07 Watts
    Power Dissipation:    100mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Tube Diameter:    T1-3/4
    Viewing Angle:    30 degree
    Wavelength:    470 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.39" (1cm) x 0.24" (1cm) x 0.24" (1cm)
