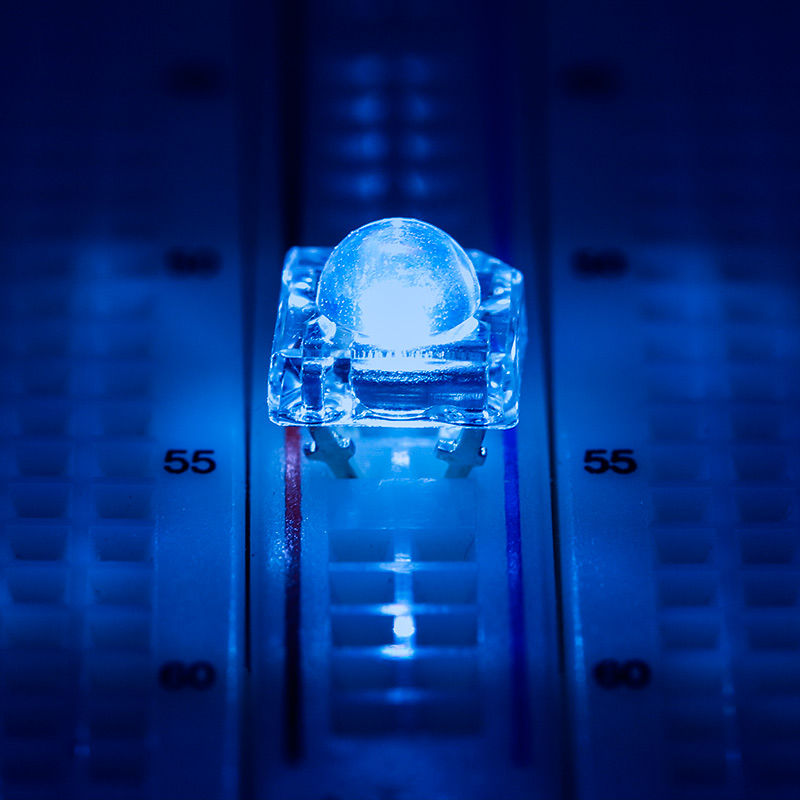

5mm Blue High Flux LED - 465 nm - 90 Degree Viewing Angle
5mm High Flux blue LED. Features 465nm wavelength, 5,500mcd, and 90 degree viewing angle. 7.62mm square with 5mm diameter dome. Clear 4.95mm low profile package. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 3.2V
LED Color: Blue
LED Package: 5 mm High Flux
Lens: Clear
Lumen: 10 Lumen
Maximum Forward Voltage: 3.5V
Millicandela: 5500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Power Consumption: 0.064 Watts
Reverse Voltage: 5V
Storage Temperature: -40~+100 °C
Viewing Angle: 90 degree
Wavelength: 465 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.27" (1cm) x 0.27" (1cm)
All specifications are subject to change without notice.
