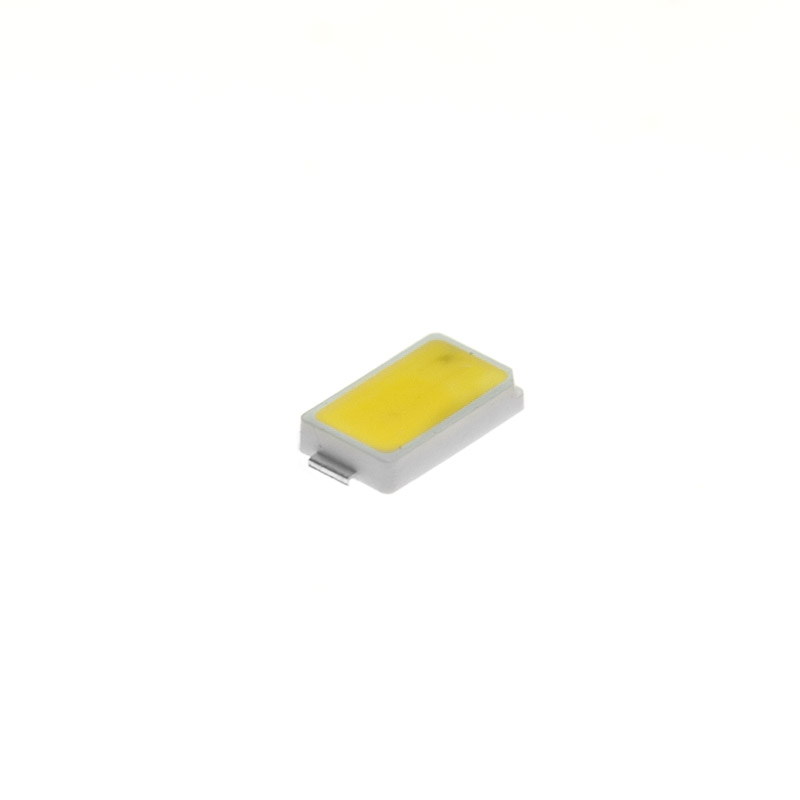

5630 SMD LED - 2600K High CRI Warm White Surface Mount LED w/120 Degree Viewing Angle
Use this powerful Samsung 5630 SMD LED Component with pick-and-place machines and for applications that require a high color-rendering index (CRI), such as project prototypes, computer case lighting, case modding, circuit board lights, indicator lights, custom light strip building, and monitor or TV backlighting. Consuming only 0.2 watts of power, the energy-efficient LED component produces 8,900 millicandelas (28 lumens) and has a high CRI of 92. The LED component emits a wide 120° beam of warm white (2600K) illumination and has a forward voltage of 2.85V. Part number: SPMWHT541MD7WAW0S0. Also available in Natural White.
Specifications
CCT Value: 2600K
Continuous Forward Current: 65 mA
CRI: 92 CRI
Forward Voltage: 2.8V ~ 2.9V
LED Color: Warm White
LED Package: 5.6mm x 3mm
LED Type: 5630 SMD
Lumen: 28 Lumen
Maximum Forward Voltage: 3.1V
Millicandela: 8900mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 180mA
Reverse Voltage: 0.7 ~ 1.2 V
Standards And Certifications: RoHS Compliant
Storage Temperature: -40~+120 °C
Viewing Angle: 120 degree
Package Weight: 1oz (0.03kg)
Package Dimensions: 1" (3cm) x 1" (3cm) x 1" (3cm)
All specifications are subject to change without notice.
