    5050 SMD LED - RGB/Warm White Surface Mount LED w/ 120 Degree Viewing Angle

      (9 Reviews) | Write a review
    SKU: 5050-RGBWW
    Discontinued
    Starting at: $0.69
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

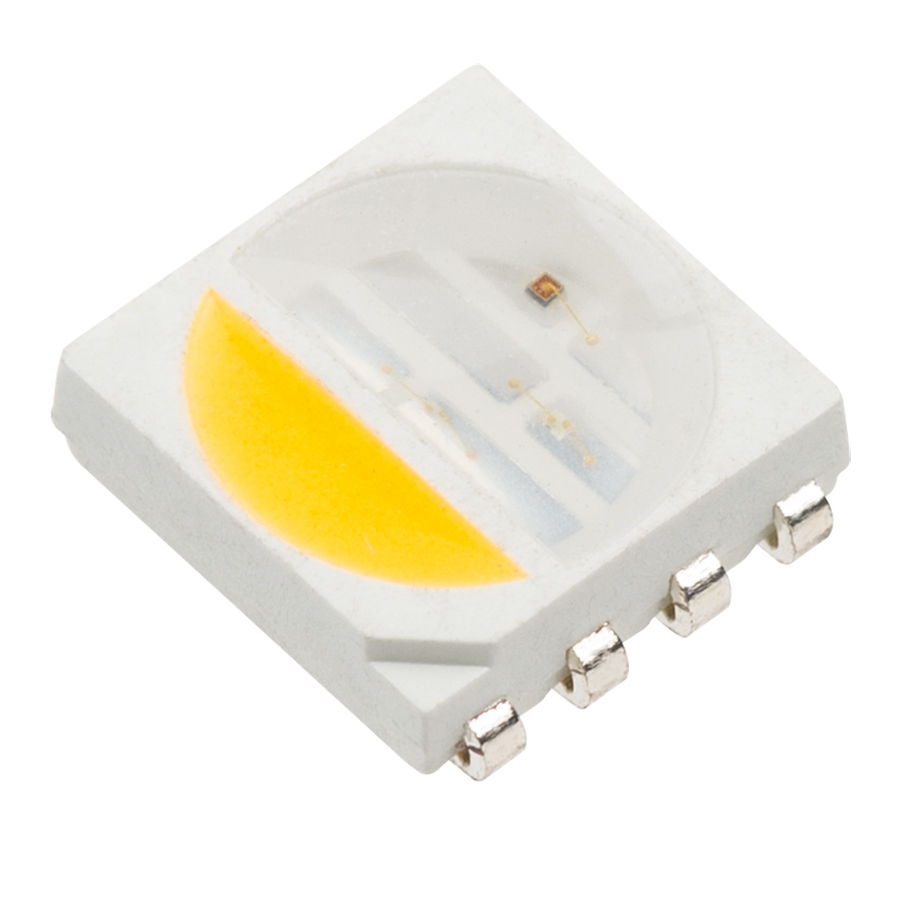

    This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The warm white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and warm white has a 3100K CCT. The LED emits a wide 120° viewing angle. Also available in RGB/Cool White, RGB/Natural White, and RGB.

    Specifications
    Continuous Forward Current:    4x20 mA
    Forward Voltage:    R:2.2 G:3.2 B:3.2 W:3.2
    LED Color:    RGB+Warm White
    LED Package:    5mm x 5mm
    LED Type:    5050 SMD
    Lumen:    7.5 Lumen
    Millicandela    2400mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Peak Forward Current:    4x100mA
    Power Consumption:    0.192 Watts
    Power Dissipation:    250mW
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Viewing Angle:    120 degree
    Wavelength:    465 nm, 520 nm, 625 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.
