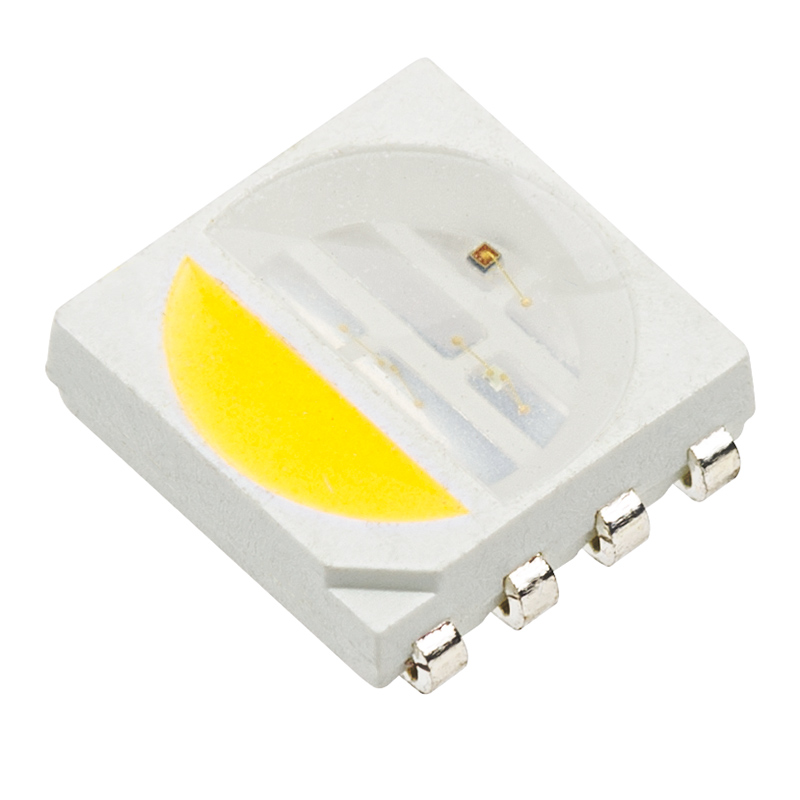

5050 SMD LED - RGB/Natural White Surface Mount LED w/ 120 Degree Viewing Angle
This 5050 4-Chip SMD LED is the cutting edge in LED color-changing and color-blending technology. The natural white chip adds a new dimension to the RGB color wheel and avoids the strange hues typically associated with standard RGB "white" colors. Use this compact SMD LED to blend your four source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively, and natural white has a 4200K CCT. The LED emits a wide 120° viewing angle. Also available in RGB/Cool White, RGB/Warm White, and RGB.
Specifications
Continuous Forward Current: 4x20 mA
Forward Voltage: R:2.2 G:3.2 B:3.2 W:3.2
LED Color: RGB+Natural White
LED Package: 5mm x 5mm
LED Type: 5050 SMD
Lumen: 7.5 Lumen
Millicandela: 2400mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 4x100mA
Power Consumption: 0.192 Watts
Power Dissipation: 250mW
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Viewing Angle: 120 degree
Wavelength: 465 nm, 520 nm, 625 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.
