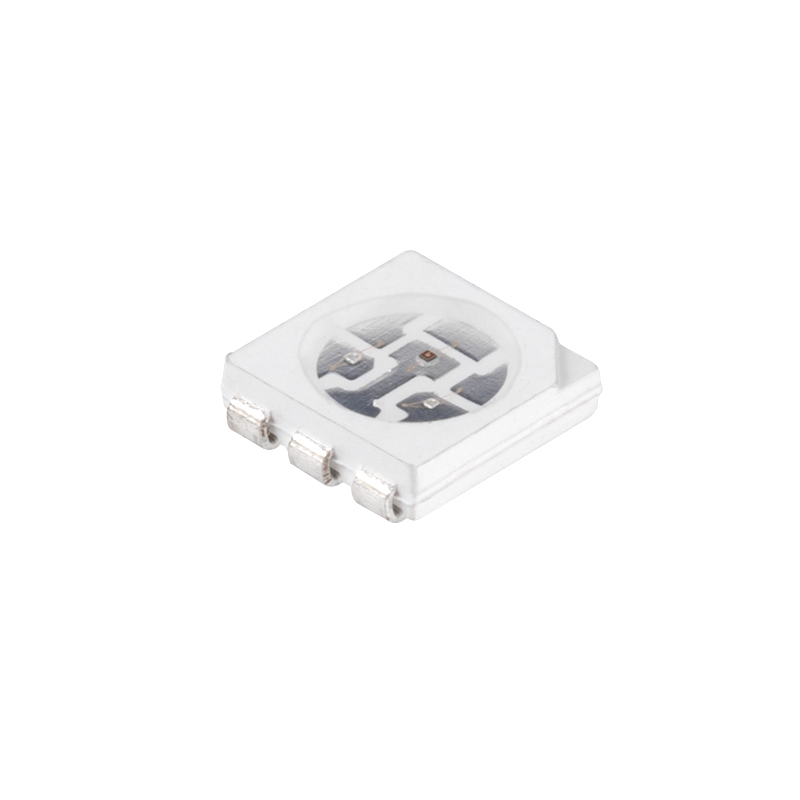

5050 SMD LED - RGB Surface Mount LED w/ 120 Degree Viewing Angle
This 5050 3-Chip SMD LED is the cutting edge in LED color-changing technology. Use this compact SMD LED to blend your 3 source colors while reducing hot-spots, glare, and shadows. Red, green, and blue chips have 625nm/520nm/465nm wavelengths respectively. The LED emits a wide 120° viewing angle. Also available in RGB/Natural White, RGB/Warm White, and RGB/Cool White.
Specifications
Continuous Forward Current: 3x20 mA
Forward Voltage: R:2.0 G:3.2 B:3.2
LED Color: RGB
LED Package: 5mm x 5mm
LED Type: 5050 SMD
Lumen: 3.14 Lumen
Millicandela: 1000mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 3x100mA
Power Consumption: 0.192 Watts
Power Dissipation: 3x120mW
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Viewing Angle: 120 degree
Wavelength: 465 nm, 520 nm, 625 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.
