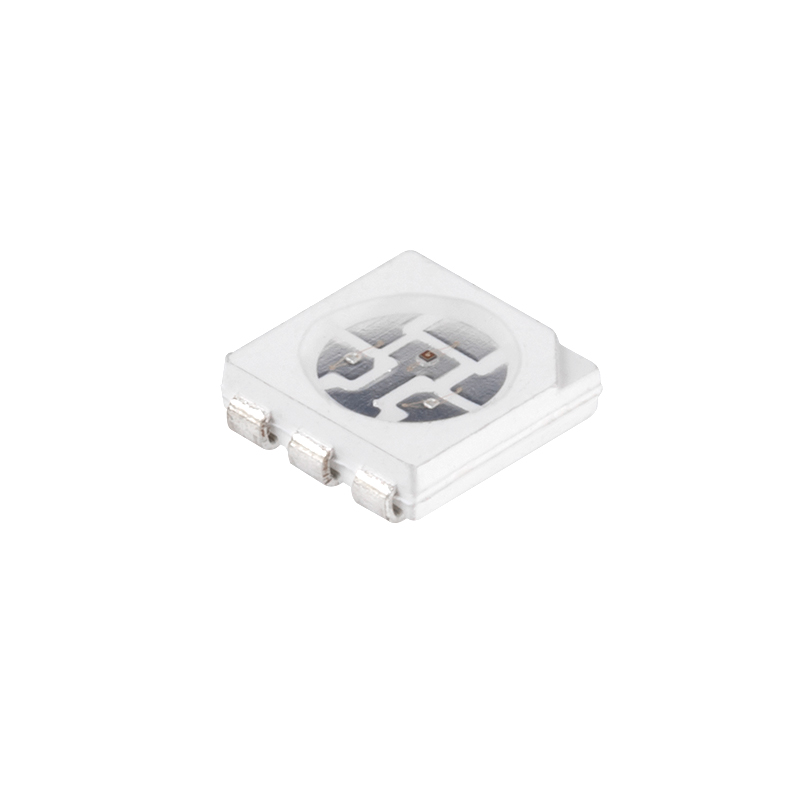

The 5mm 3 chip surface mount component LED in Red features a 625nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement.Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Also available in Green, Blue, and Yellow.

Specifications
Continuous Forward Current：    3x20 mA
Forward Voltage：    2.0V
LED Color：    Red
LED Package：    5mm x 5mm
LED Type：    5050 SMD
Lumen：    4 Lumen
Millicandela：    1200mcd
Operating Temperature：    -20~+80 °C (-4~+176 °F)
Peak Forward Current：    3x100mA
Power Consumption：    0.12 Watts
Power Dissipation：    3x120mW
Reverse Voltage：    5V
Storage Temperature：    -40~+85 °C
Viewing Angle：    120 degree
Wavelength：    625 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.
