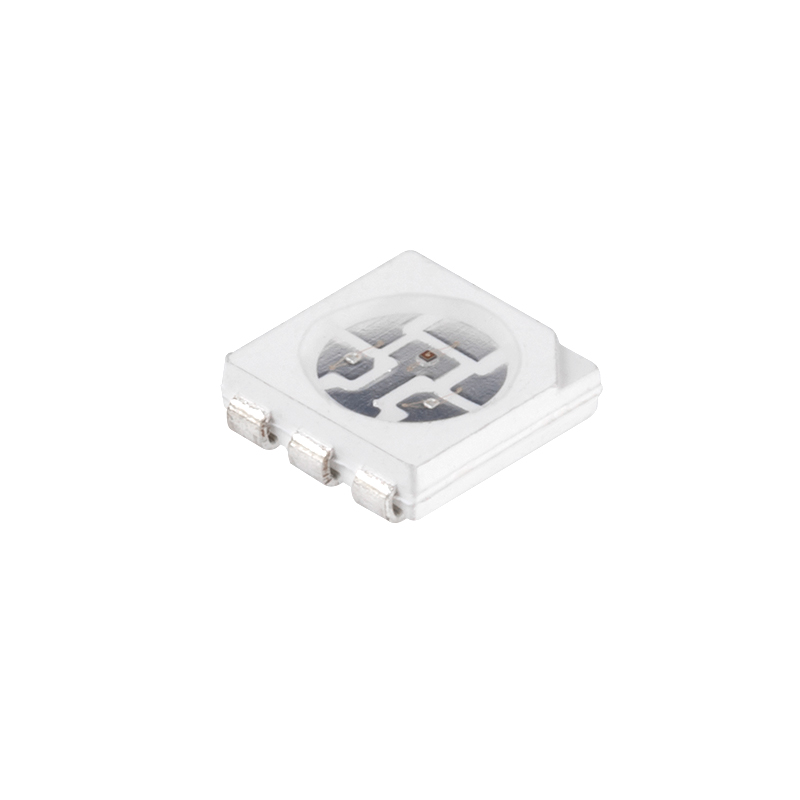

    5050 SMD LED - 465nm Blue Surface Mount LED w/120 Degree Viewing Angle

      (7 Reviews) | Write a review
    SKU: 5050-B1200
    Discontinued
    Starting at: $0.49
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    The 5mm 3 chip surface mount component LED in Blue features a 465 nm wavelength and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Also available in Green, Red, and Yellow.

    Specifications
    Continuous Forward Current:    3x20 mA
    Forward Voltage:    3.2V
    LED Color:    Blue
    LED Package:    5mm x 5mm
    LED Type:    5050 SMD
    Lumen:    4 Lumen
    Millicandela:    1200mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Peak Forward Current:    3x100mA
    Power Consumption:    0.192 Watts
    Power Dissipation:    3x120mW
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Viewing Angle:    120 degree
    Wavelength:    465 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.
