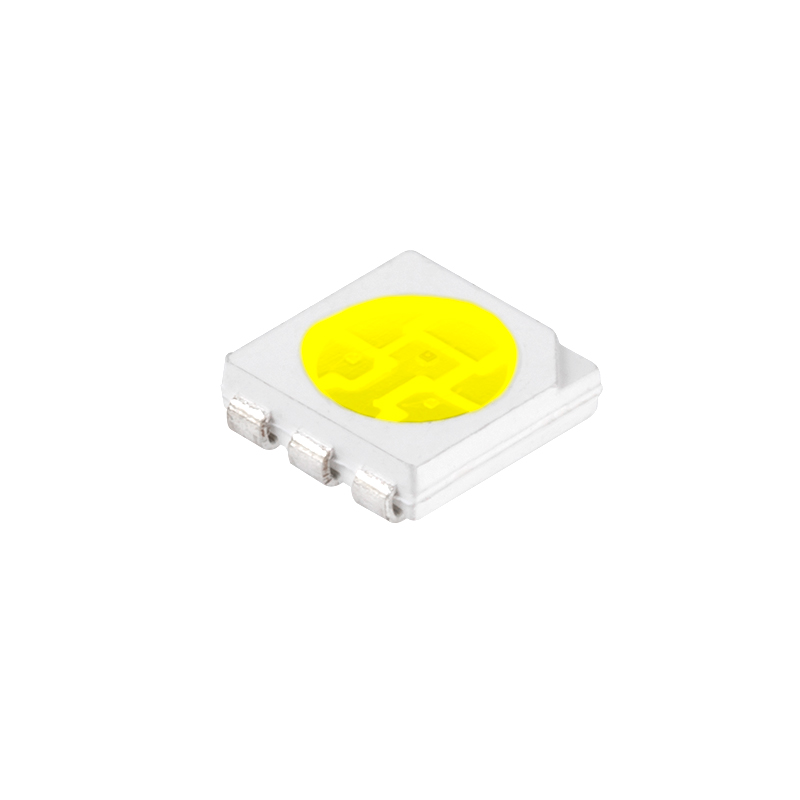

    5050 SMD LED - 10500K Cool White Surface Mount LED w/120 Degree Viewing Angle

      (0 Reviews) | Write a review
    SKU: 5050-CW6000
    Discontinued
    Starting at: $0.49
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

    This 5050 SMD 3 chip surface mount LED in Cool White features 19 lumens of 10500K color temperature and a 120 degree viewing angle. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Also available in Warm White and Pure White.

    Specifications
    CCT Value:    10500K
    Continuous Forward Current:    3x20 mA
    CRI:    85 CRI
    Forward Voltage:    3.2V
    LED Color:    Cool White
    LED Package:    5mm x 5mm
    LED Type:    5050 SMD
    Lumen:    19 Lumen
    Maximum Forward Voltage:    3.4V
    Millicandela:    6000mcd
    Operating Temperature:    -20~+80 °C (-4~+176 °F)
    Peak Forward Current:    3x100mA
    Power Consumption:    0.192 Watts
    Power Dissipation:    3x120mW
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Viewing Angle:    120 degree
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
    All specifications are subject to change without notice.
