    3mm Yellow LED - 588nm - T1 Through Hole LED w/ 45 Degree Viewing Angle

      (10 Reviews) | Write a review
    SKU: RL3-Y4545
    Discontinued
    Starting at: $0.49
    • 30 Days Return
    • 5 Years Warranty
    Add to Wishlist
    Deliver between Sun,Dec,22 and Sat,Dec,28. order with 2days,9hrs and 31 min.

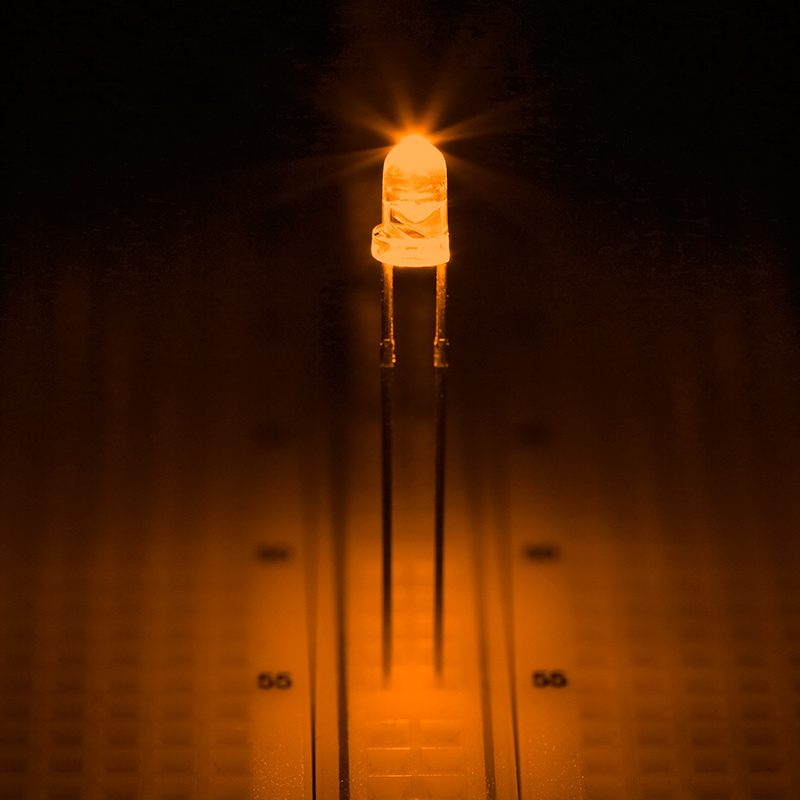

    This yellow LED is designed for models, sign lighting, indicator lights, and other small projects. It has an output of 4,500mcd and a dominant wavelength of 588nm. The T1 through-hole 3mm LED has a clear lens and emits a 45° beam of illumination. It has a typical forward voltage of 2.2V at 20mA and a peak forward current of 100mA. Use of a resistor or other current-limiting device is crucial to prevent premature LED failure. Component LEDs are sensitive electronic devices and require some knowledge of electronic circuits to operate. Price listed is per unit; however, bulk discounts are available and are automatically applied to your order.

    Specifications
    Continuous Forward Current:    20 mA
    Forward Voltage:    2.2V
    LED Color:     Yellow
    LED Package:    3 mm (T-1)
    Lens:    Clear
    Lumen:    2 Lumen
    Maximum Forward Voltage:    2.5V
    Millicandela:    4500mcd
    Operating Temperature:    -40~+85 °C (-40~+185 °F)
    Peak Forward Current:    50mA
    Power Consumption:    0.04 Watts
    Power Dissipation:    100mW
    Reverse Current:    10µA
    Reverse Voltage:    5V
    Storage Temperature:    -40~+85 °C
    Tube Diameter:    T-1
    Viewing Angle:    45 degree
    Wavelength:    588 nm
    Package Weight: 0.01oz (0kg)
    Package Dimensions: 0.24" (1cm) x 0.16" (0cm) x 0.16" (0cm)
