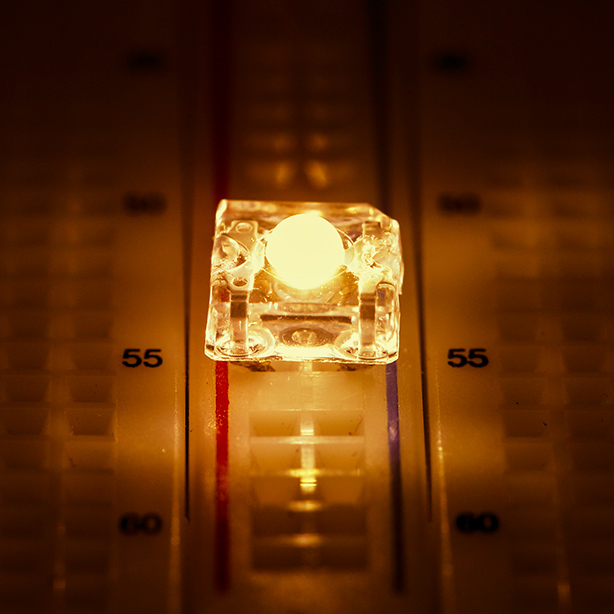

3mm Yellow High Flux LED - 590 nm - 70 Degree Viewing Angle
3mm High Flux Yellow LED featuring a 590nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.
Specifications
Continuous Forward Current: 20 mA
Forward Voltage: 2.2V
LED Color: Yellow
LED Package: 3 mm High Flux
Lens: Clear
Lumen: 6 Lumen
Maximum Forward Voltage: 2.6V
Millicandela: 5500mcd
Operating Temperature: -40~+85 °C (-40~+185 °F)
Peak Forward Current: 100mA
Power Consumption: 0.088 Watts
Reverse Voltage: 4V
Storage Temperature: -40~+100 °C
Viewing Angle: 70 degree
Wavelength: 590 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.25" (1cm) x 0.25" (1cm)
All specifications are subject to change without notice.
