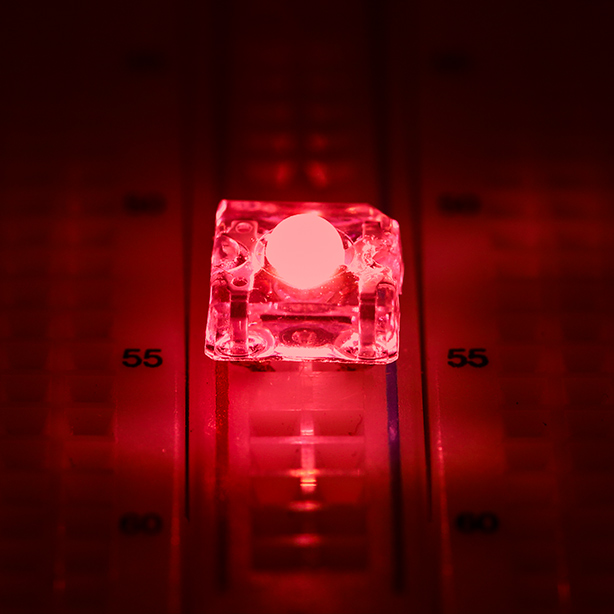

3mm High Flux Red LED featuring a 630nm wavelength, 5,500mcd, and 70 degree viewing angle. 7.62mm square with 3mm diameter dome. Clear 4.4mm low profile package. See spectral graph for actual wavelength measurement. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order.

Specifications
Continuous Forward Current:    20 mA
Forward Voltage:    2.2V
LED Color:     Red
LED Package:    3 mm High Flux
Lens:    Clear
Lumen:    6 Lumen
Maximum Forward Voltage:    2.4V
Millicandela:    5500mcd
Operating Temperature:    -40~+85 °C (-40~+185 °F)
Peak Forward Current:    100mA
Reverse Voltage:    4V
Storage Temperature:    -40~+100 °C
Viewing Angle:    70 degree
Wavelength:    630 nm
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.31" (1cm) x 0.25" (1cm) x 0.25" (1cm)
All specifications are subject to change without notice.
