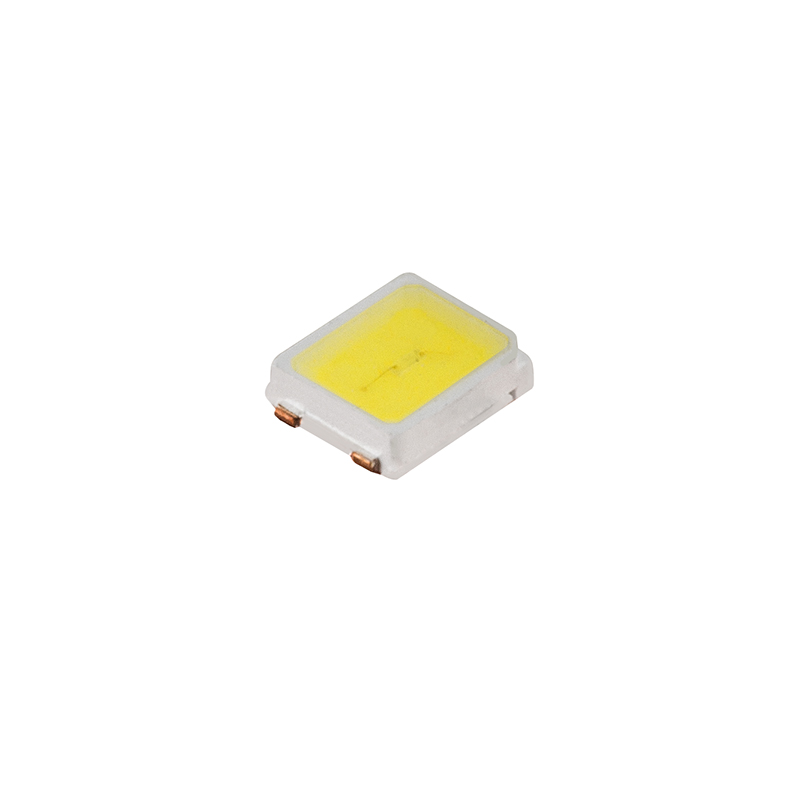

2835 SMD LED - 6000K Cool White Surface Mount LED w/120 Degree Viewing Angle
This Epistar 2835 SMD surface mount component LED in Cool White features 25 lumens of 6000K color temperature, 80 CRI, and a 120 degree viewing angle. Price listed is per unit, however, bulk discounts are available and are automatically applied to your order. Also available in Natural White and Warm White.
Specifications
CCT Value: 6000K
CRI: 80 CRI
Continuous Forward Current: 60mA
Forward Voltage: 3.2V
LED Color: Cool White
LED Package: 2.8mm x 3.5mm
LED Type: 2835 SMD
Lumen: 25 Lumen
Maximum Forward Voltage: 3.4V
Millicandela: 8000mcd
Operating Temperature: -20~+80 °C (-4~+176 °F)
Peak Forward Current: 180mA
Power Consumption: 2.2 Watts
Power Dissipation: 0.2W
Reverse Voltage: 5V
Storage Temperature: -40~+85 °C
Viewing Angle: 120 degree
Package Weight: 0.01oz (0kg)
Package Dimensions: 0.47" (1cm) x 0.17" (0cm) x 0.17" (0cm)
All specifications are subject to change without notice.
