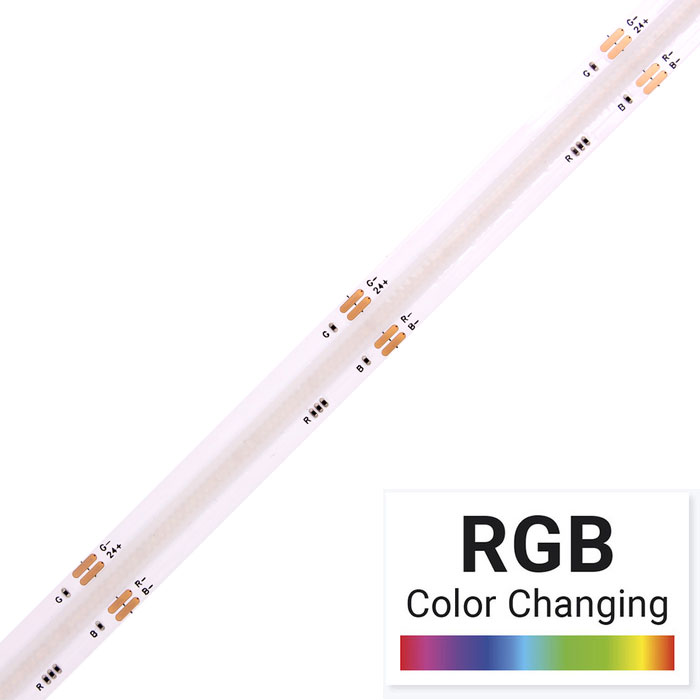

COB series LED Strip Light uses chip-on-board technology to create continuous colorful RGB lighting. The high density of LEDs produces a seamless linear light without the need of a diffused cover. Dotless illumination is ideal for reflective surfaces such as granite countertops, tile floors, and more. Flexible construction and 3M™ adhesive backing make it easy to install, including on round surfaces and edges. Pair with a controller (sold separately) to customize color tone and settings.

Applications and Use:

• These strips are installed in a wide variety of applications including:
• Color controllable cove lighting
• Signage
• Backlighting
• Edge lighting
• Cabinets, shelves lighting
• Accent lighting locations
• Under cars and motorcycles
• Store display lighting
• Under cabinet lighting
• Above cabinet lighting
• Hotel lobbies

Product Details:

• 3M™ adhesive backing for surface mounting
• Max Run: 16.4ft (5m)
• New COB Packing technology in the flexible PCB
• Dot free without cover
• Strip width measures 10mm
• 0-100% dimmable
• 180° beam angle
• 4-wire pigtail connection
• Cuttable segment length: 1.97 in. (50 mm)
• UL Listed

5 year warranty

Specifications
Certifications/Compliance:    UL Listed
Dimmable:    Yes
Environmental Rating:     Non-Weatherproof IP20
Input Connection Type:    Pigtail
LED Beam Angle:     180°
LED Color:    RGB
LED Density:     256 LEDs/ft (840 LEDs/m)
LED Type:    COB (flexible)
LEDs per Segment:    63
Length:    16.4ft (5m)
Max Run:     Up to 16.4ft (5m)
Minimum Cut Length:    50mm (1.97in)
Operating Temperature:    -20~+40 °C (-4~+104 °F)
Operating Voltage:     24 VDC
Power Consumption:    75 Watts
Product Weight:    0lb 6.4oz (0.18kg)
Rated Life (L70):    30000 Hours
Strip Width:    10mm (0.39in)
Type:    Flexible Light Strips
Wattage per Foot:    4.5 W/ft
Wire Gauge:    22 AWG
Wire Length:    18.5in(47cm)
Package Weight: 6.4oz (0.18kg)
Package Dimensions: 9.38" (24cm) x 8.5" (22cm) x 0.5" (1cm)
All specifications are subject to change without notice.

Should you select 12V or 24V?
Depends on your application. The main difference between the two is the fact that the 24v strips can be ran for longer distances than the 12v strips can due to Voltage Drop. Voltage drop is the gradual decrease in voltage along a circuit. If your project requires a very long run of LEDs, we would recommend the 24v strips. However, there are also many projects that 12v is required (automotive or marine applications). Please feel free to live chat with us, email us, or call us with questions.

Before noticing any unwanted color variations or dimming at the end of your run of lights, it is recommended that you run no more than 16' in series when using 12V or 32' in series when using 24V.
